Control Valve Assembly: Components

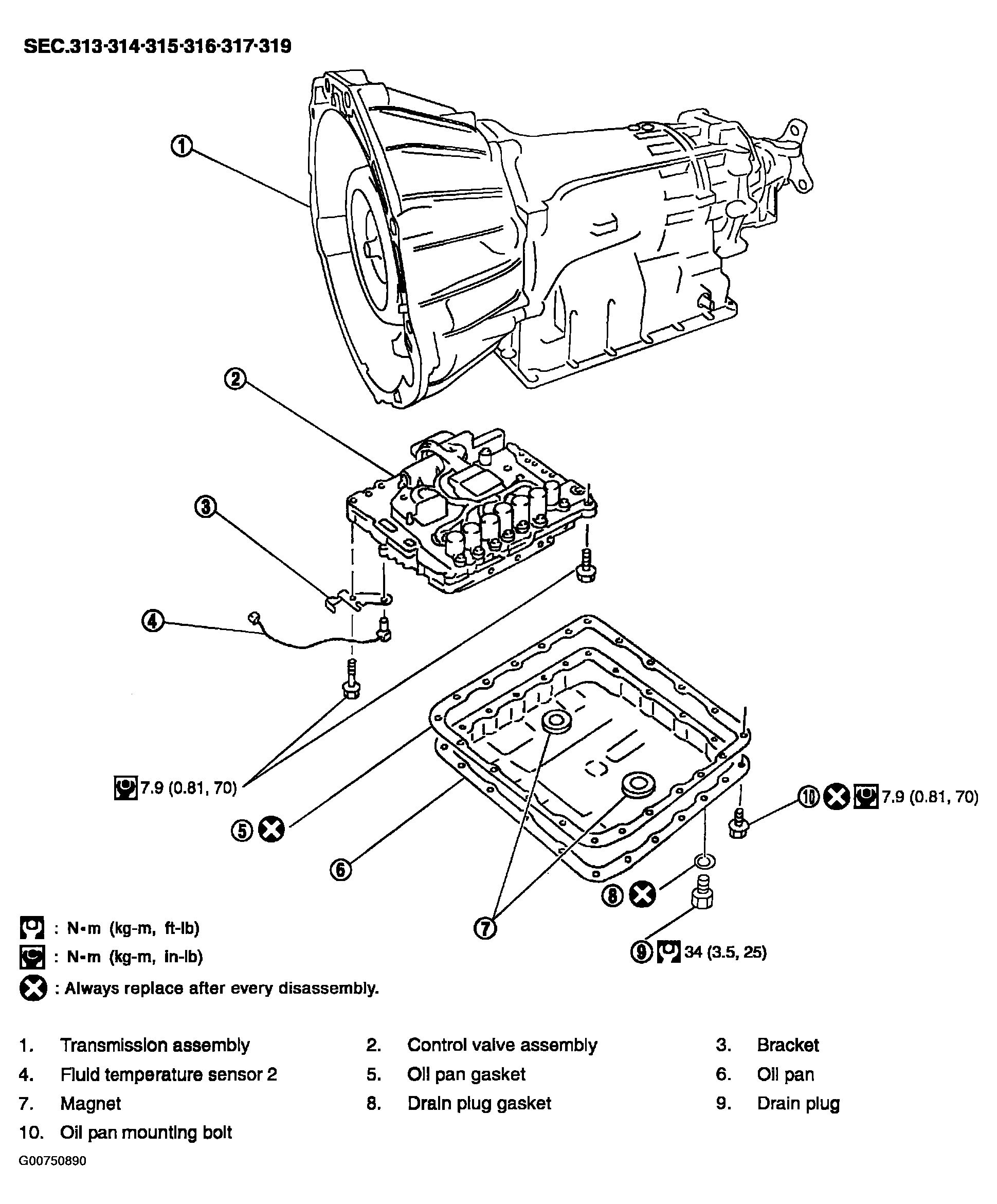

Fig 1: Locating Transmisison Control Valve Assembly
G00750890Courtesy of NISSAN MOTOR CO., U.S.A.
