Oil Channel
Oil Channel

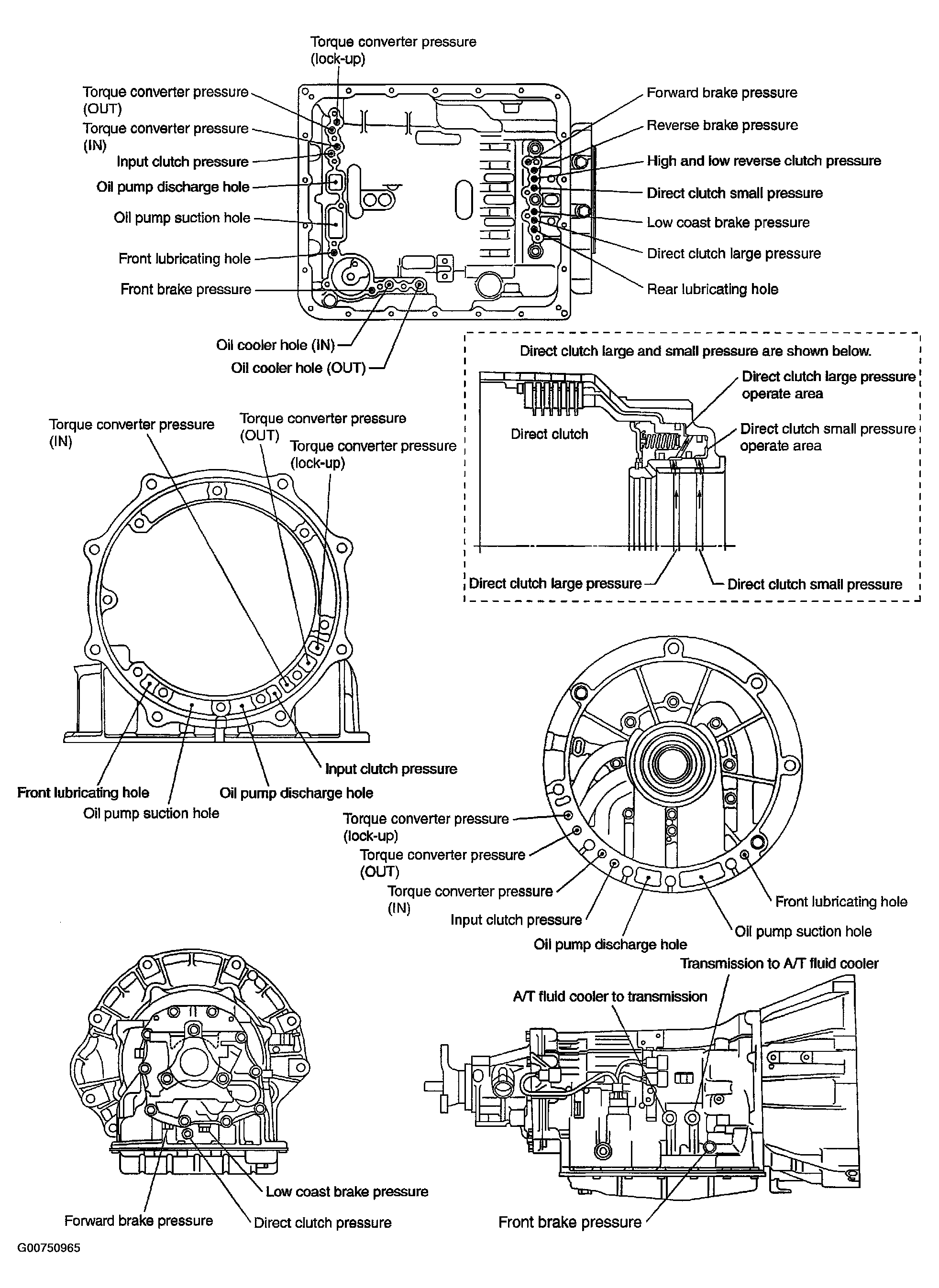

Fig 1: Locating Transmission Fluid Channels & Channel Function
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
