Direct Clutch: Assembly

Install drive plates, driven plates and retaining plate in direct clutch drum.
Using a flat-bladed screwdriver, install snap ring in direct clutch drum.

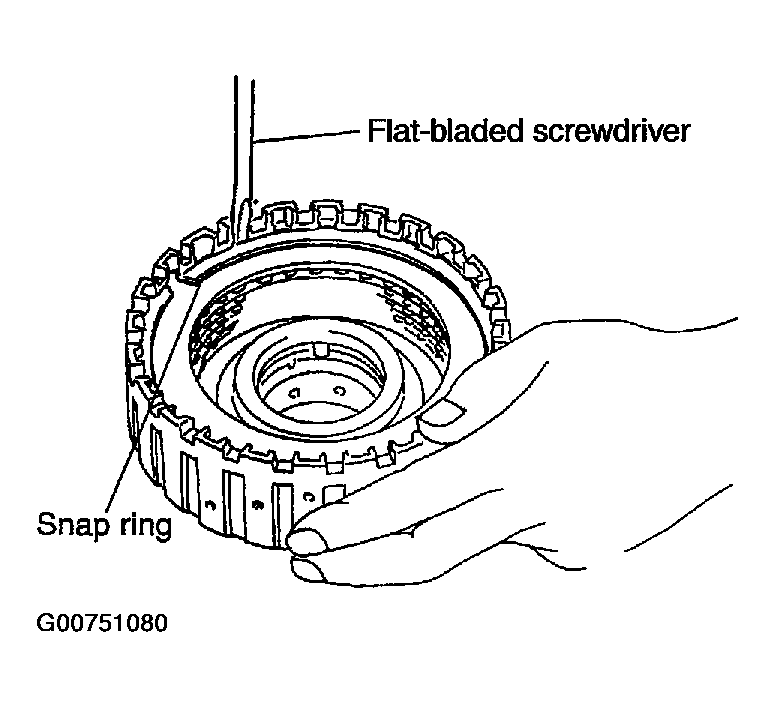

Fig 1: Removing & Installing Direct Clutch Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.
