Park/Neutral Position, Manual Mode, Brake And Throttle Position Switch Circuit
›
CONSULT-II Reference Value
CONSULT-II Reference Value

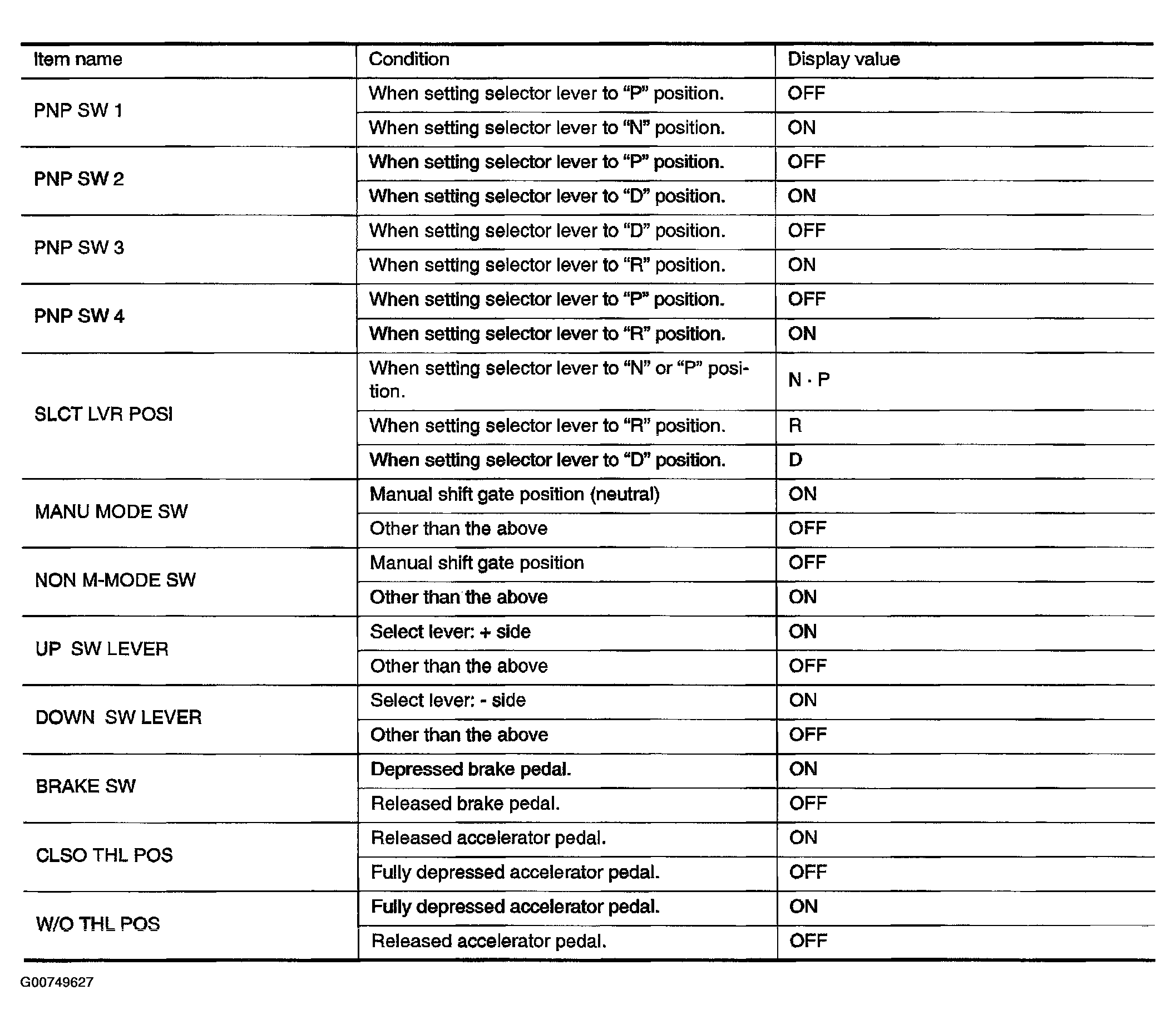

Fig 1: Consult-II Reference Value For Park/neutral Position, Manual Mode, Brake And Throttle Position Switch Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
