Removal And Installation: Notes

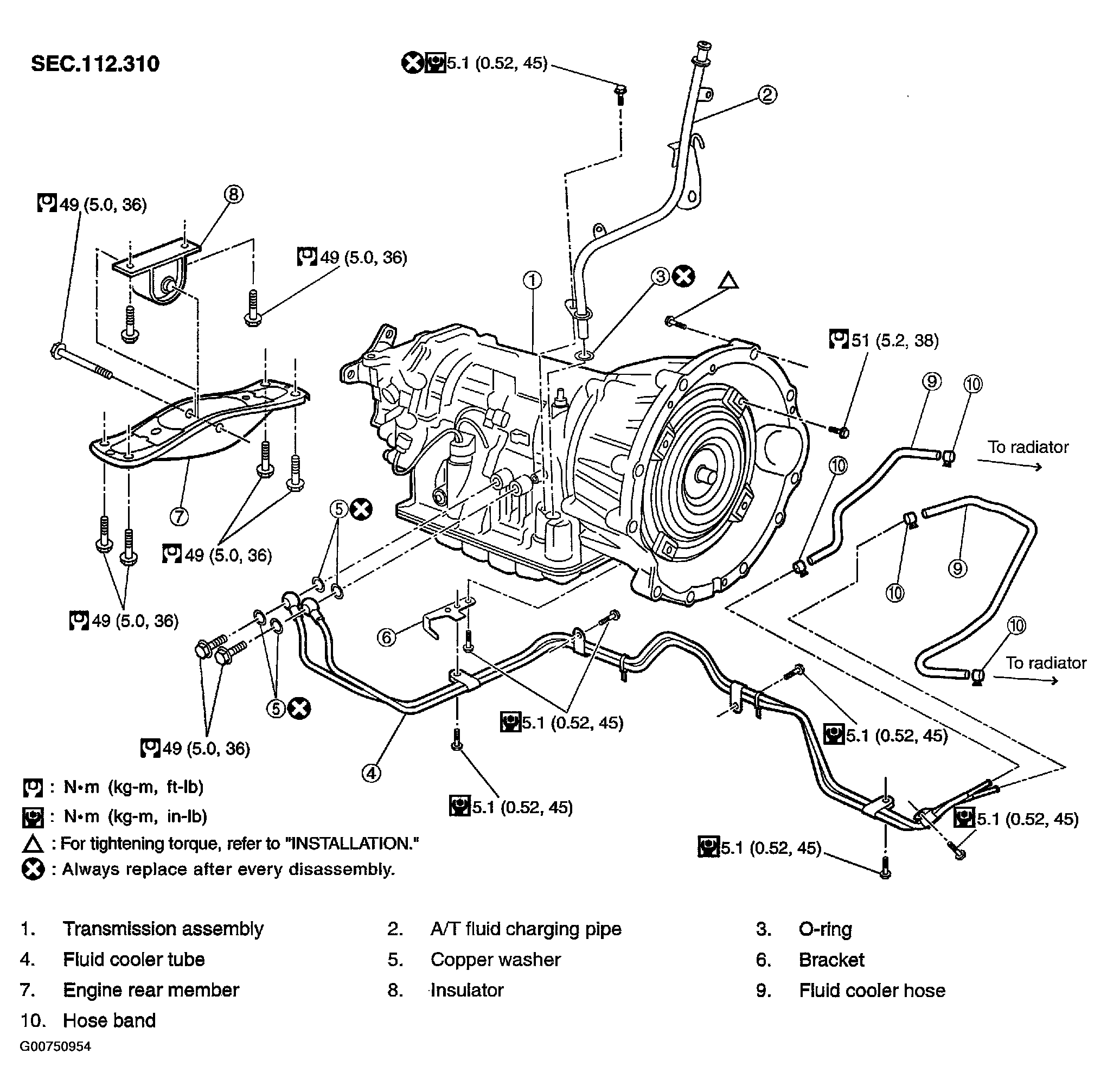

Fig 1: Identifying Transmission Removal & Installation Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
