DTC P1119: Radiator Coolant Temperature Sensor: Wiring Diagram

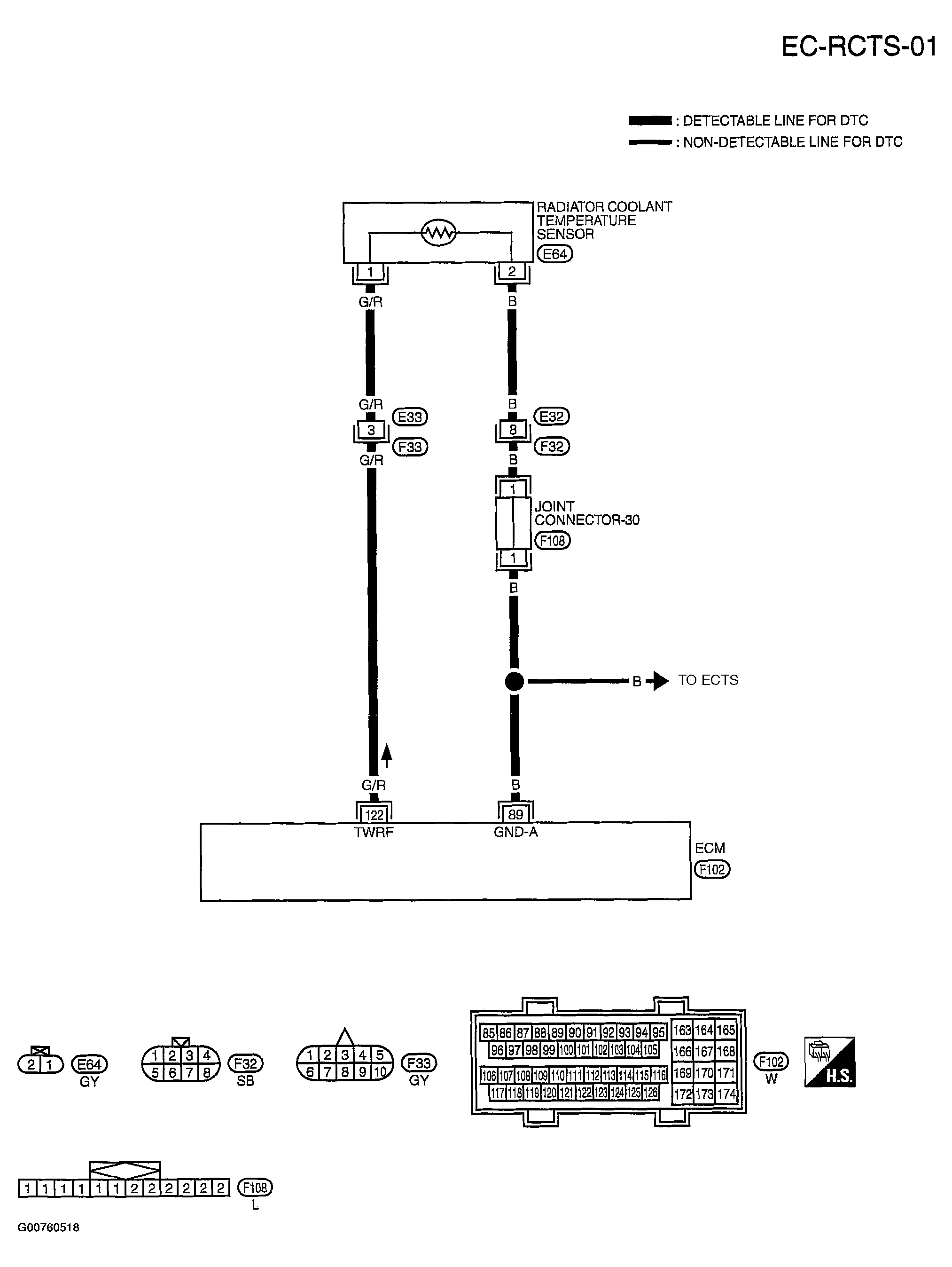

Fig 1: Circuit Diagram - EC-RCTS-01
G00760518Courtesy of NISSAN MOTOR CO., U.S.A.
