ASCD Brake Switch And Stop Lamp Switch

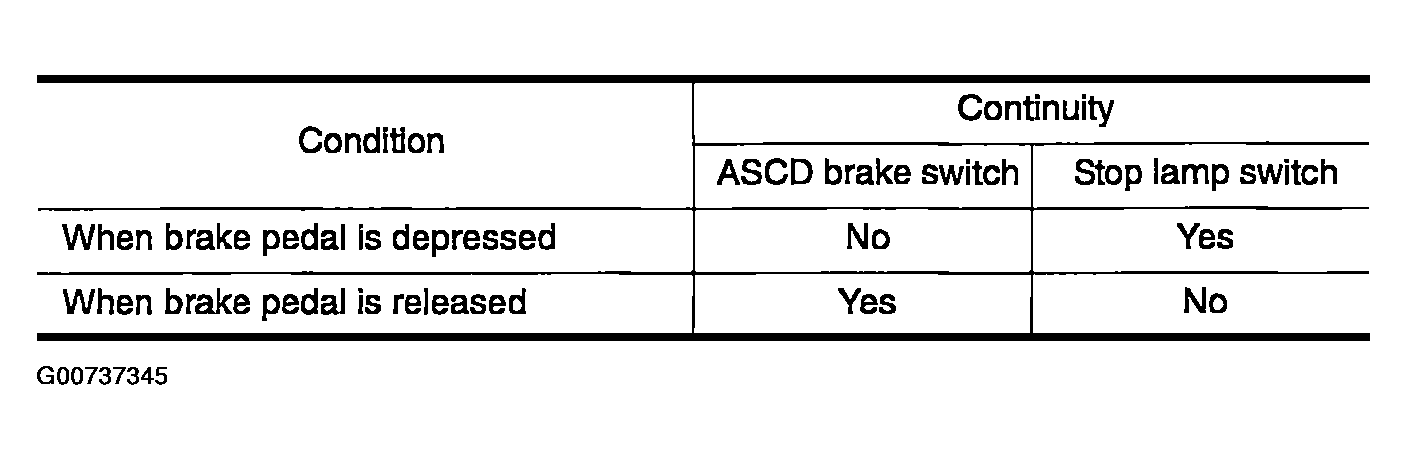

Fig 1: ASCD Brake Switch & Stop Lamp Switch Operation Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Check each switch after adjusting brake pedal - refer to BRAKE PEDAL .

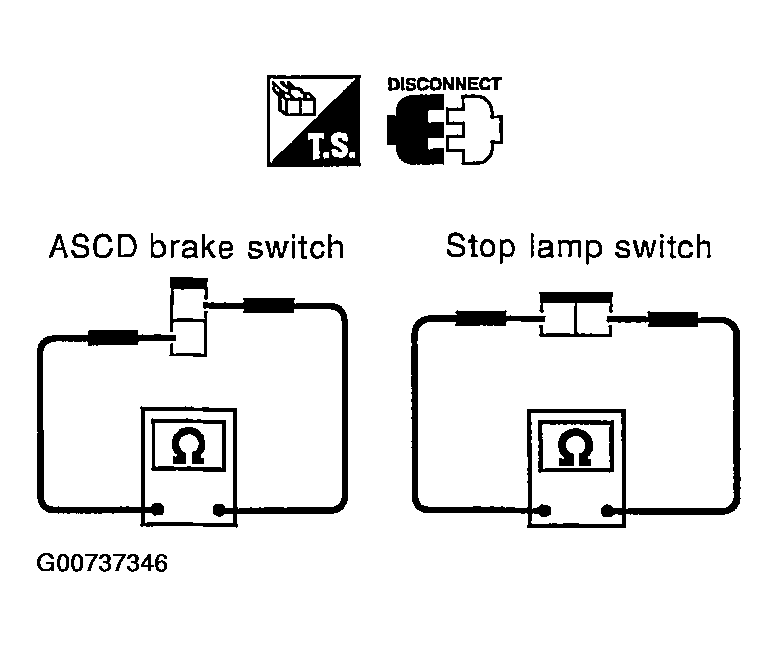

Fig 2: Checking ASCD Brake Switch & Stop Lamp Switch Operation

Courtesy of NISSAN MOTOR CO., U.S.A.
