Front Door Lock
›
Component Structure
Component Structure

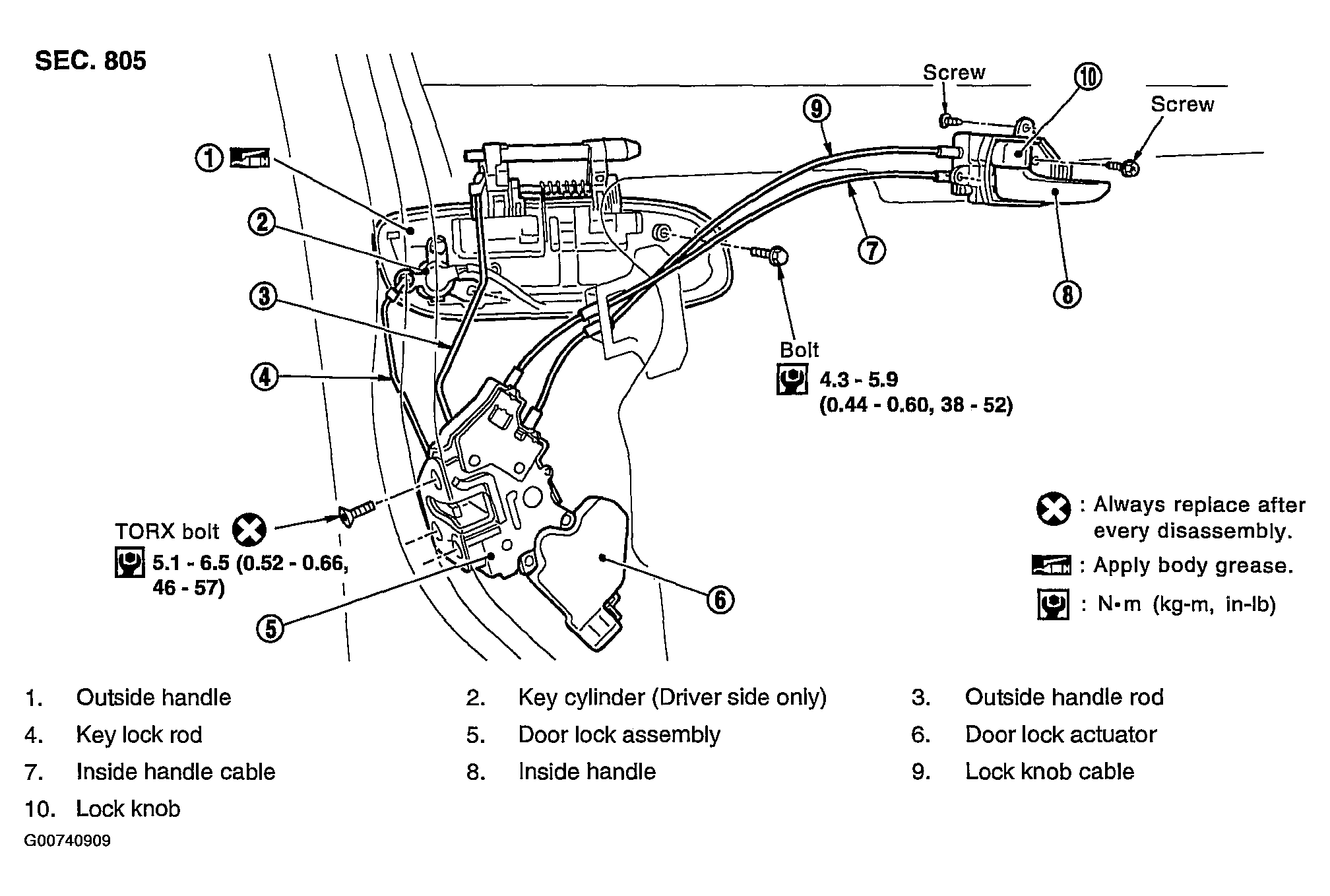

Fig 1: Component Structure
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
