Symptom Chart

Always check the "Work Flow" before troubleshooting. Refer to Work Flow .
Before carrying out the inspection on the following table, carry out the preliminary check.
Refer to Preliminary Check .

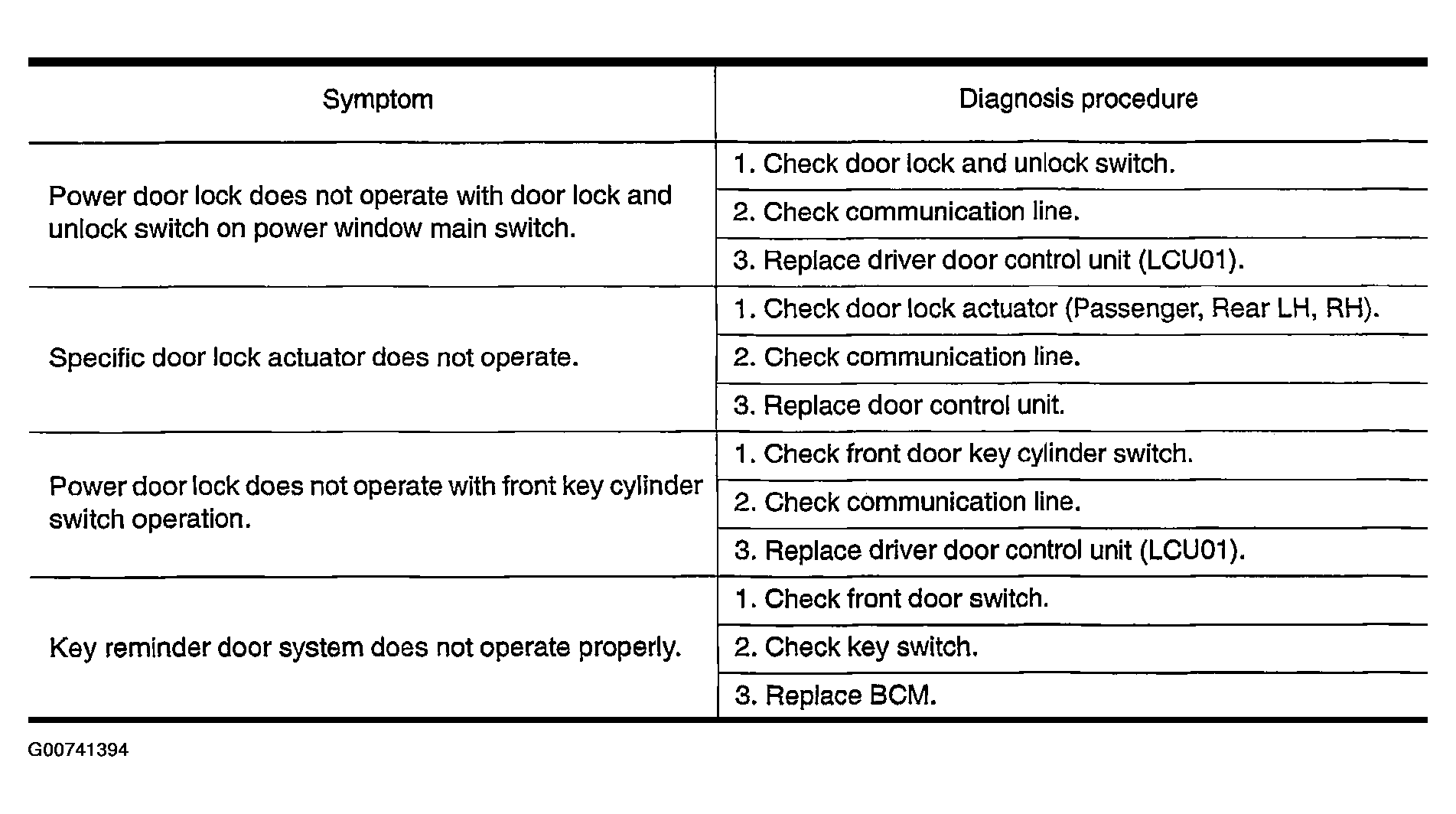

Fig 1: Symptom Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
