Rear Door Lock: Components

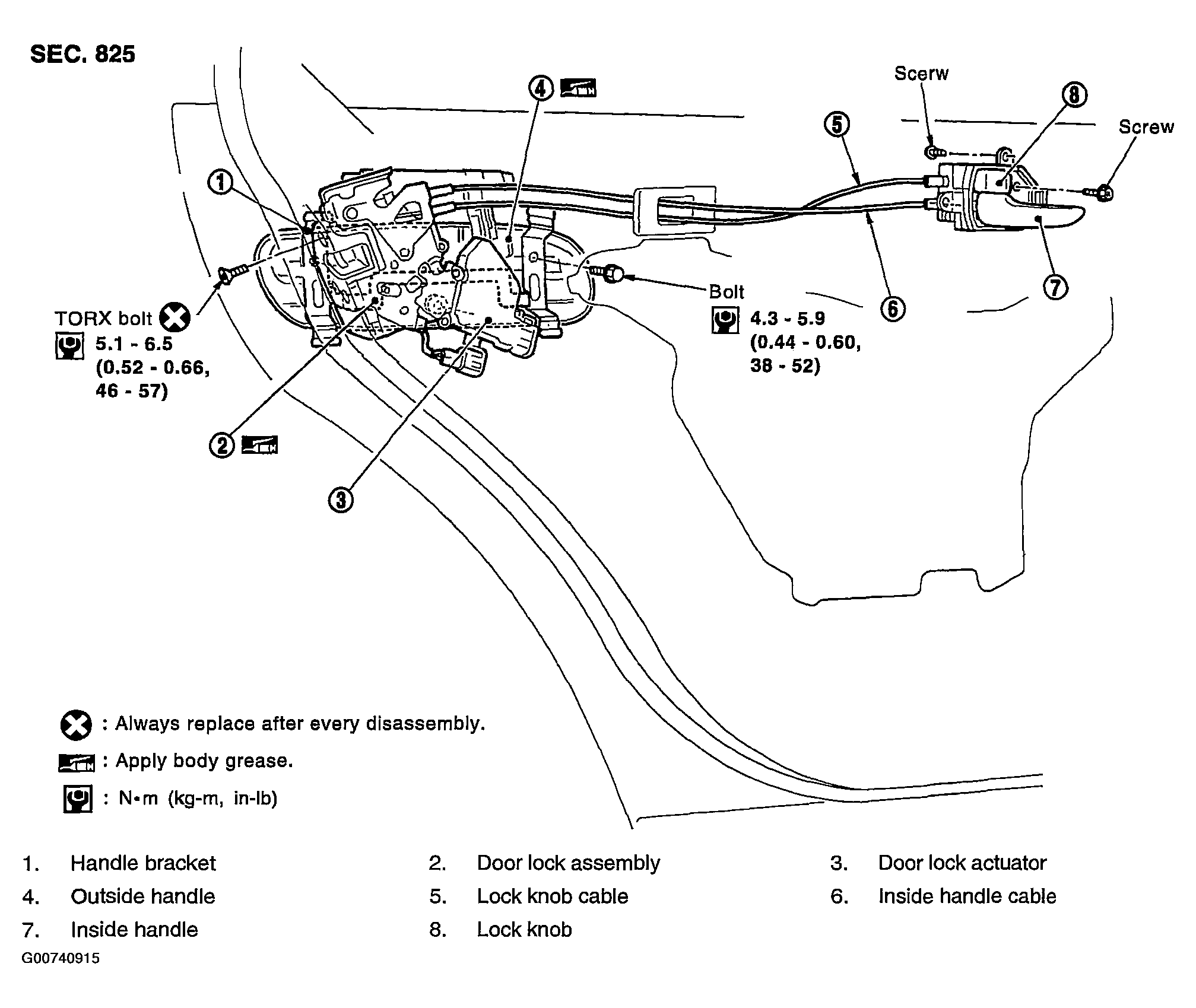

Fig 1: View Of Rear Door Lock Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
