1. Check Encoder Power Supply

Check voltage between auto trunk motor connector B109 terminal 5 and ground.

1. 5 (L/R) - Ground : Battery voltage

OK or NG

1. OK : GO TO 3.
2. NG : GO TO 2.

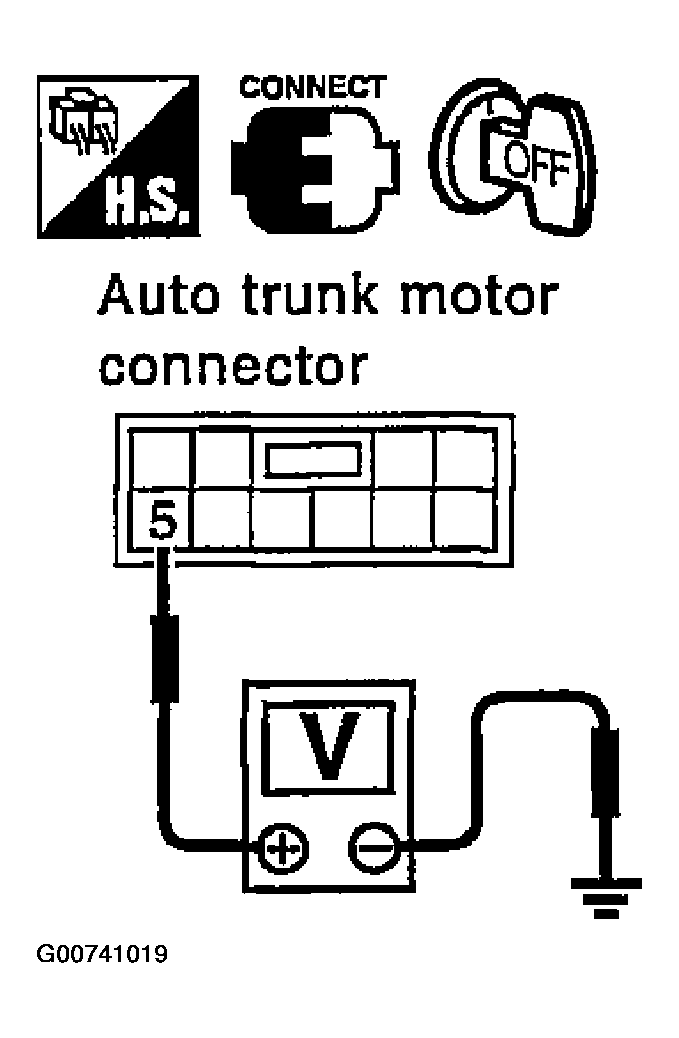

Fig 1: Check Encoder Power Supply

Courtesy of NISSAN MOTOR CO., U.S.A.
