Terminals And Reference Value For Auto Trunk Control Unit

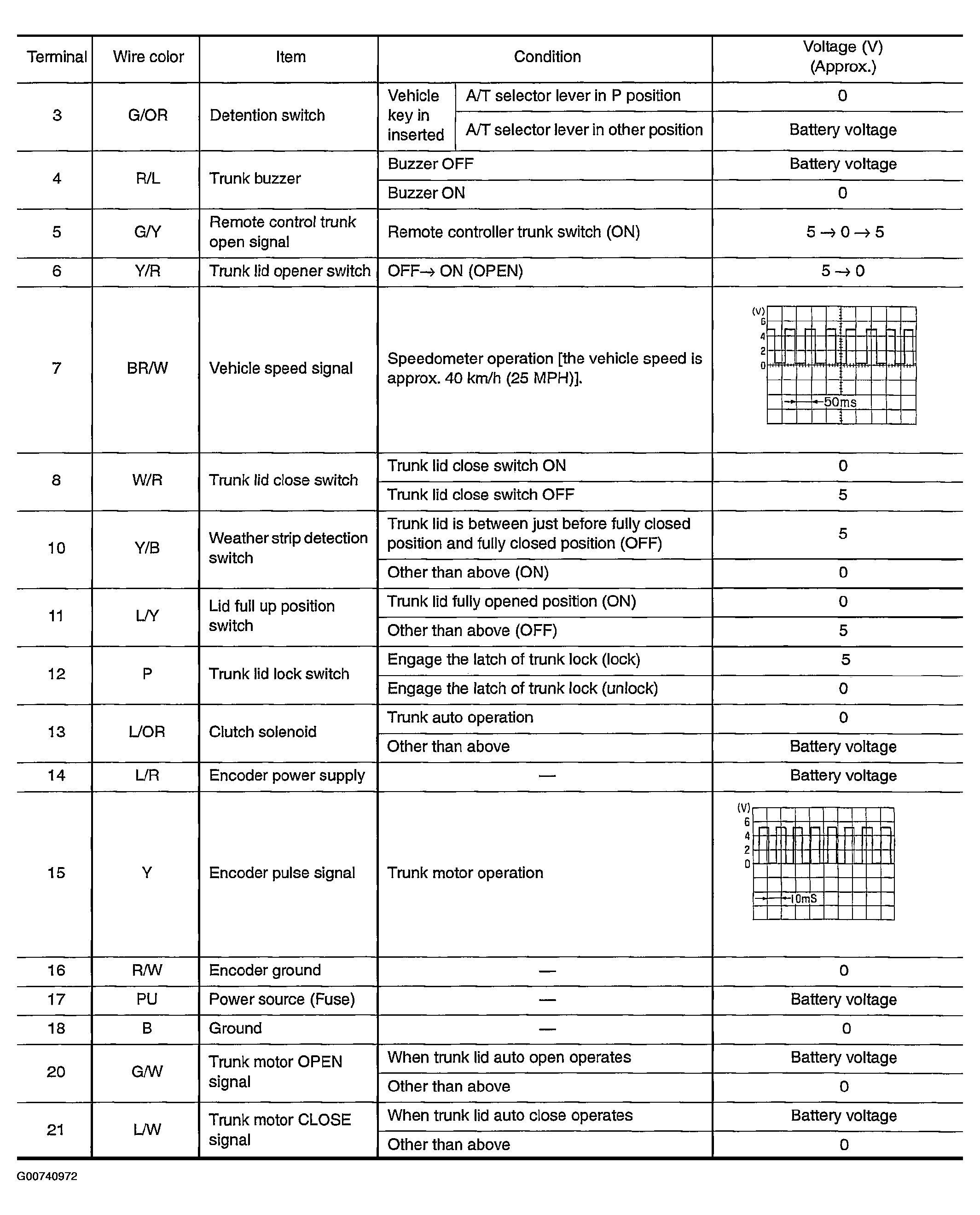

Fig 1: Terminals and Reference Value For Auto Trunk Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
