1. Motor Operation Check

Check voltage between auto trunk control unit connector and ground.

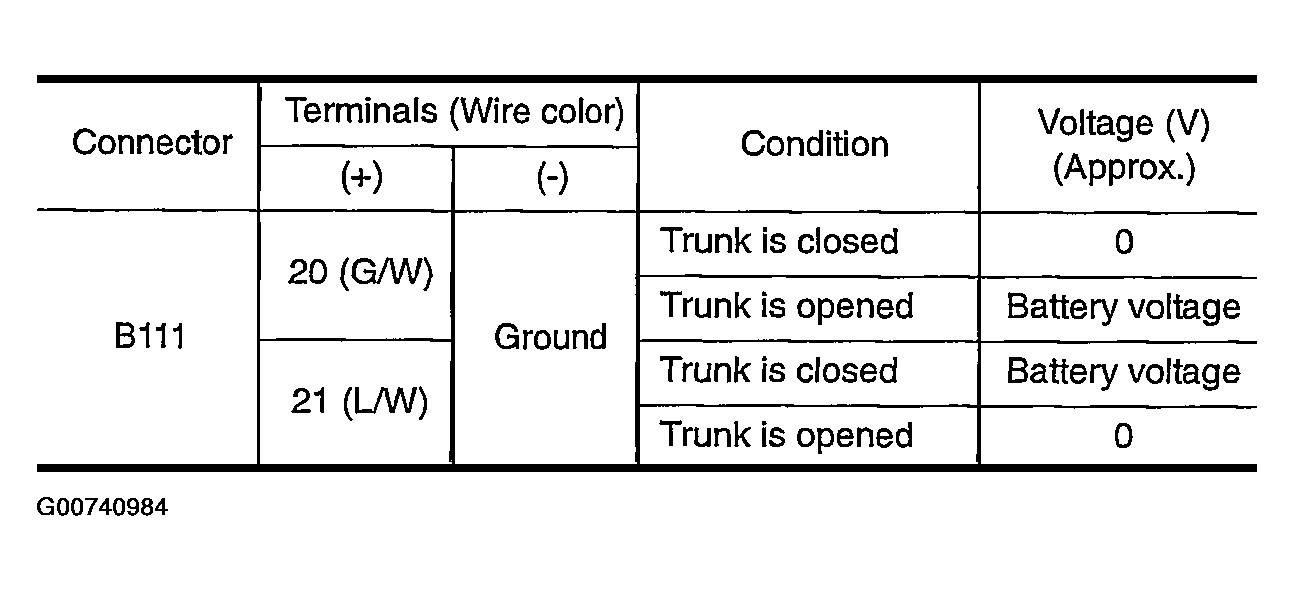

Fig 1: Checking Voltage Between Auto Trunk Control Unit And Ground (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Voltage Between Auto Trunk Control Unit And Ground (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 2.
2. NG : Replace auto trunk control unit.
