Consult-II Function
›
Diagnostic Items Description
Diagnostic Items Description

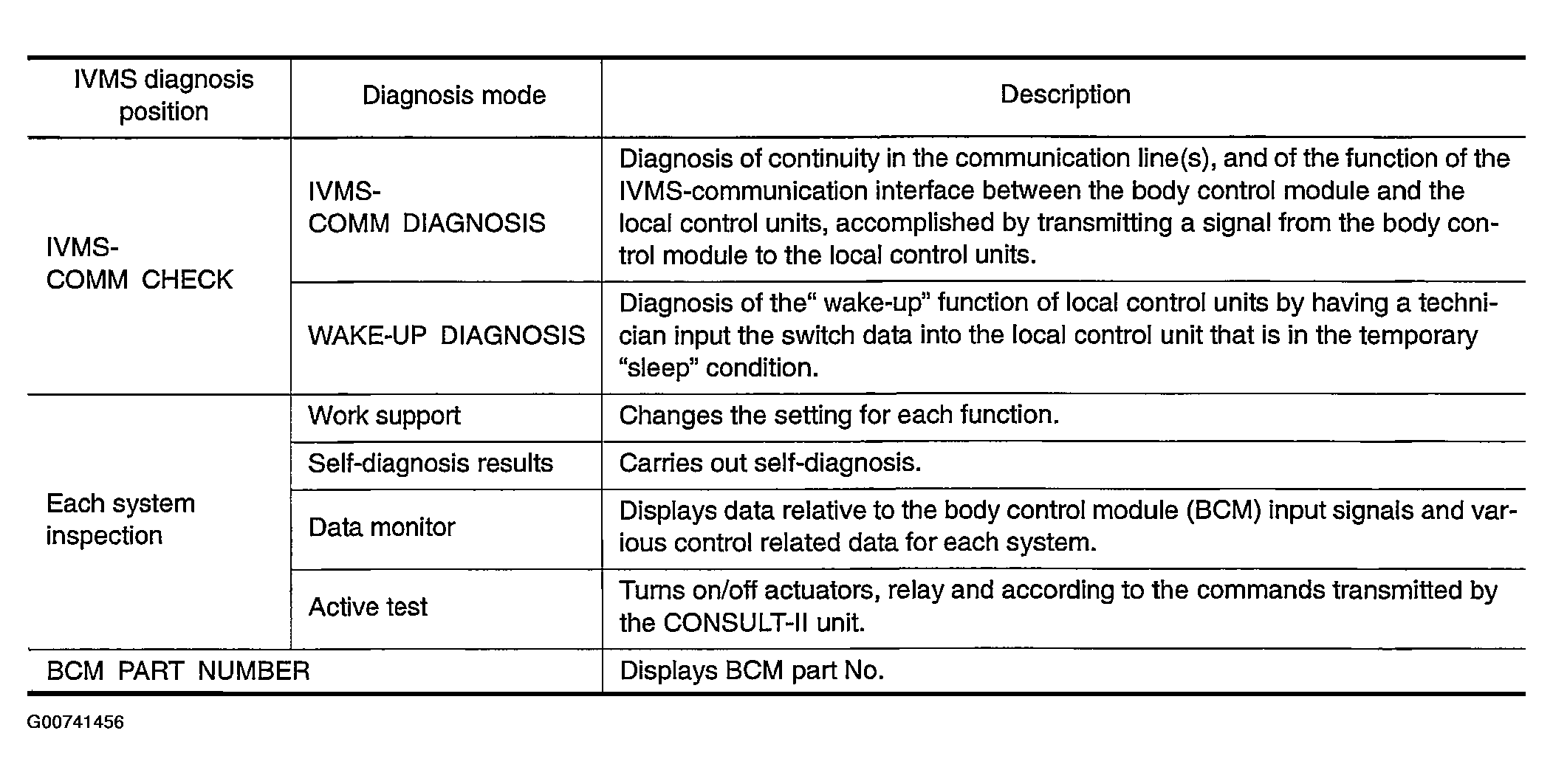

Fig 1: Diagnostic Items Description
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
