Remote Keyless Entry System
›
Preliminary Check
›
Inspection with CONSULT-II
Inspection with CONSULT-II

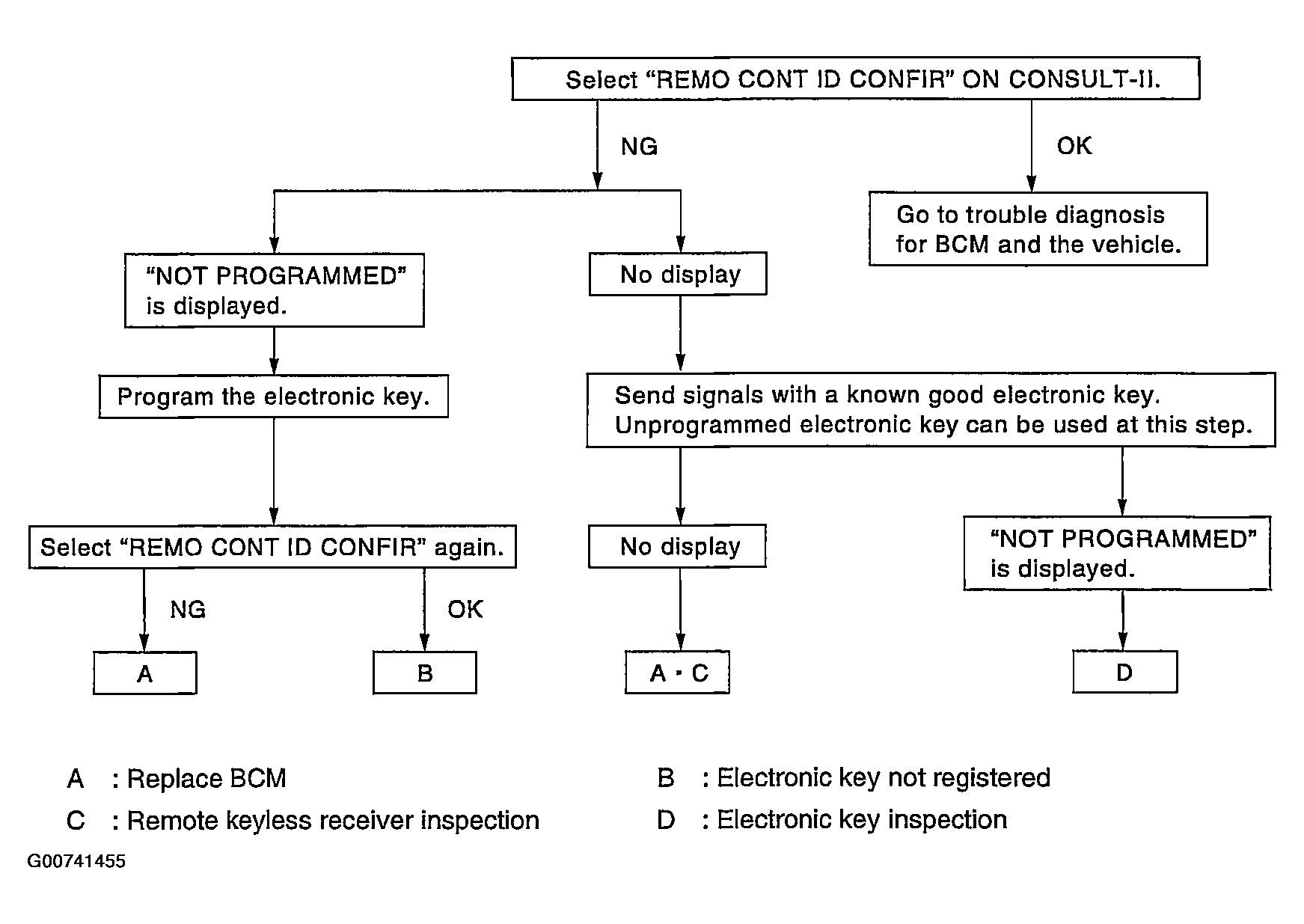

Fig 1: Inspection with CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
