Trouble Diagnosis Chart By Symptom

• Always check the "Work Flow" before troubleshooting. Refer to WORK FLOW  .
• Before carrying out the inspection on the following table, perform the preliminary check.

  Refer to PRELIMINARY CHECK  .

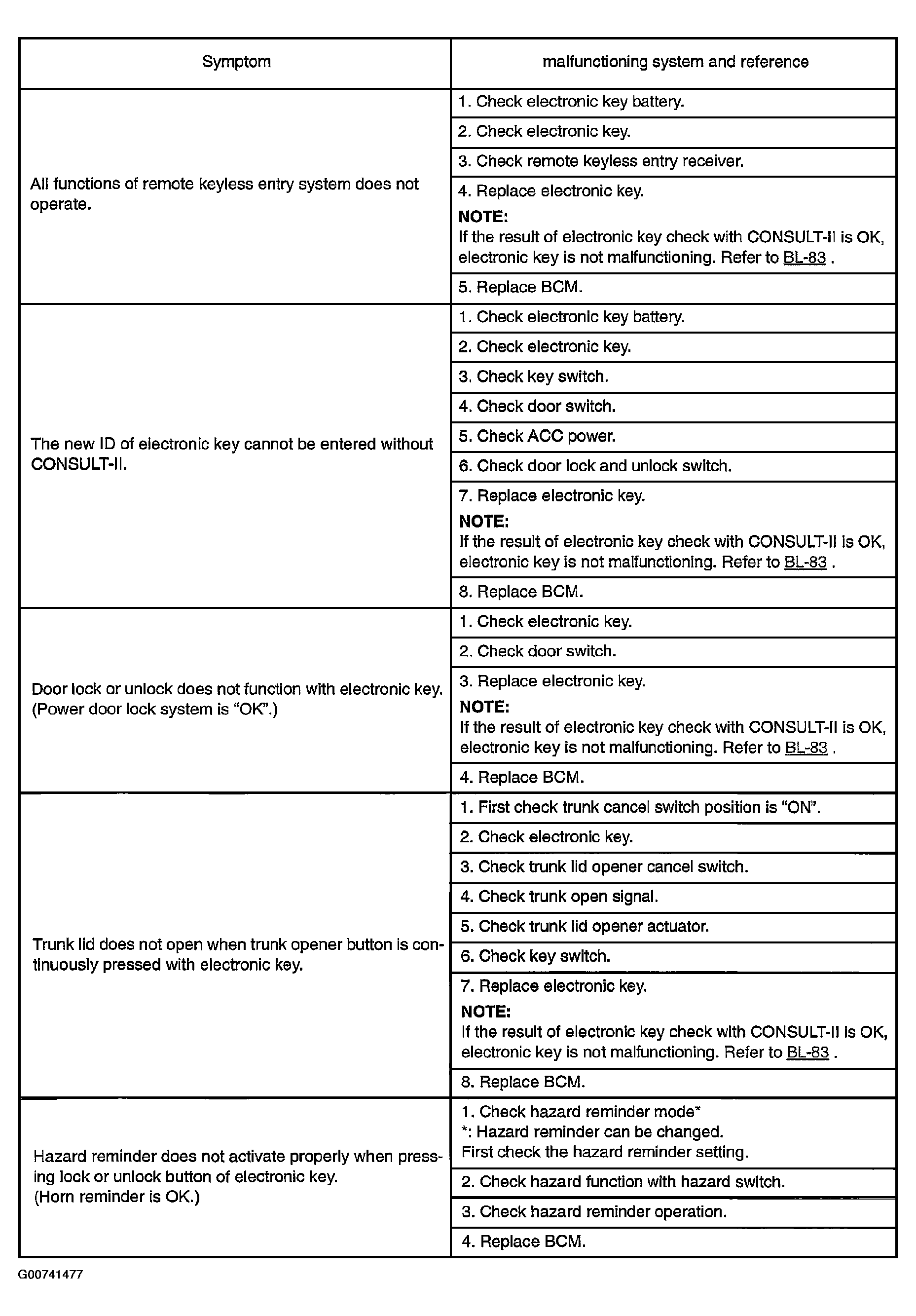

Fig 1: Symptom Chart (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

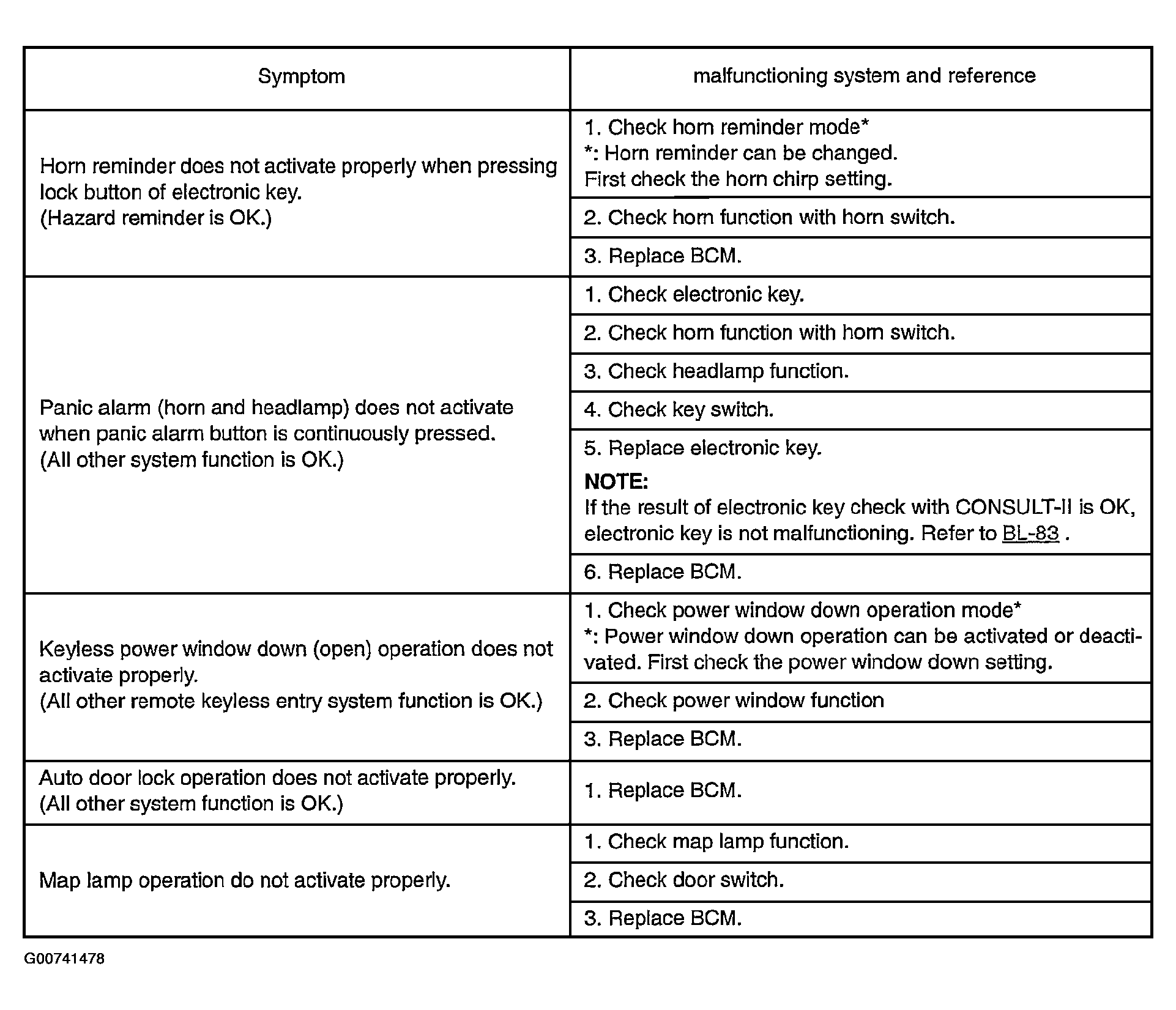

Fig 2: Symptom Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
