Wiring Diagram - KEYLES

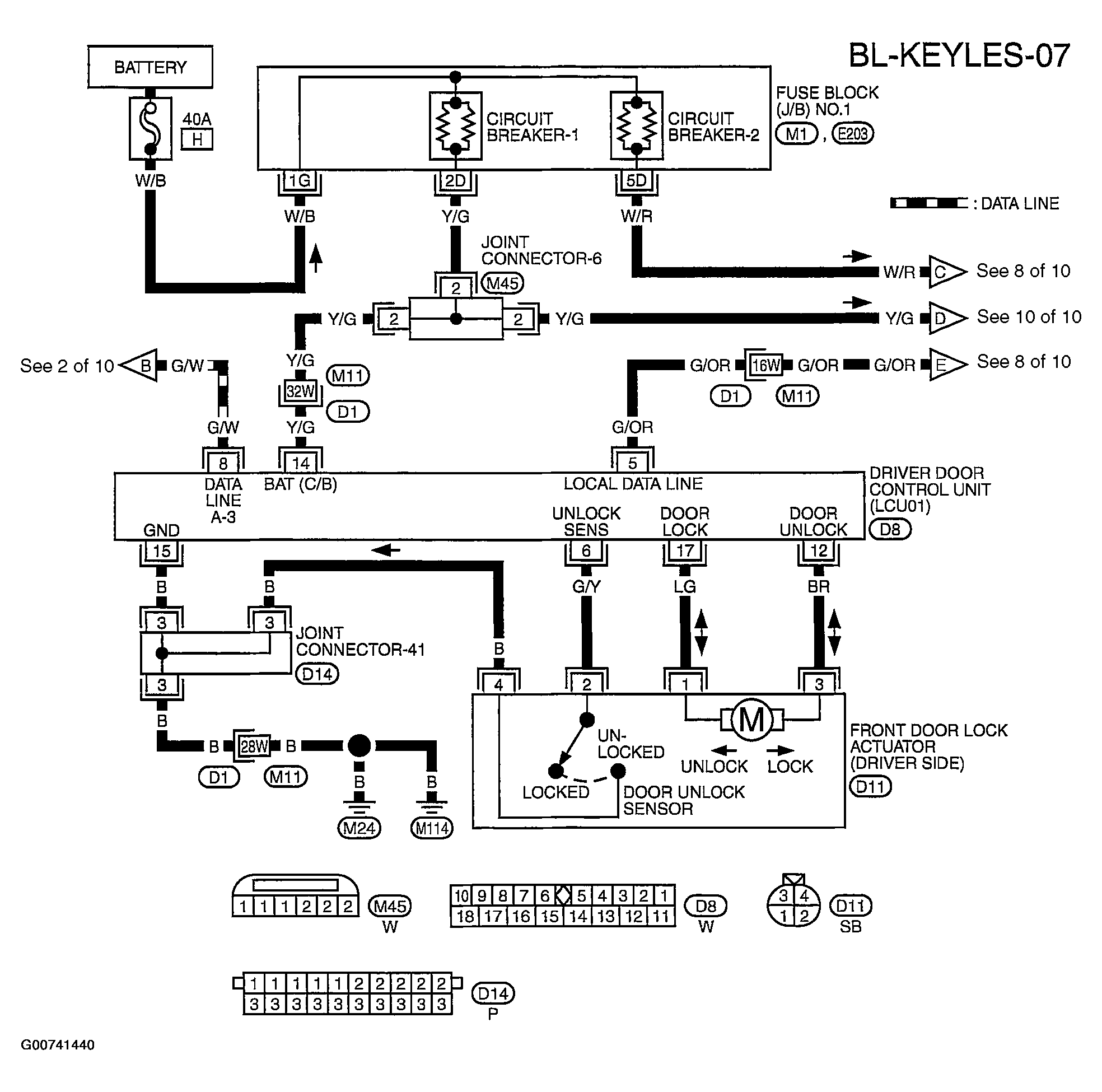

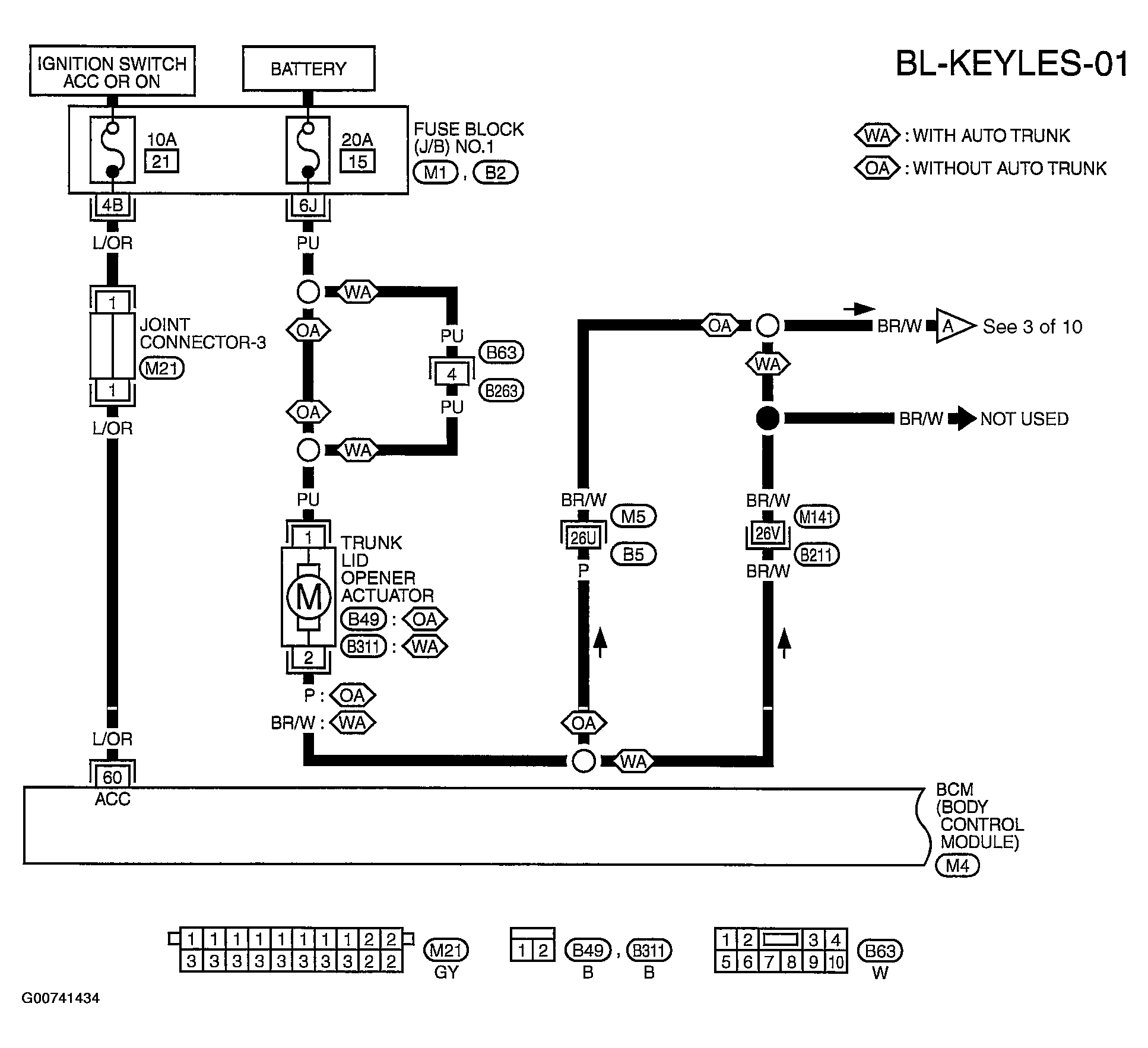

Fig 1: Remote Keyless Entry Circuit Diagram (1 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

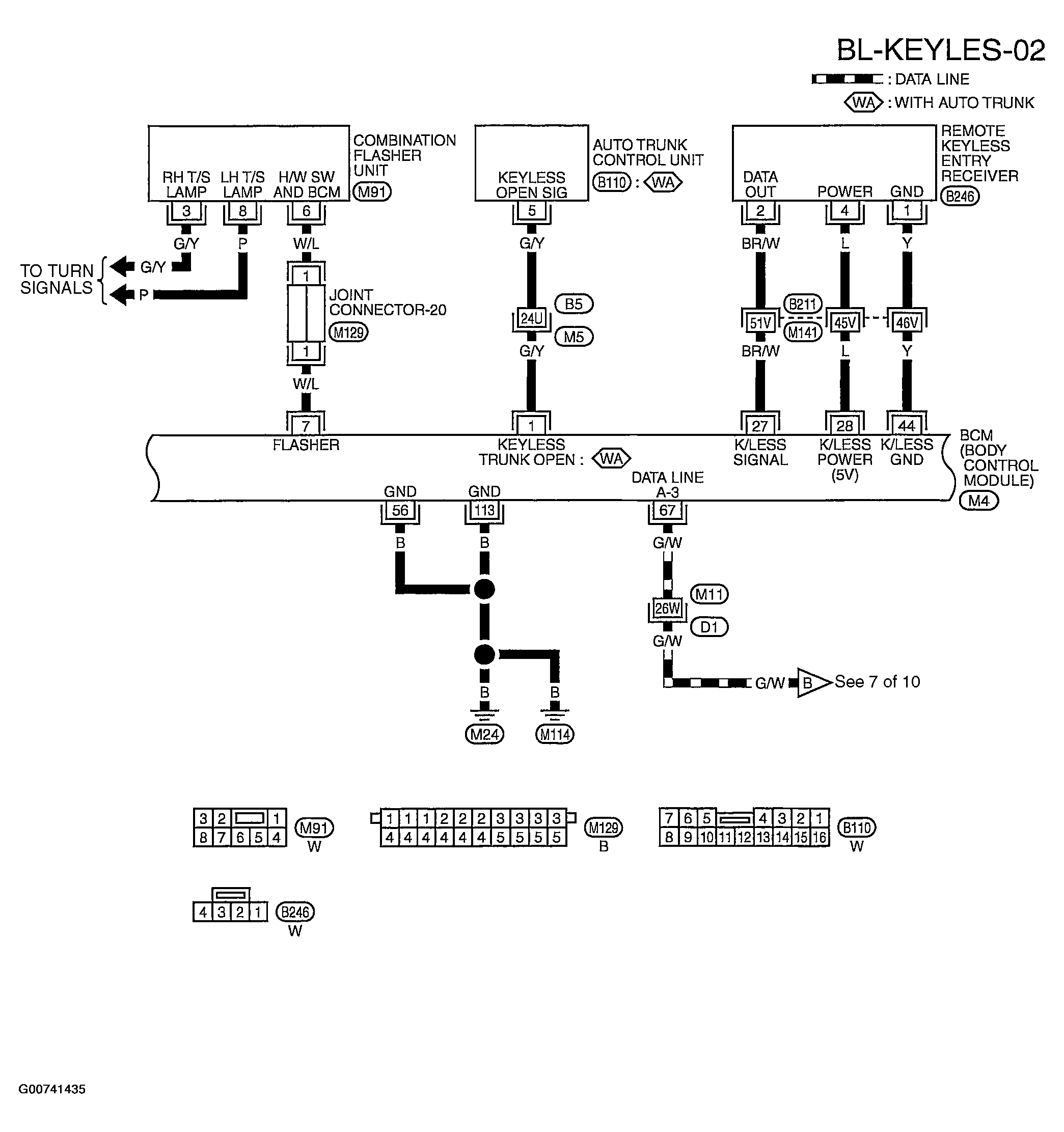

Fig 2: Remote Keyless Entry Circuit Diagram (2 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

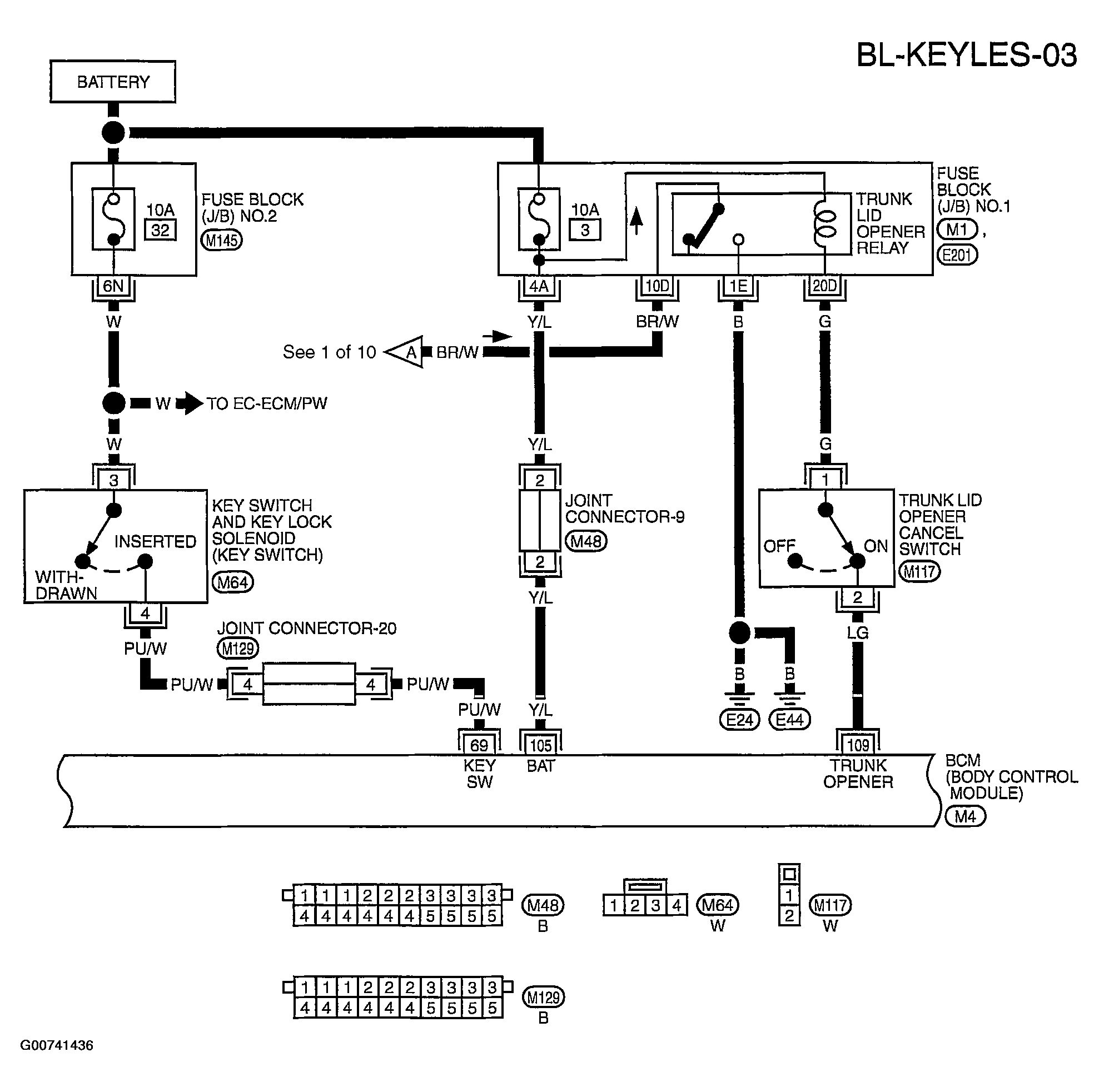

Fig 3: Remote Keyless Entry Circuit Diagram (3 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

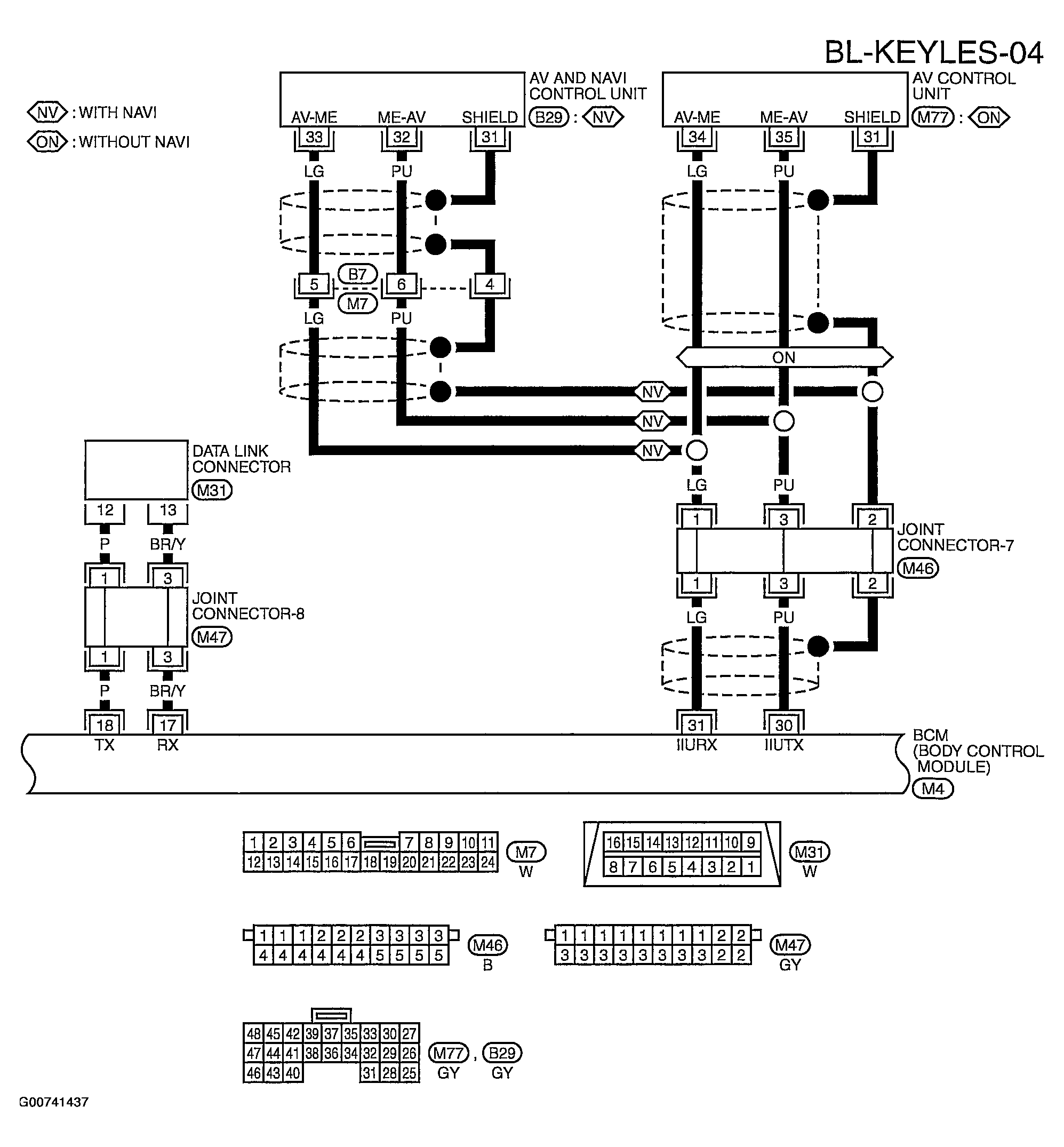

Fig 4: Remote Keyless Entry Circuit Diagram (4 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

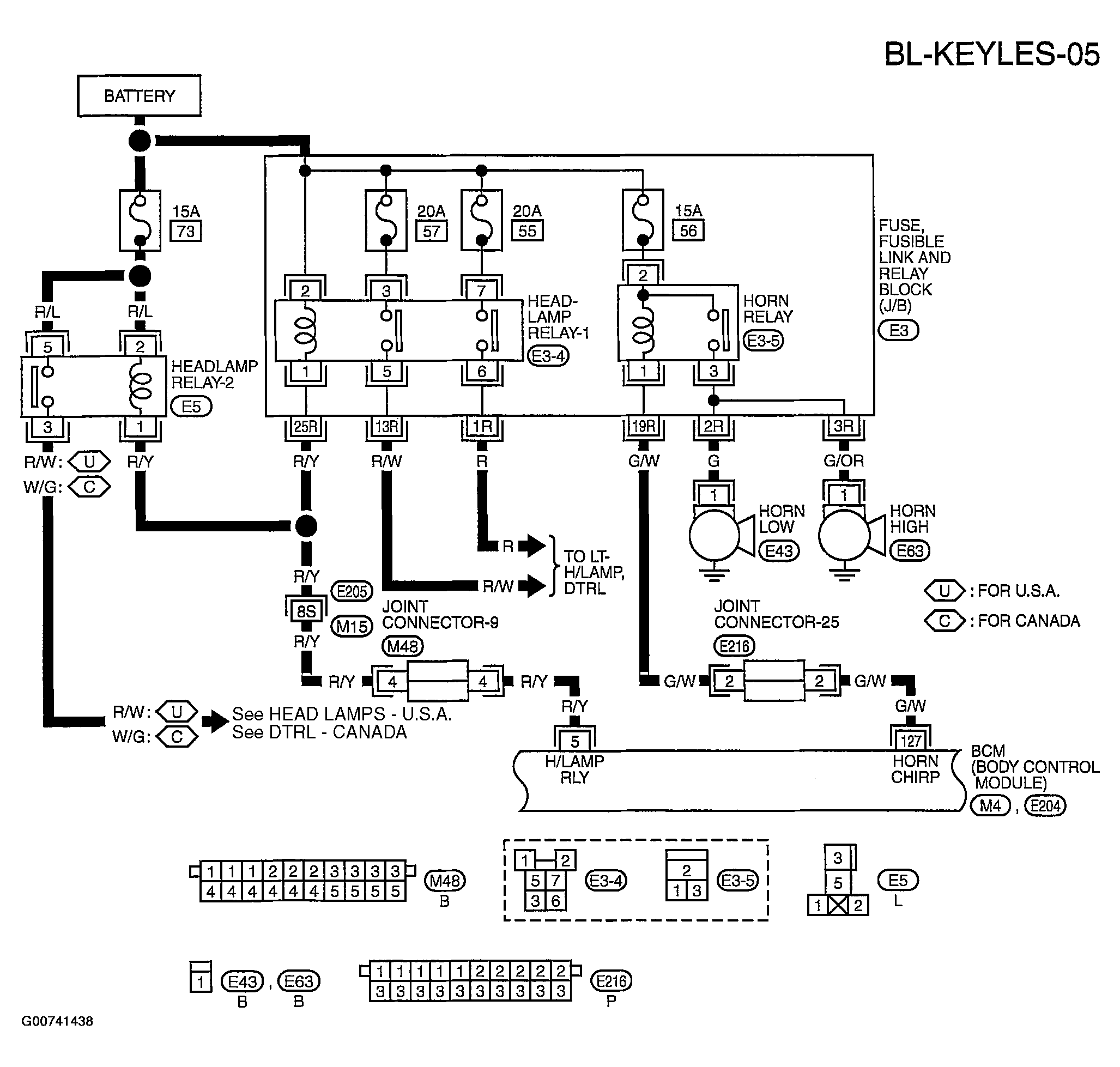

Fig 5: Remote Keyless Entry Circuit Diagram (5 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

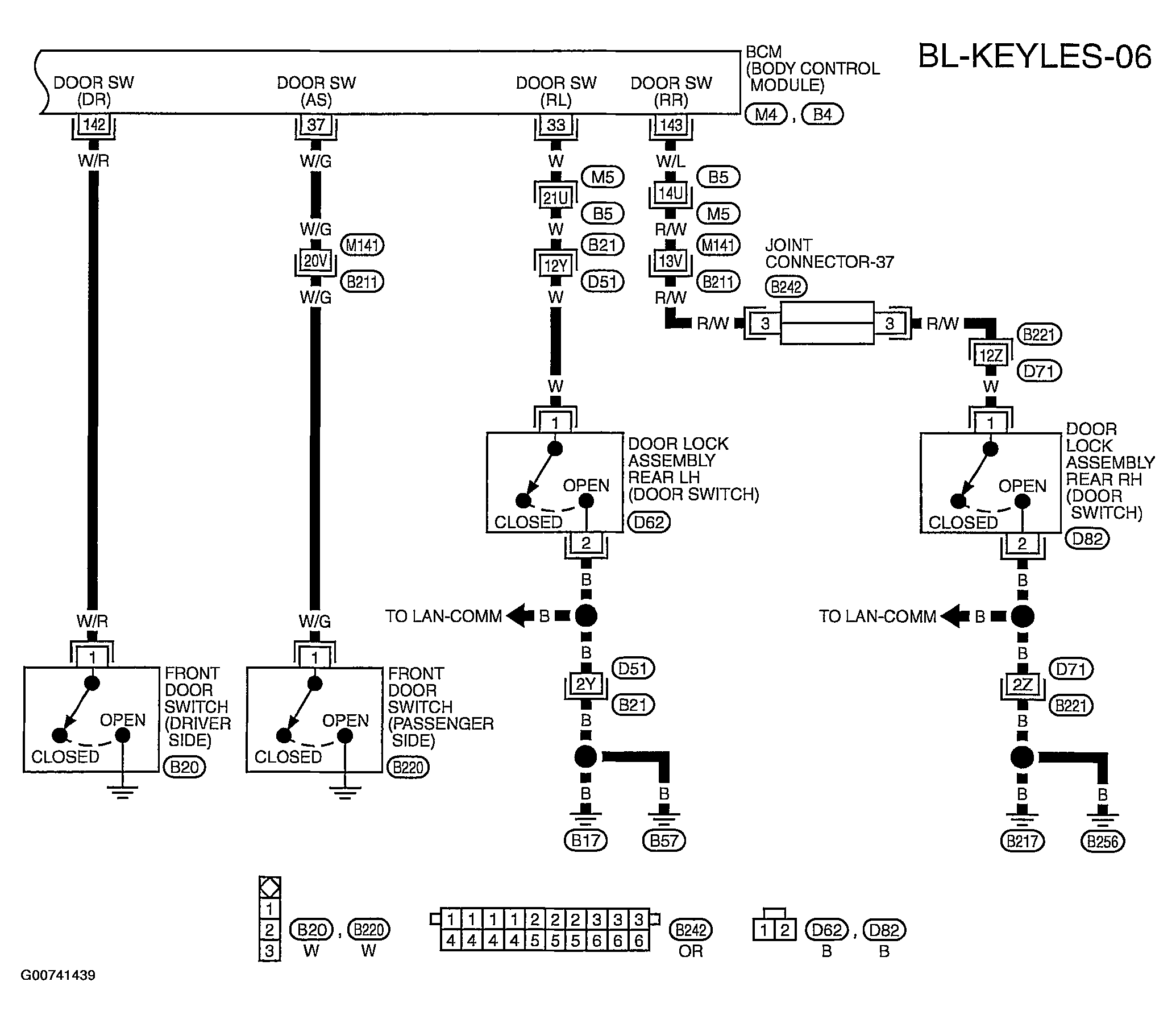

Fig 6: Remote Keyless Entry Circuit Diagram (6 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Remote Keyless Entry Circuit Diagram (7 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

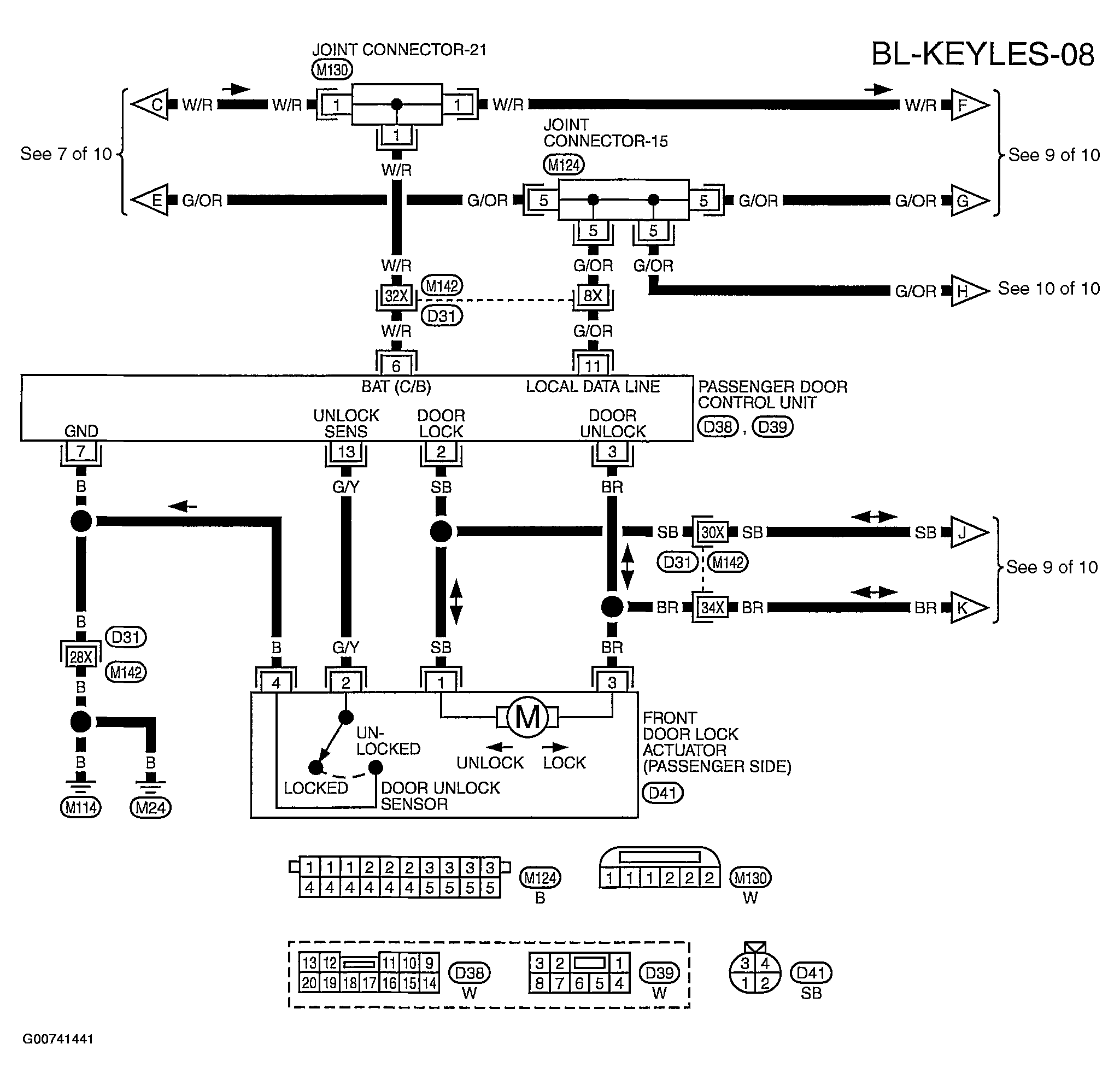

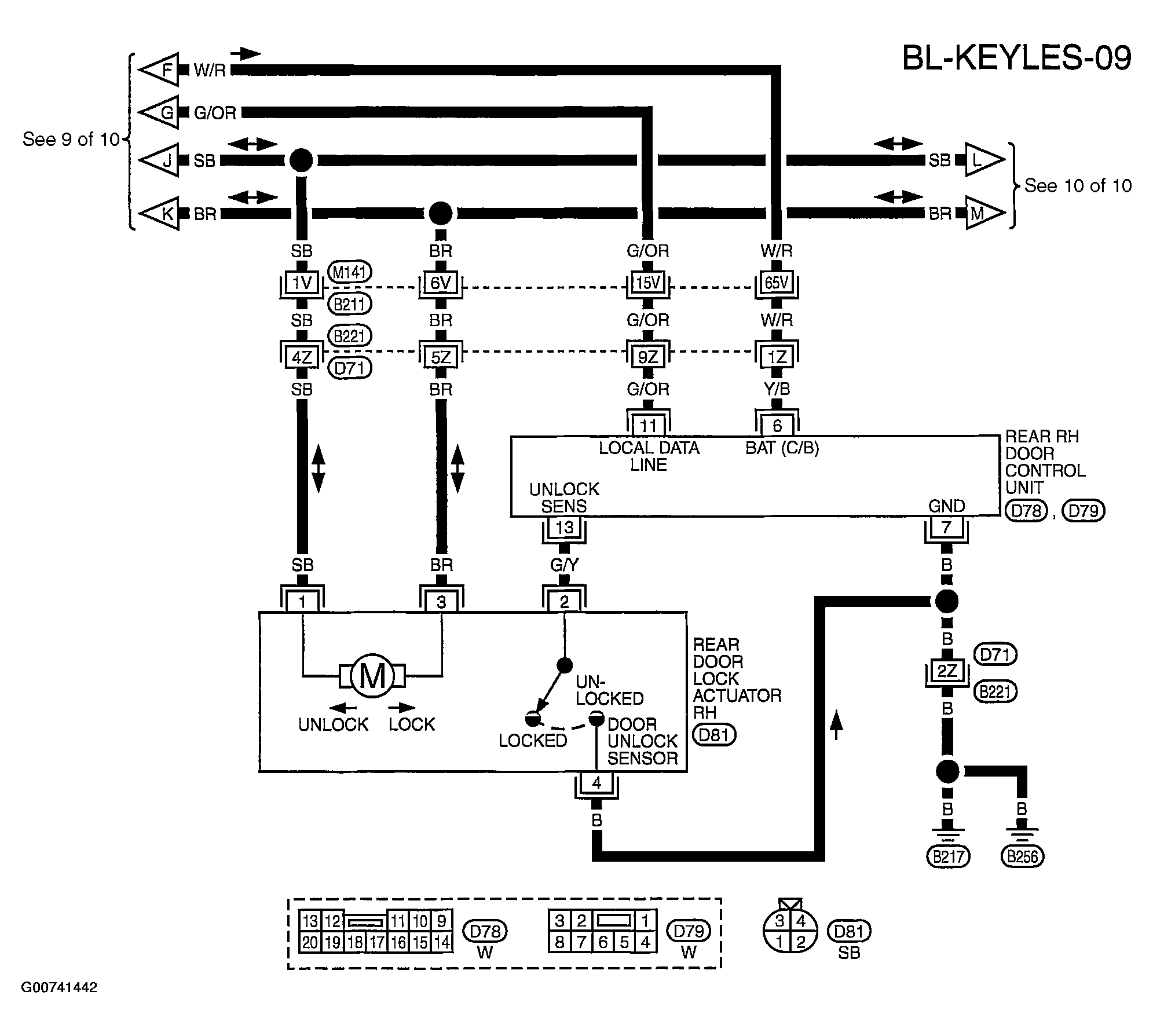

Fig 8: Remote Keyless Entry Circuit Diagram (8 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Remote Keyless Entry Circuit Diagram (9 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.

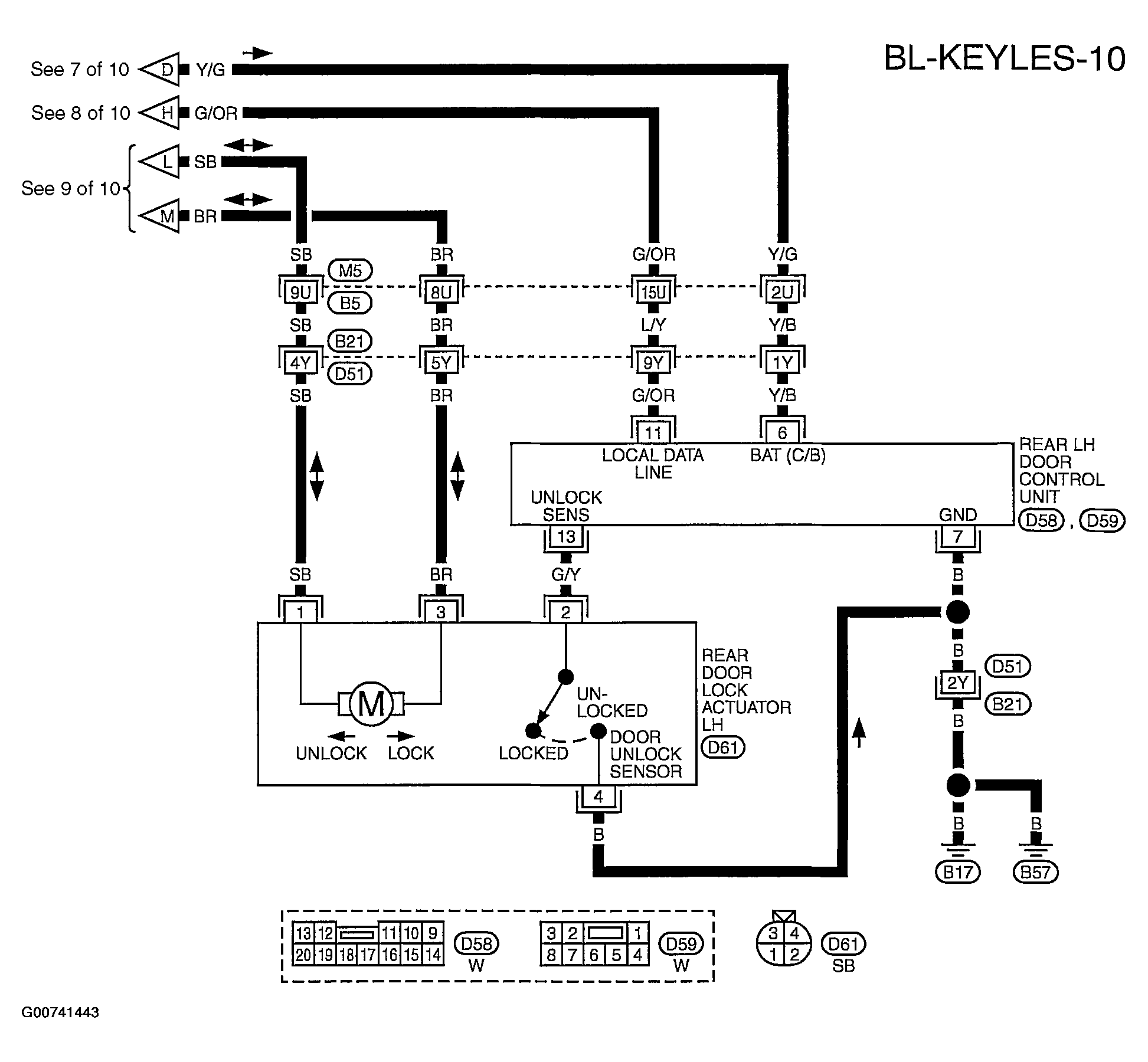

Fig 10: Remote Keyless Entry Circuit Diagram (10 Of 10)

Courtesy of NISSAN MOTOR CO., U.S.A.
