Standards By CONSULT-II

NOTE: Items displayed are data calculated by control unit and may indicate normal operation even if output circuit (harness) is open or shorted.

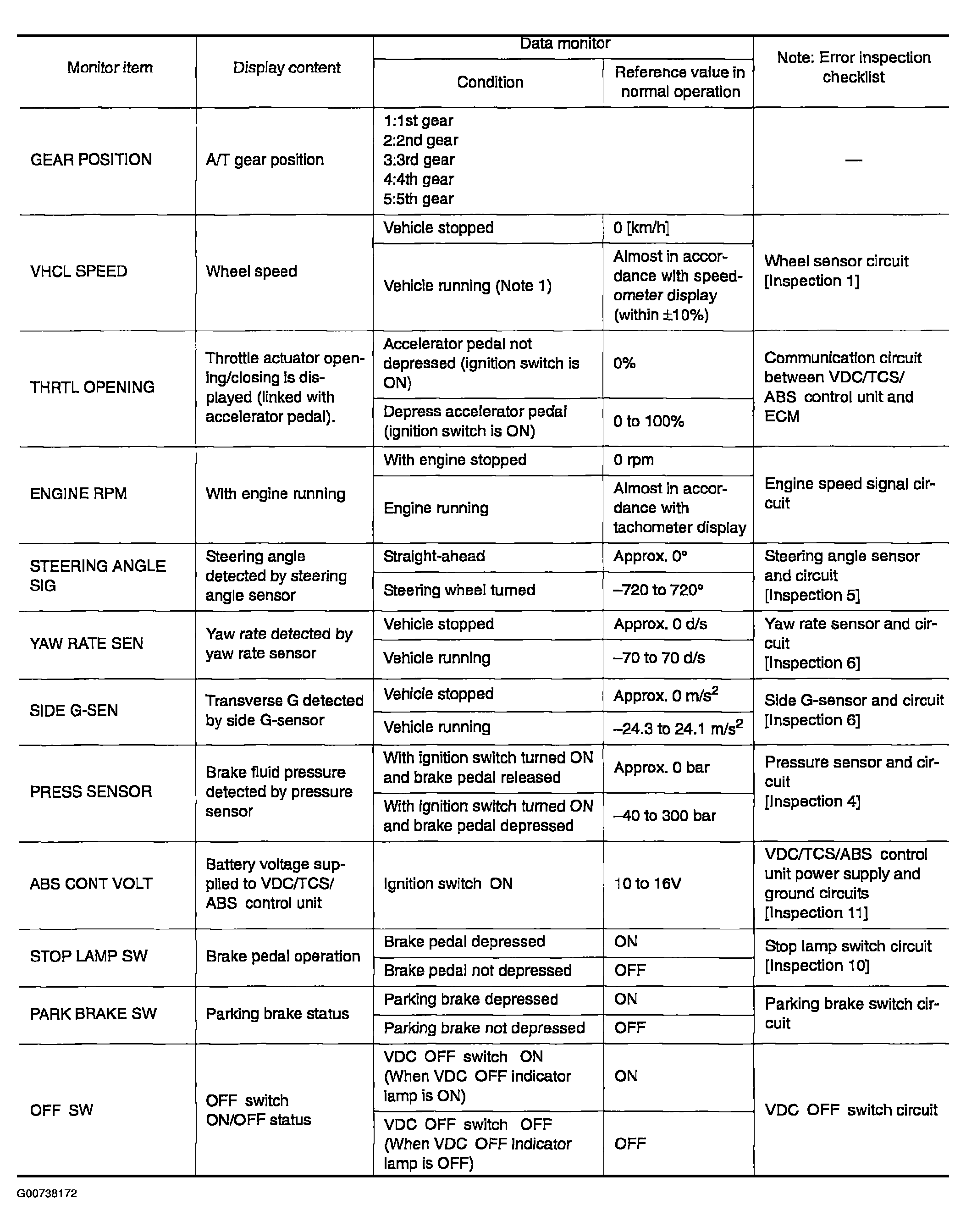

Fig 1: Displaying CONSULT-II Standards (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

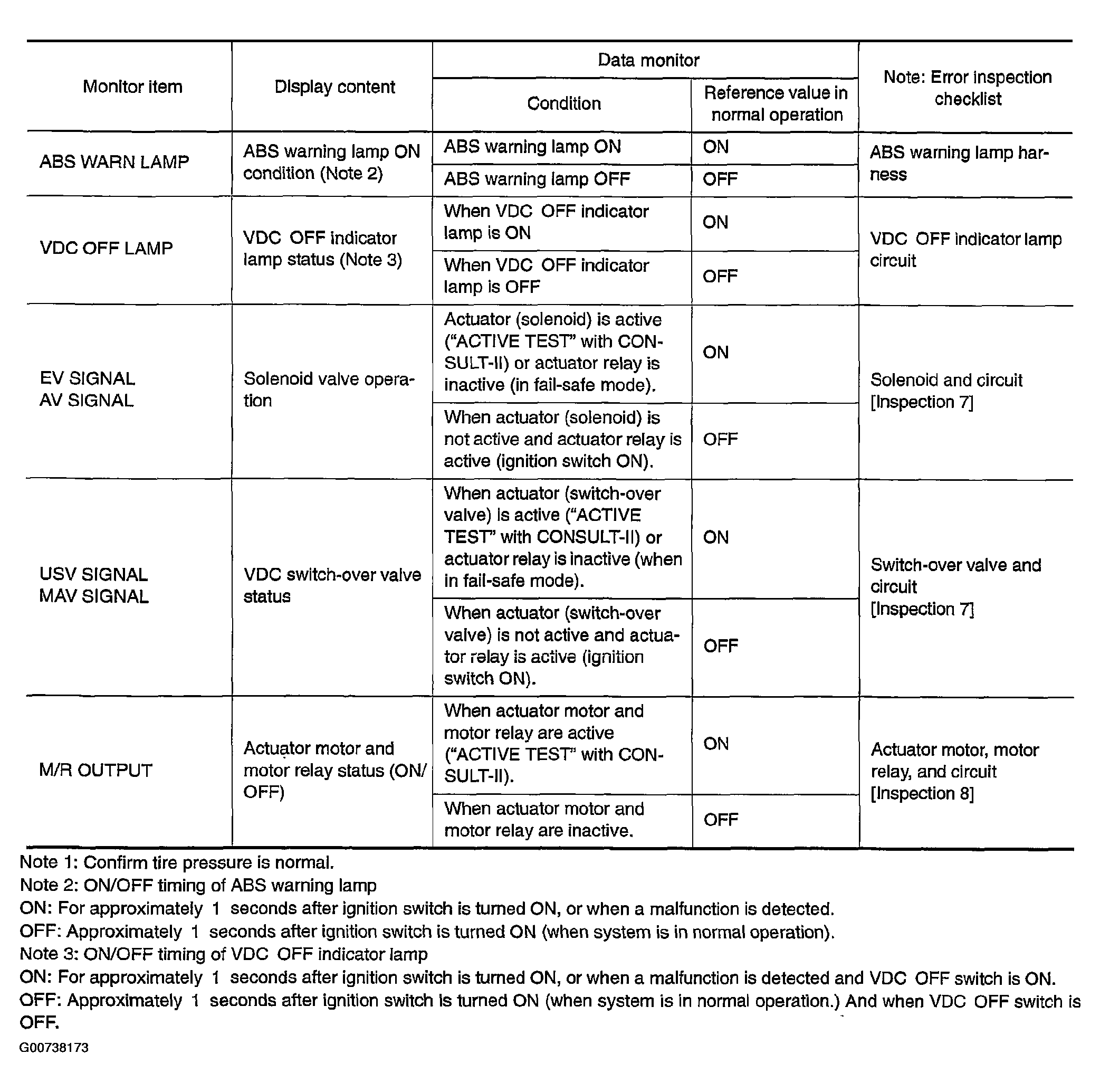

Fig 2: Displaying CONSULT-II Standards (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
