VDC Relay Box
›
Continuity, Resistance
Continuity, Resistance

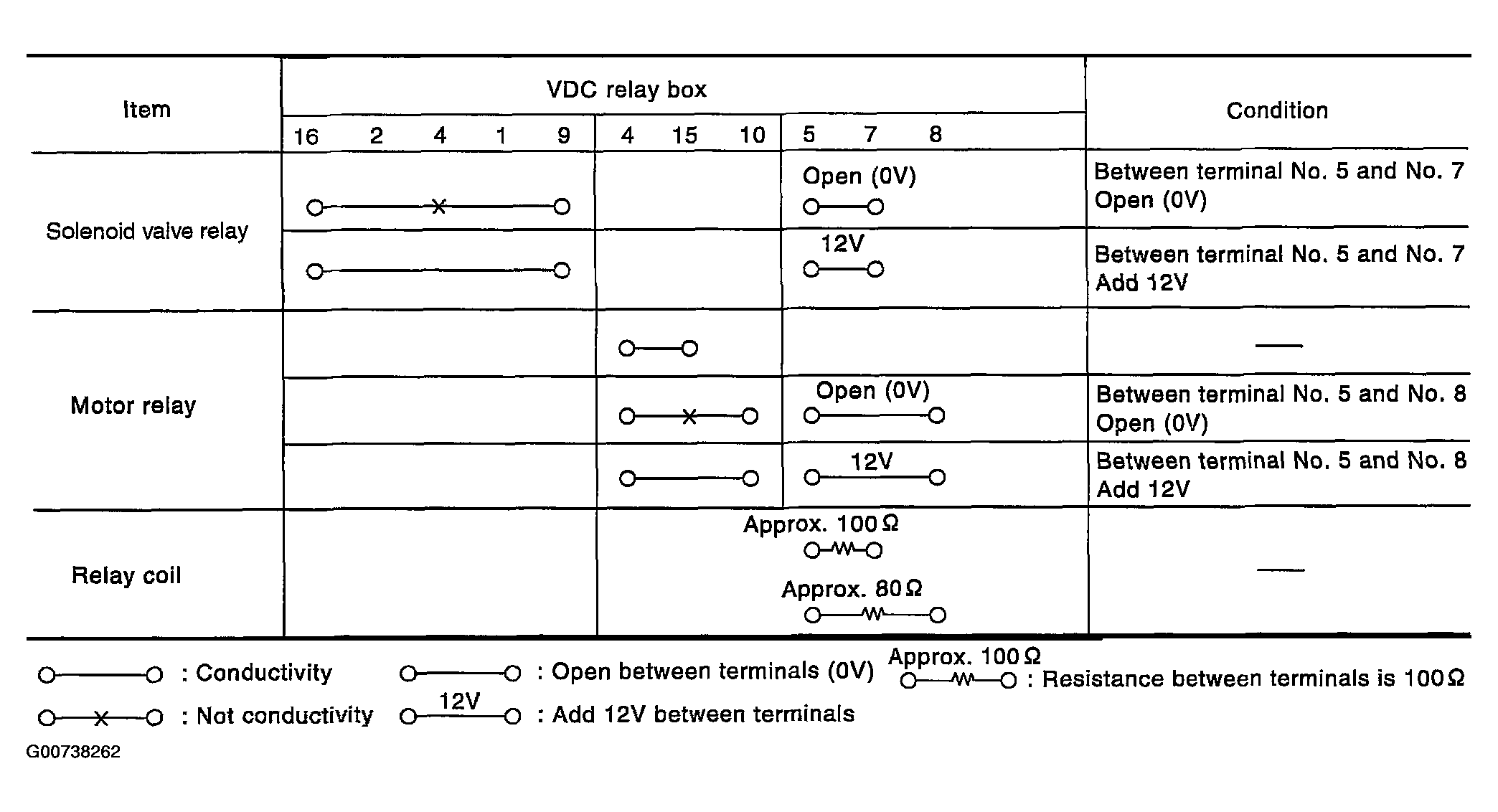

Fig 1: Displaying Continuity, Resistance and Insulation Values Between VDC Relay Box Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
