VDC/TCS/ABS Actuator: Notes

Disconnect actuator connectors. Check continuity and resistance value between any pair of terminals on the actuator.

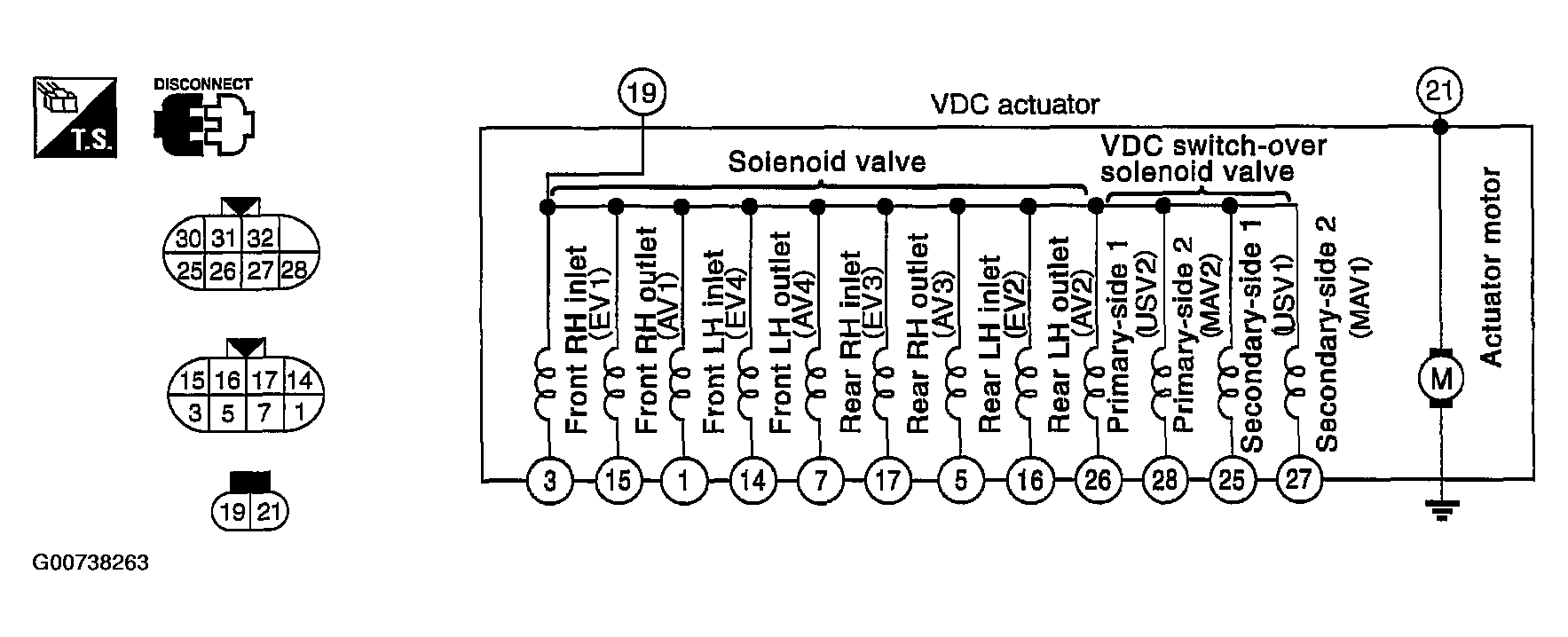

Fig 1: Displaying VDC/TCS/ABS Actuator Circuits & Components

Courtesy of NISSAN MOTOR CO., U.S.A.
