Infiniti
›
2004
›
Q45
›
Repair and Diagnosis
›
Brakes
›
Traction Control
›
Brake Control System
›
Trouble Diagnosis
›
Schematic
Trouble Diagnosis: Schematic

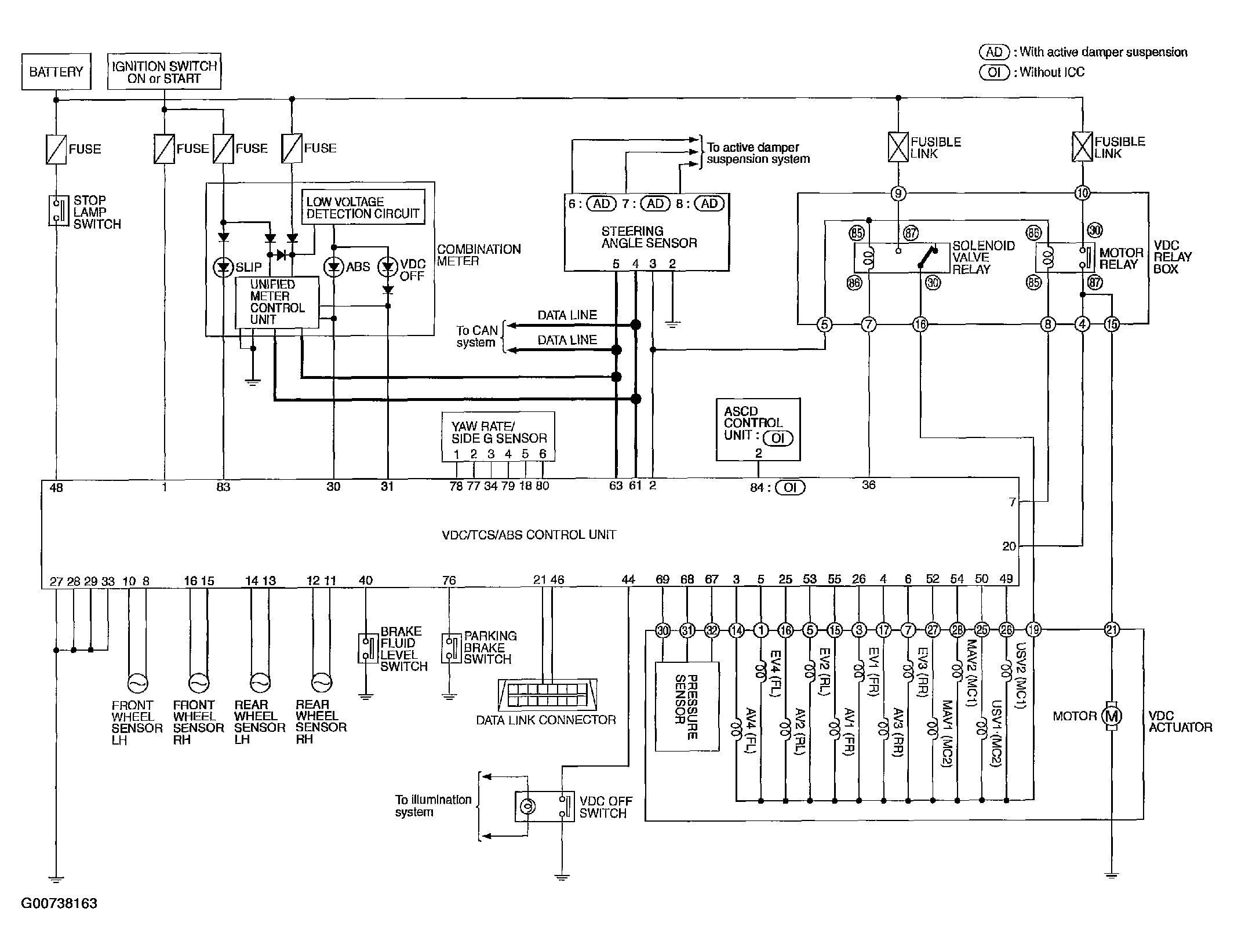

Fig 1: Displaying Brake Control System Circuits & Components
