Removal And Installation For Combination Meter: Removal

Remove the cluster lid A. Refer to INSTRUMENT PANEL ASSEMBLY .
Remove the screws (4) with power tool, and disconnect connectors.
Rotating the combination meter so that the left-side is in front, turn it until the meter face comes to the top.
CAUTION: To prevent it from being damaged by interference with the meter bracket, protect the meter with cloth.

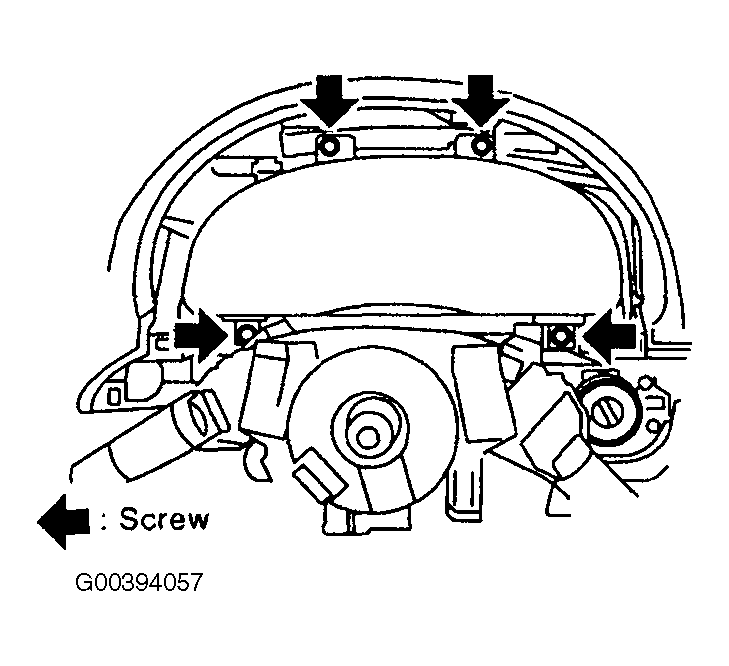

Fig 1: Removing & Installing Combination Meter (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

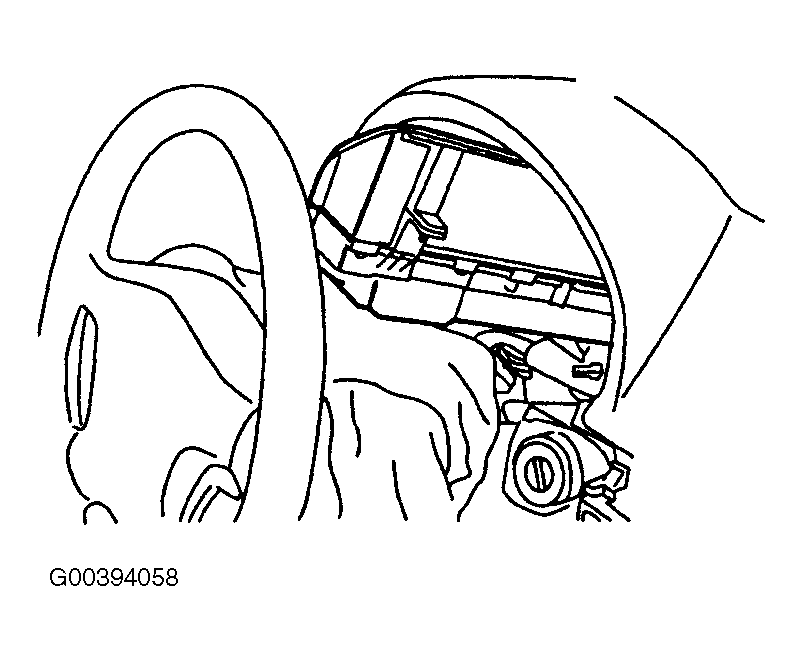

Fig 2: Removing & Installing Combination Meter (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

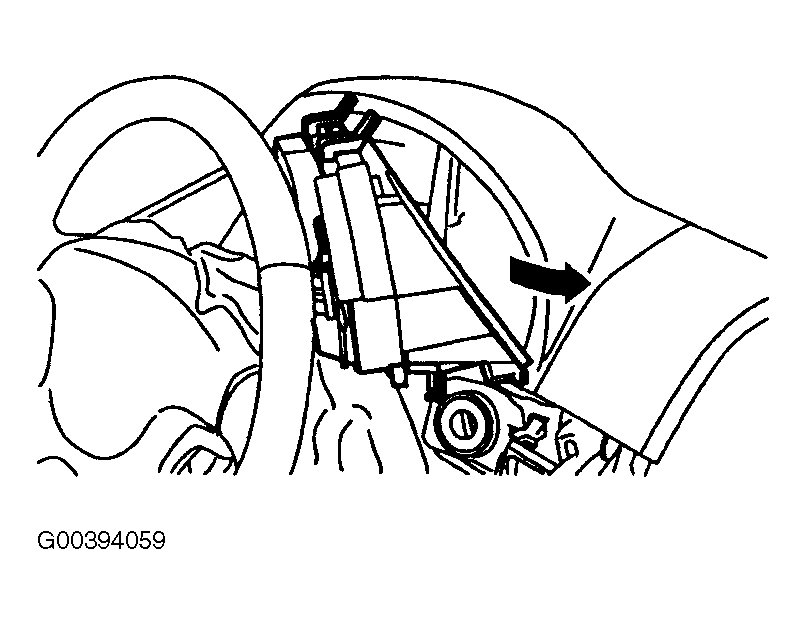

Fig 3: Removing & Installing Combination Meter (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

While pulling combination meter forward, pull it out to the right (combination meter back-side shall be in front).
