How To Change The Display For Odo/Trip Meter
- The CAN communication signals (vehicle speed signal) from VDC/TCS/ABS control unit, and the memory signals from the meter memory circuit are processed by the combination meter, and the mileage is displayed.

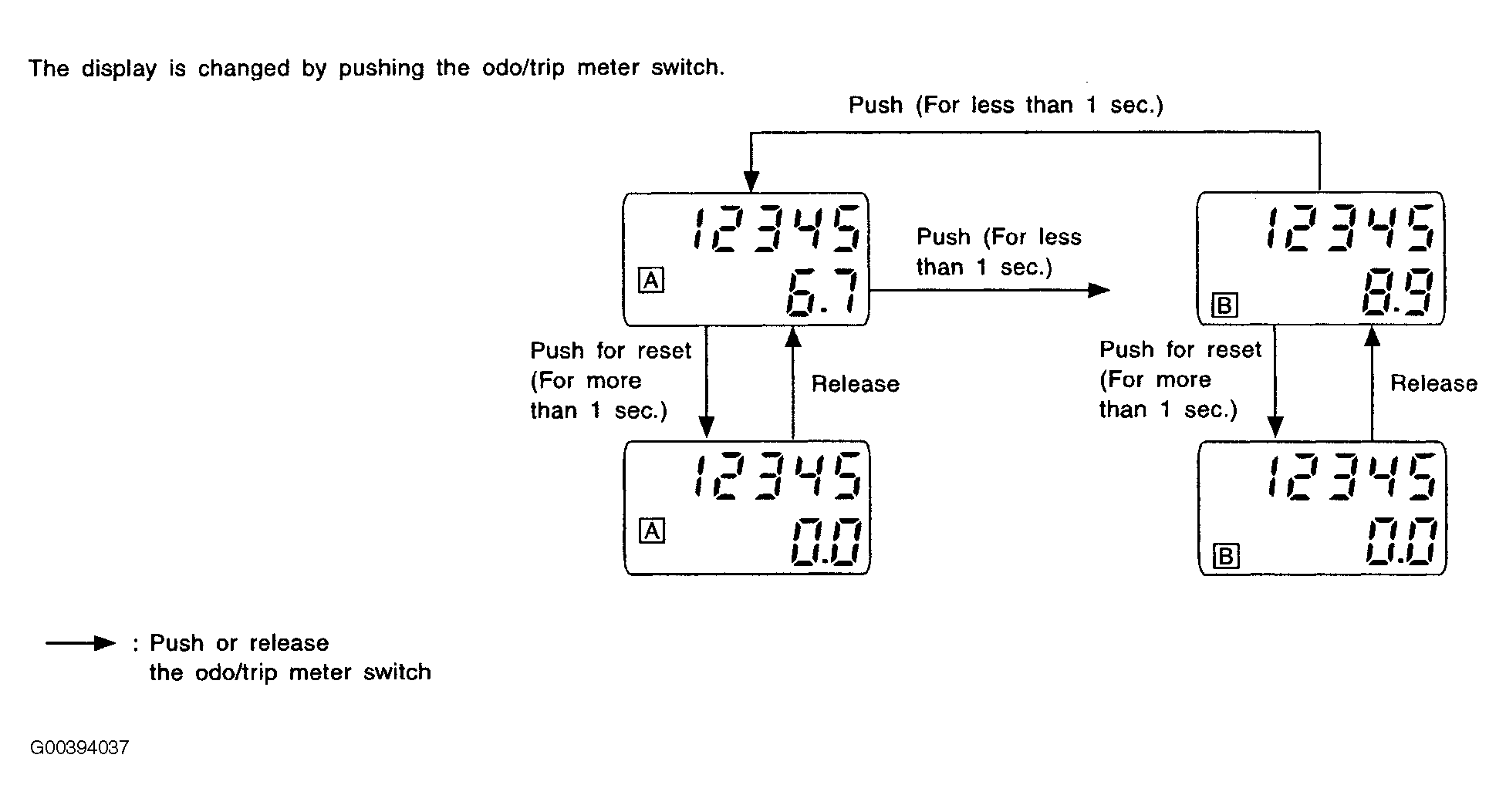

- Operating the odometer/trip switch allows switching the mode in the following order.
Courtesy of NISSAN MOTOR CO., U.S.A.
- The odo/trip meter display switching and trip display resetting can be identified by the time from pressing the odo/trip meter switch to releasing it.
- When resetting with trip A displayed, only trip A display is reset (same as trip B).
