Removal And Installation Of Compass: Removal

  1. Remove connector cover.

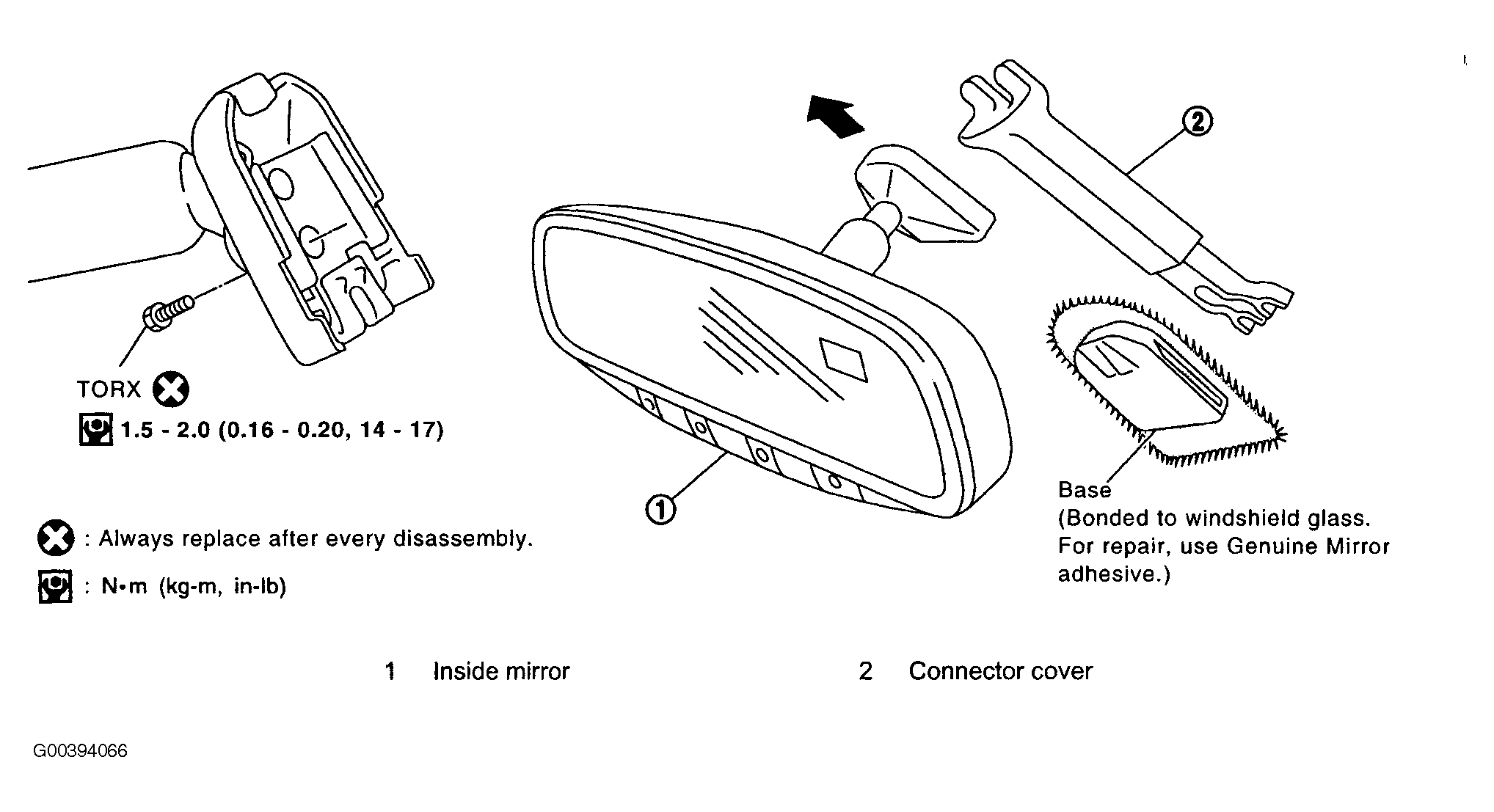

    2. Fig 1: Removing & Installing Rear View Mirror
    G00394066Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Remove TORX bolt (T20) of mirror base.
  3. Slide the mirror upward to remove, and disconnect the connector.
