Wiring Diagram - Compass
Wiring Diagram - Compass

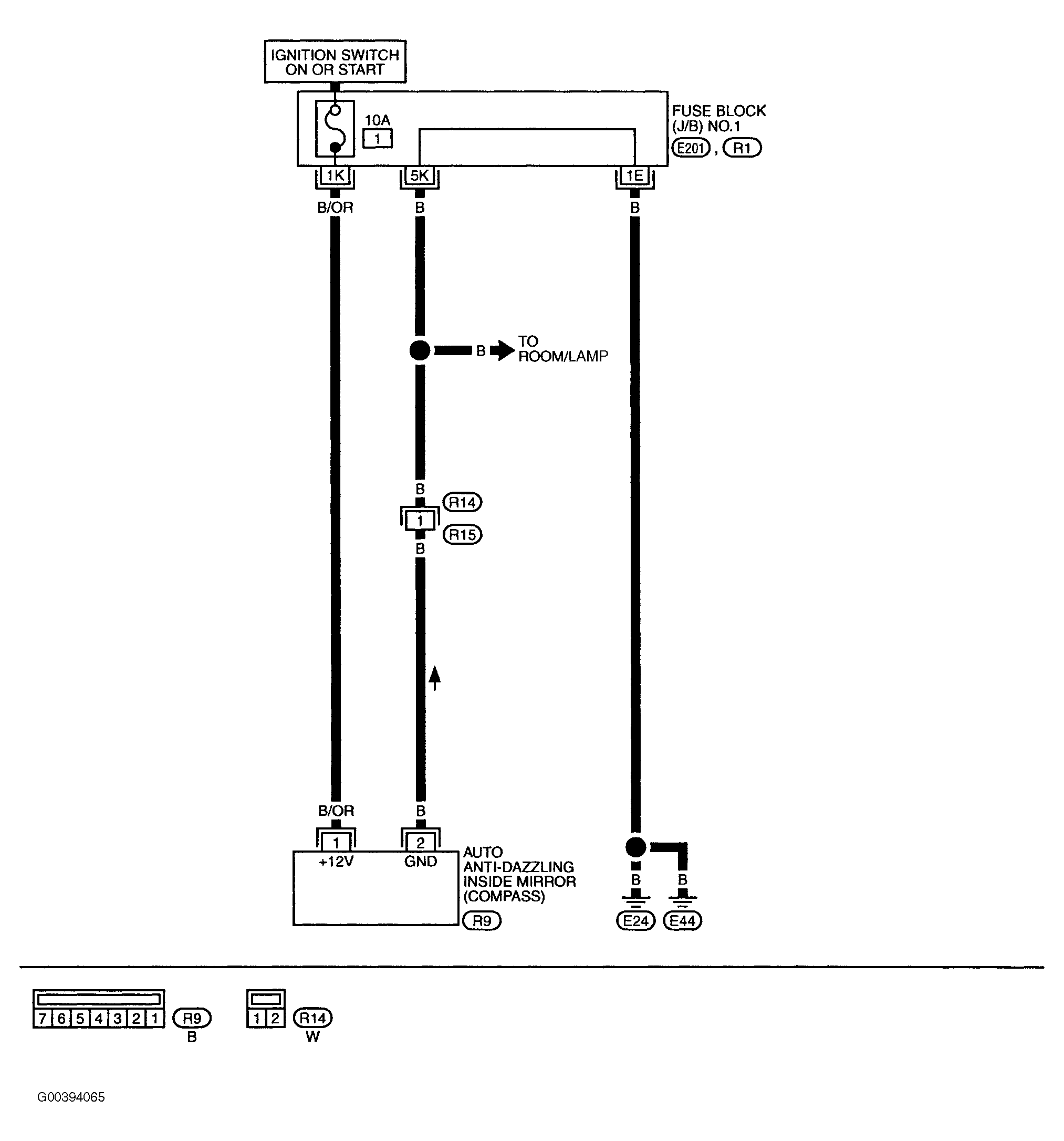

Fig 1: Circuit Diagram Of Compass
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
