Side Distance Guideline Correction

• This mode is used to modify the side distance guidelines if they are dislocated from the rear view monitor image, because of variations of body/camera mounting conditions.

Side distance guideline correction procedure

1. Create a correction line to modify the screen. Draw lines on the rearward of the vehicle passing through the following points: 0.2 m (7.87 inch) from both sides of the vehicle, and from the rear end of the bumper.

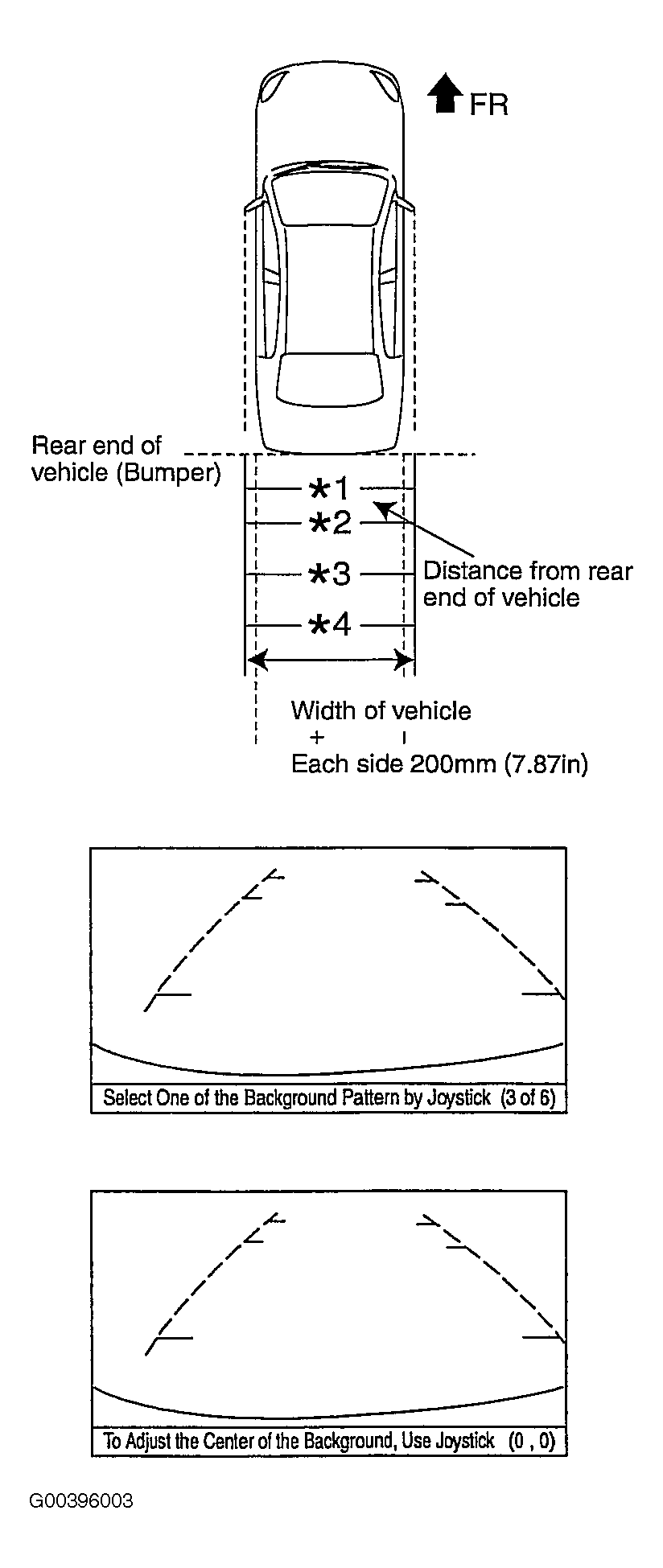

   Fig 1: Setting Side Distance Guideline Correction

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • *1: 0.45 m (1.5 feet)
   • *2: 0.91 m (3.0 feet)
   • *3: 2.13 m (7.0 feet)
   • *4: 3.04 m (10 feet)
2. Select "REARVIEW" in "Confirmation/Adjustment mode".
3. Using the joy stick, select the pattern closest to the prepared correction line among the 6 guideline patterns, then press "ENTER" button.
4. Carefully adjust the center of the background vertically and horizontally in the range of 8 - 8. Align it with the prepared line, and press the "ENTER" button.
5. The adjustment is completed.
