Disassembly
Disassembly And Assembly For MULTIFUNCTION Switch: Disassembly
Remove the screw (7).
Remove the switches.

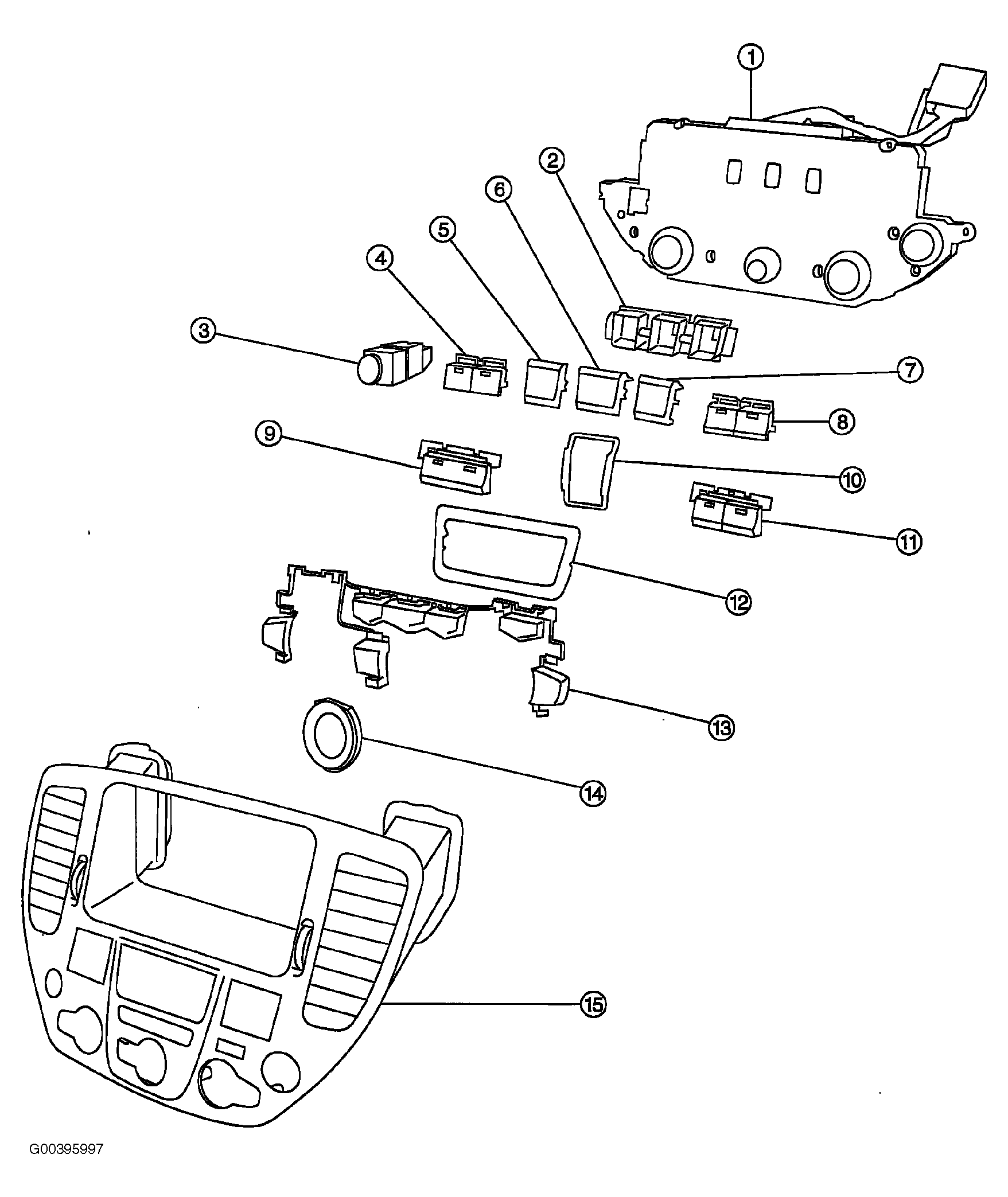

Fig 1: Disassembly & Assembly For Multifunction Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
