System Description
›
Setting Of Vehicle Status
›
Adjustable Vehicle Status
Adjustable Vehicle Status

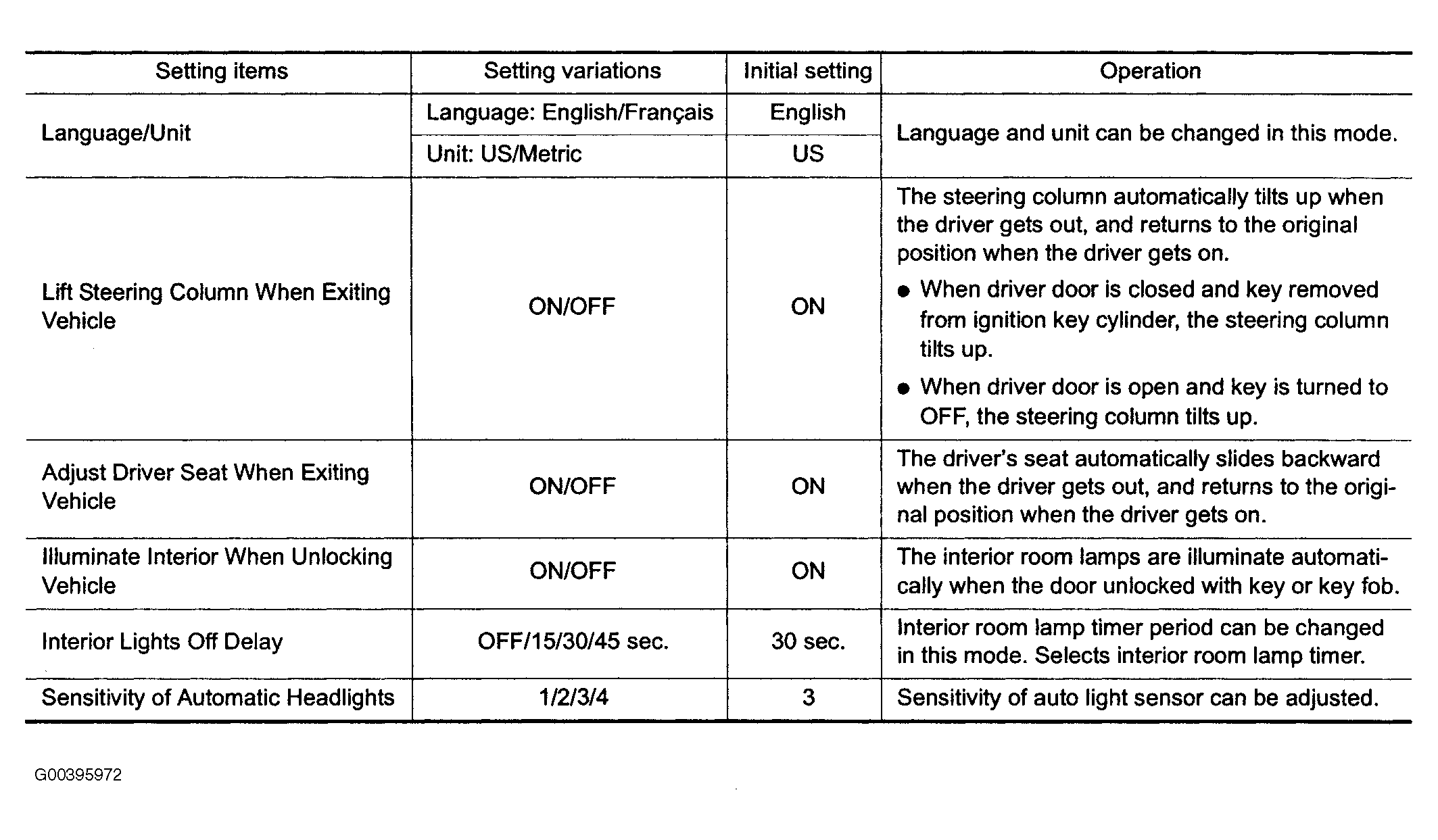

Fig 1: Adjustable Vehicle Status (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

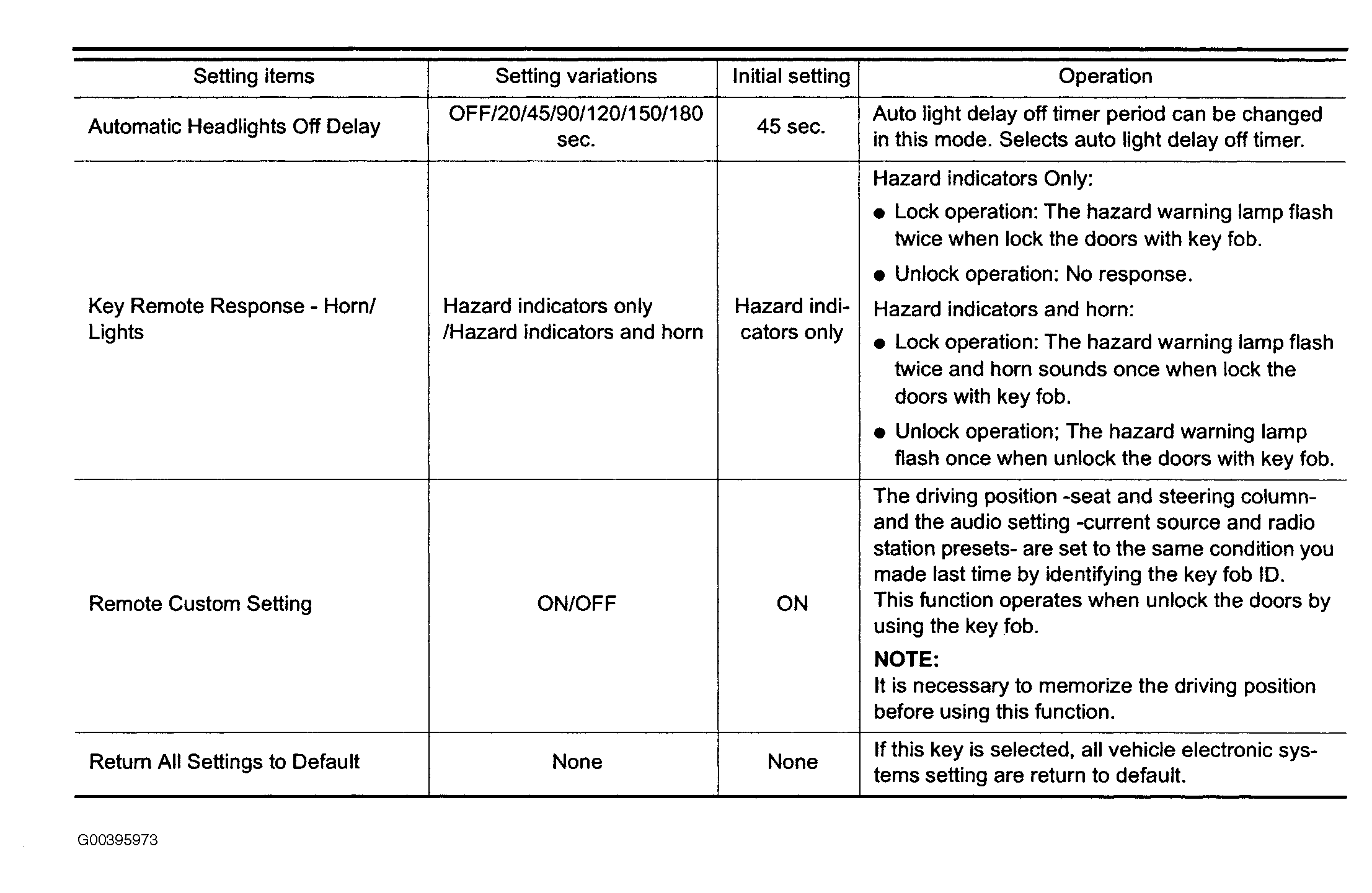

Fig 2: Adjustable Vehicle Status (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
