Vehicle Information And Integrated Switch System/Without Navigation System: Schematic

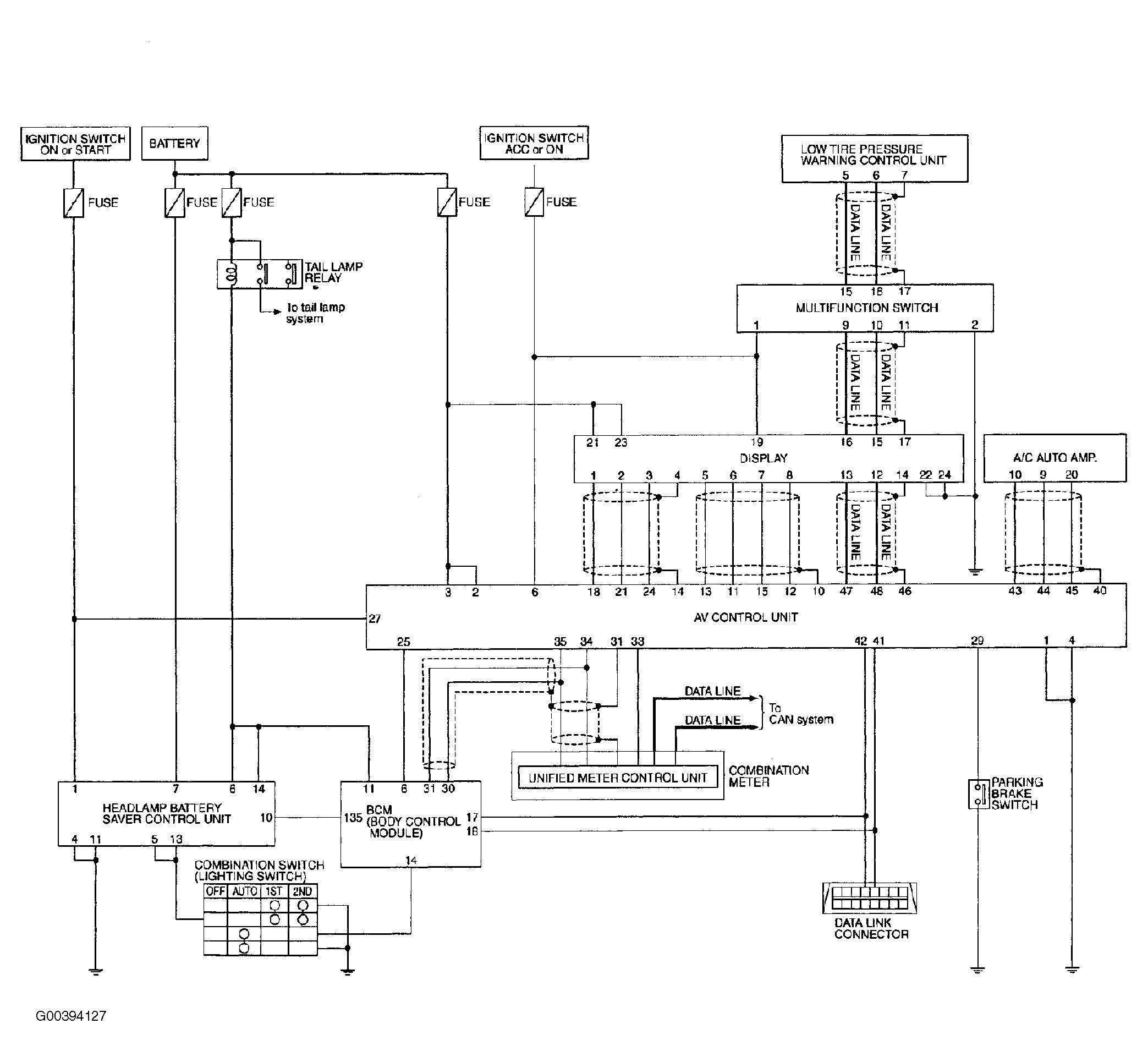

Fig 1: Schematic
G00394127Courtesy of NISSAN MOTOR CO., U.S.A.

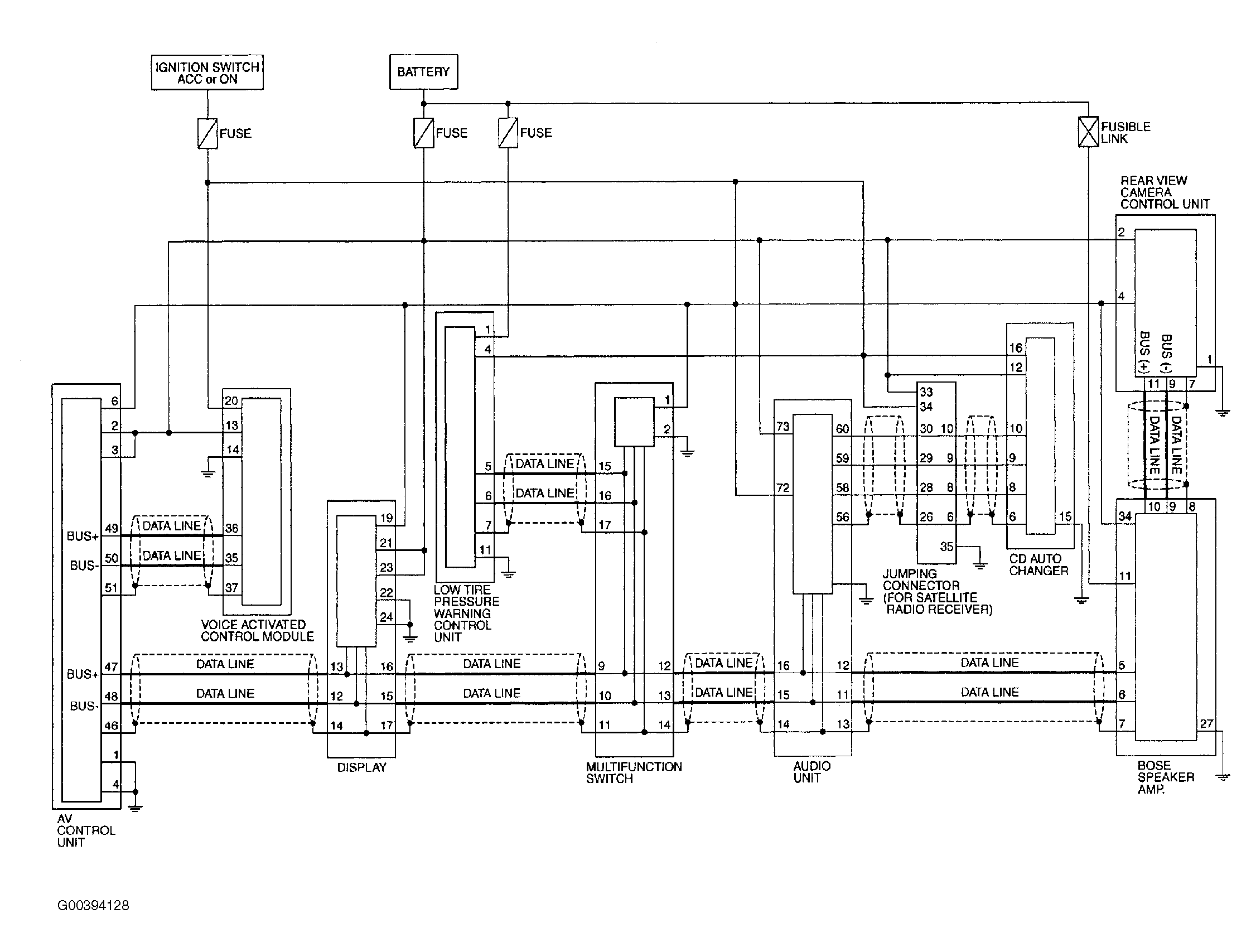

Fig 1: Schematic
G00394128Courtesy of NISSAN MOTOR CO., U.S.A.
