Adjustable Vehicle Status

Fig 1: View Of Vehicle Electronic Systems Display (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: View Of Vehicle Electronic Systems Display (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: View Of Vehicle Electronic Systems Display (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

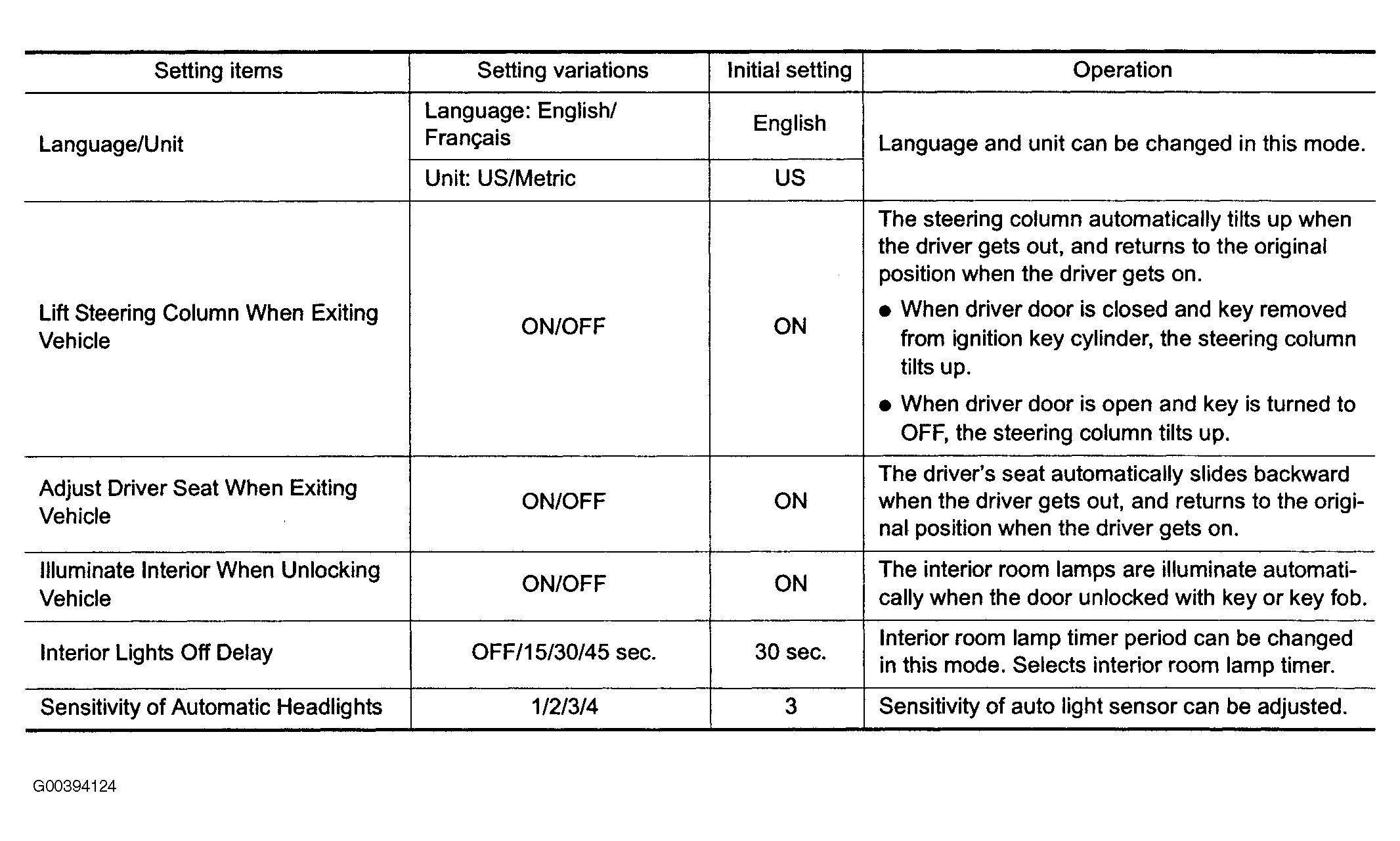

Fig 4: Adjustable Vehicle Status Table (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

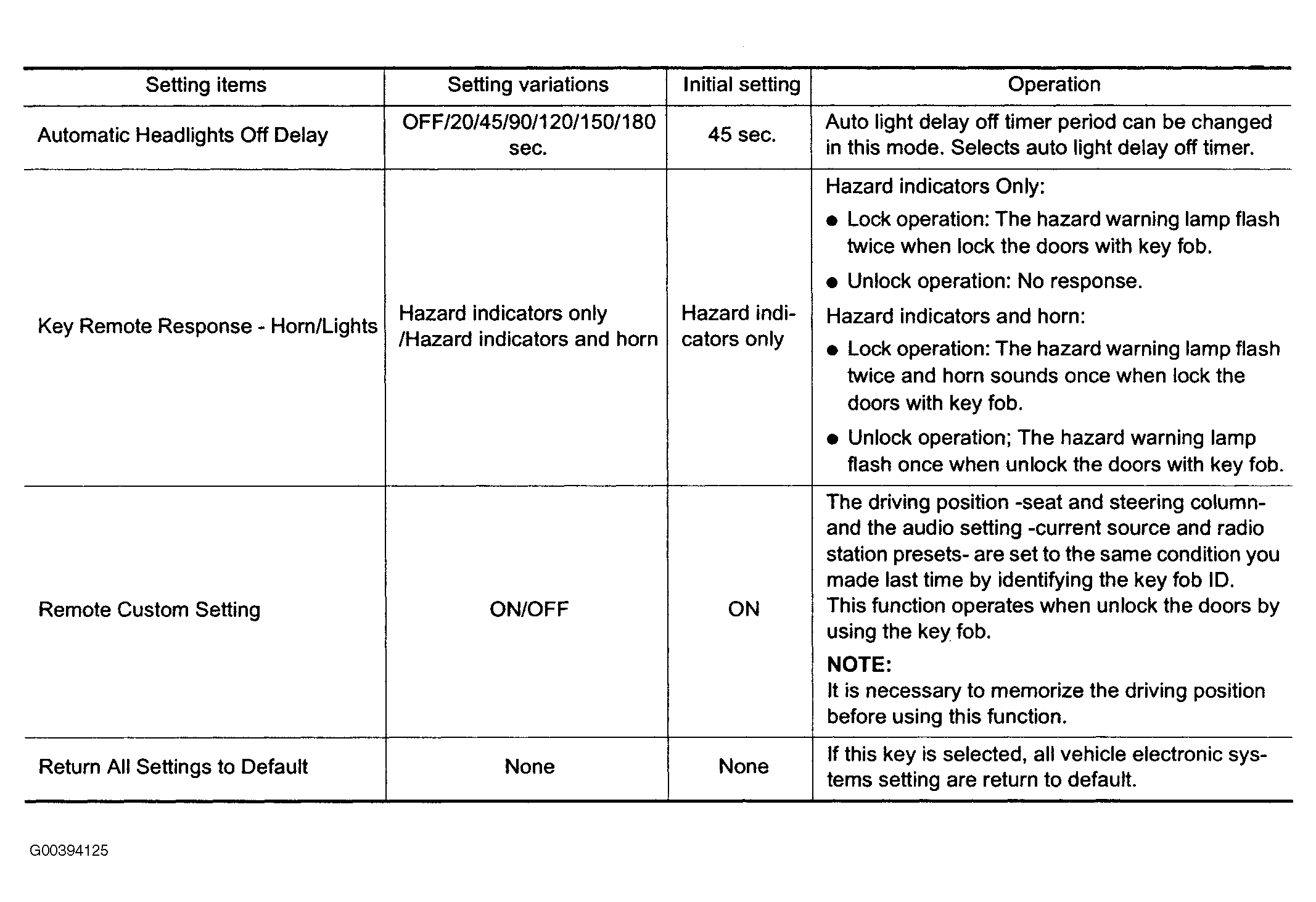

Fig 5: Adjustable Vehicle Status Table (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
