Terminals And Reference Value For BCM

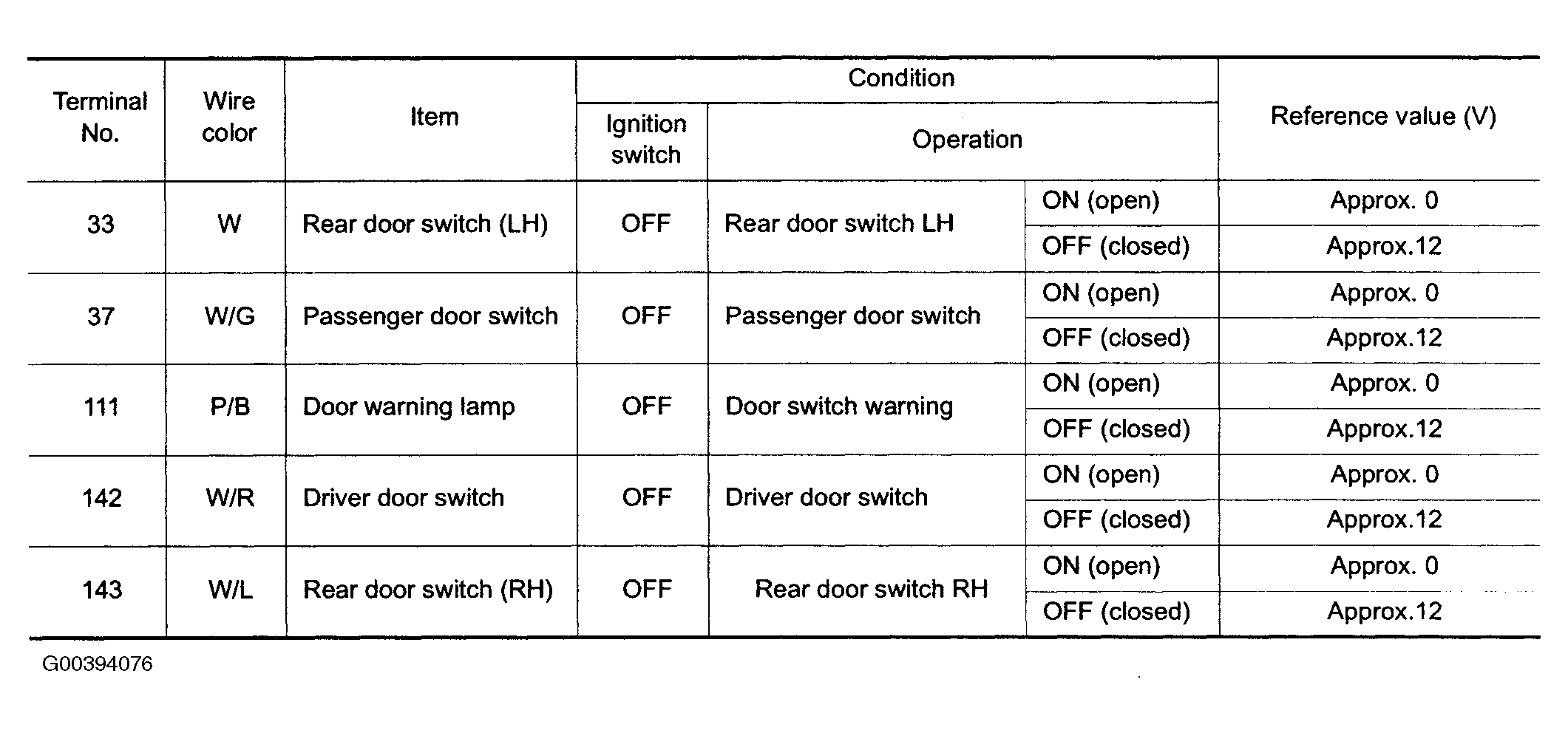

Fig 1: Terminals And Reference Value For BCM
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
