Work Steps

When removing instrument panel and pad, combination meter, display unit or console assembly, take steps in the order shown by ( ) numbers below.

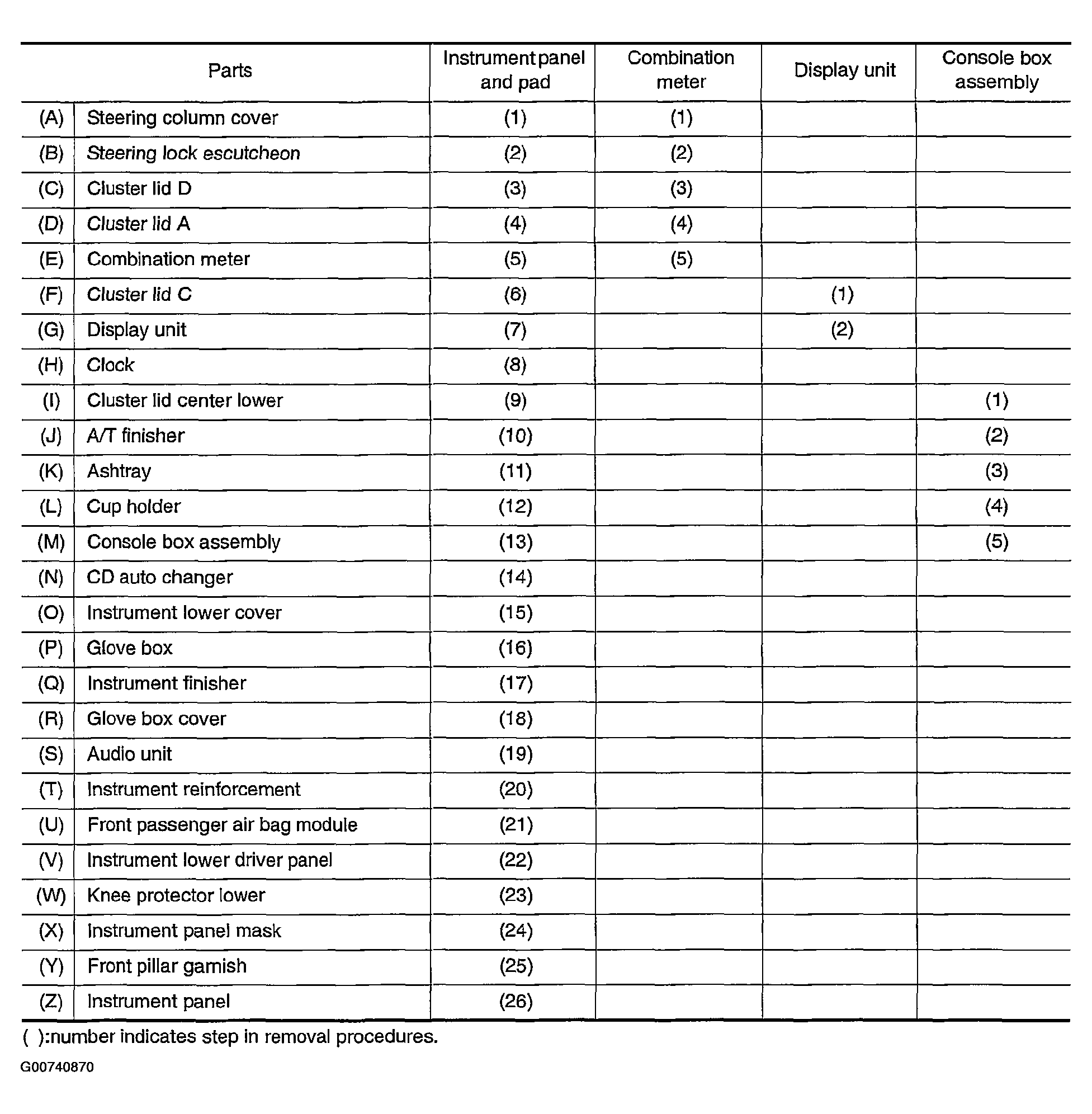

Fig 1: Displaying Work Steps For Instrument Panel Removal

Courtesy of NISSAN MOTOR CO., U.S.A.
