Overheating Cause Analysis
›
Troubleshooting Chart
Troubleshooting Chart

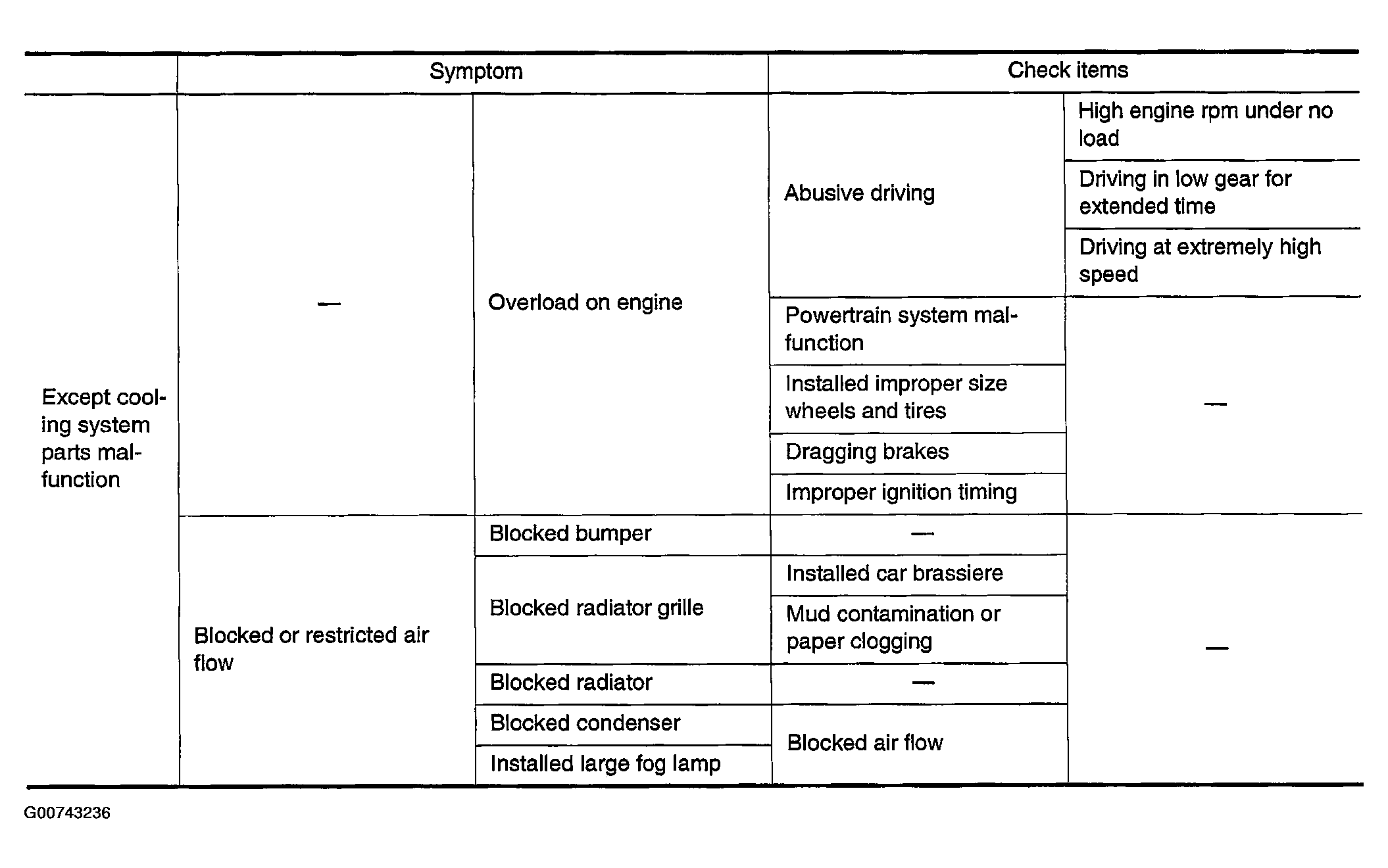

Fig 1: Displaying Overheating Cause & Troubleshooting Analysis Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

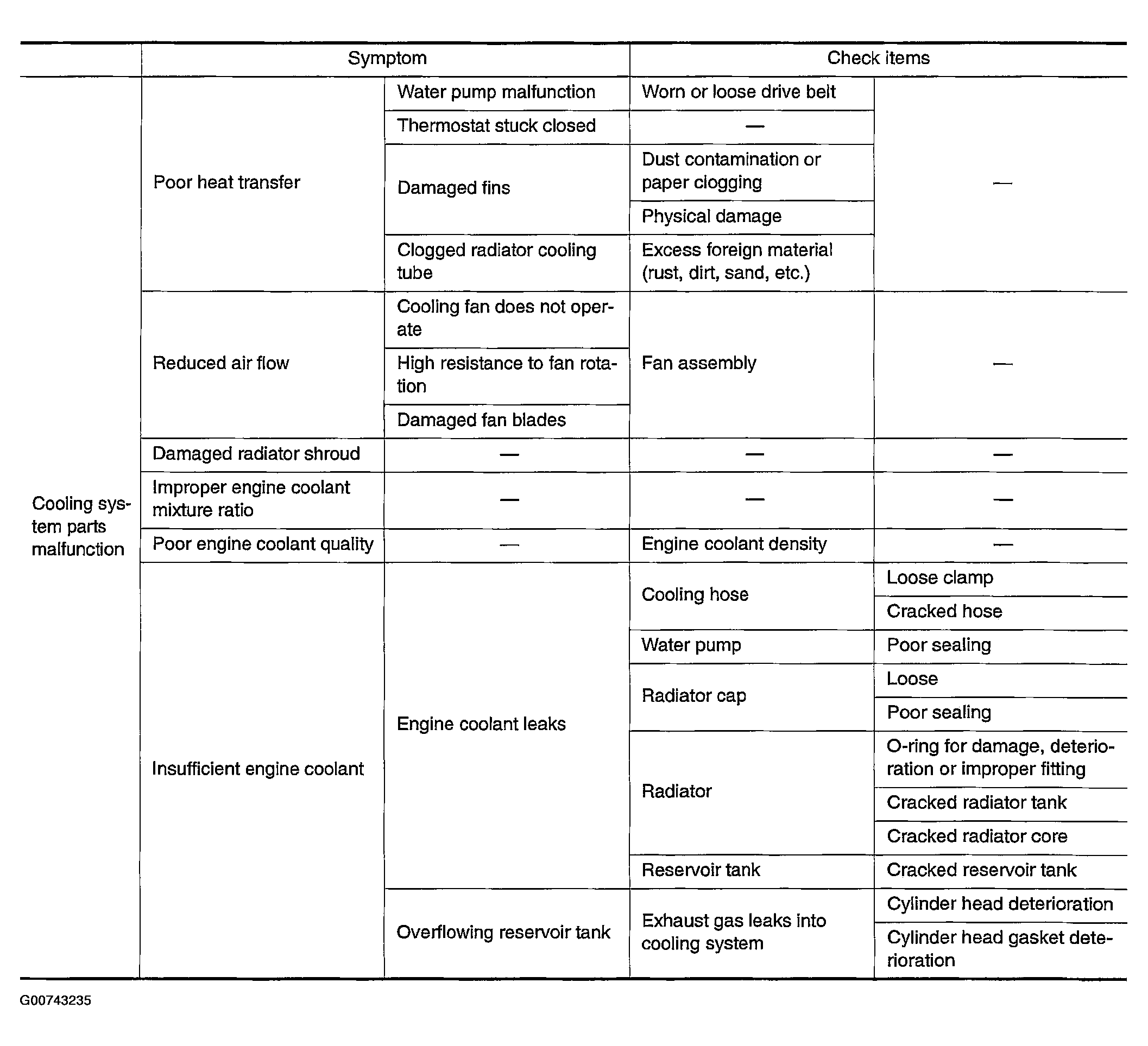

Fig 2: Displaying Overheating Cause & Troubleshooting Analysis Chart (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
