DTC P0122, P0123: TP Sensor
›
Consult-II Reference Value In Data Monitor Mode
Consult-II Reference Value In Data Monitor Mode
Specification data are reference values.

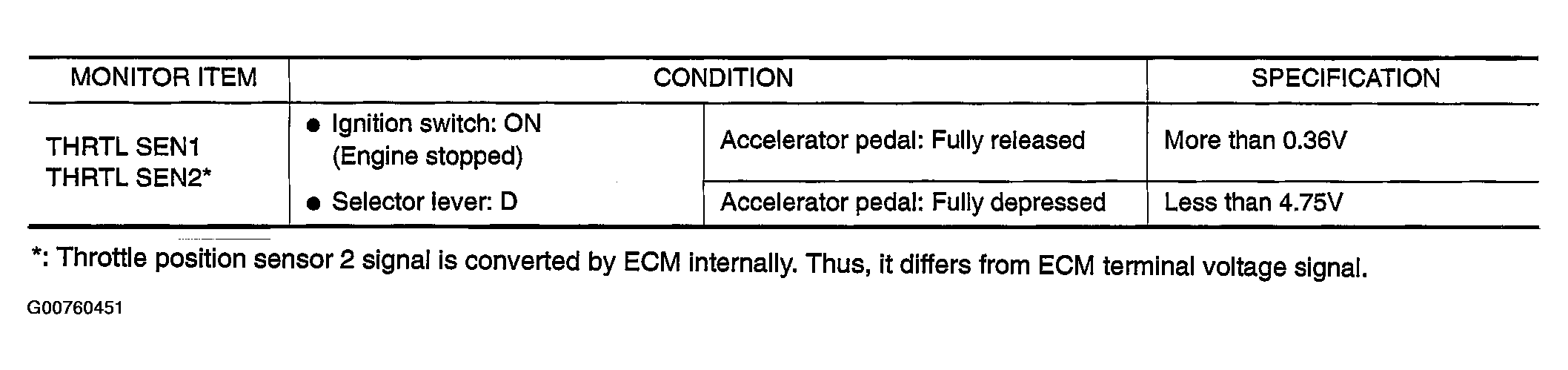

Fig 1: CONSULT-II Reference Value in Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
