DTC P0171, P0174: Fuel Injection System Function
›
Wiring Diagram
›
Bank 1
Bank 1

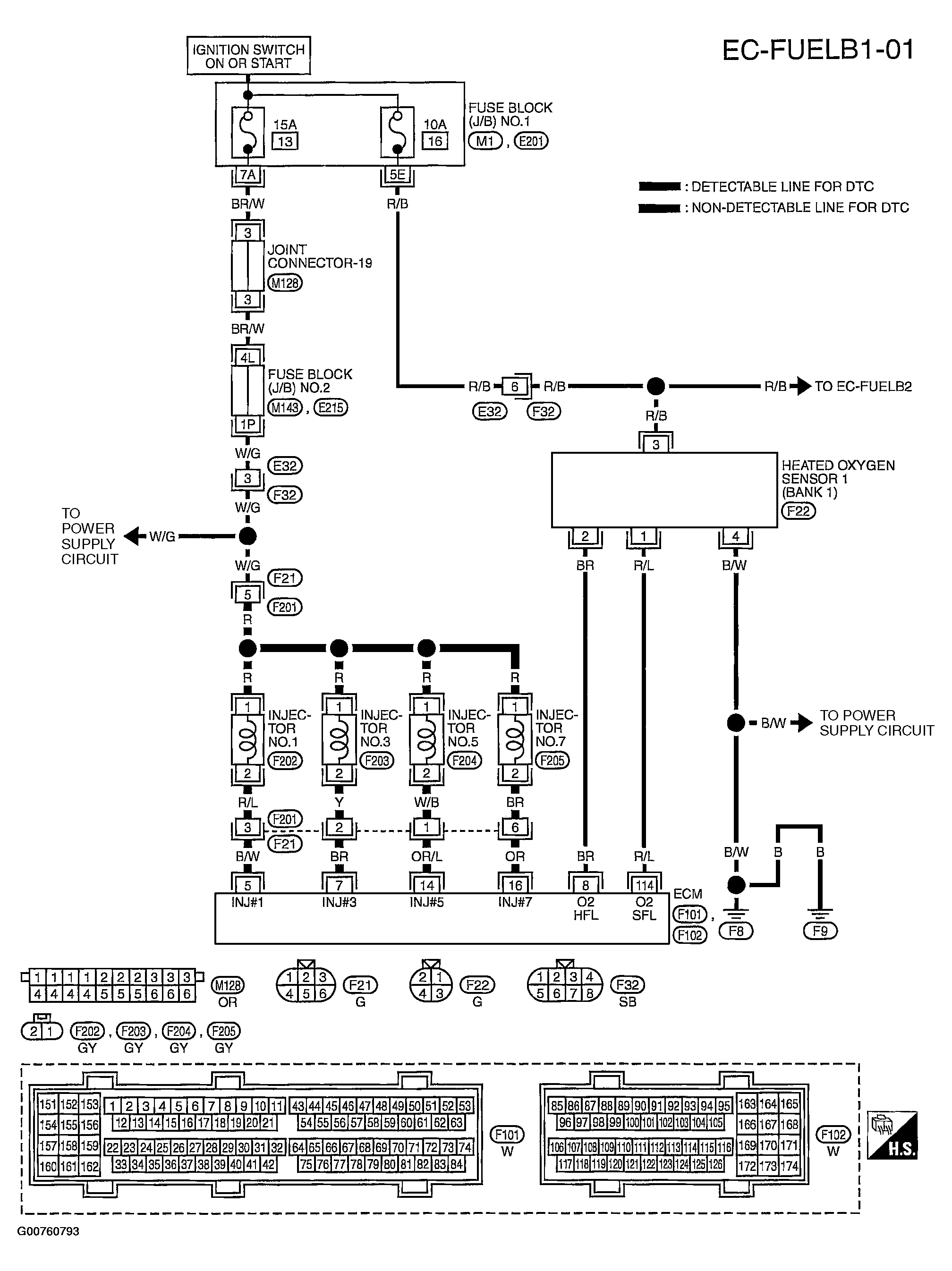

Fig 1: Bank 1 Circuit Diagram - ER-FUELB1-01
