2. Check Stop Lamp Switch Power Supply Circuit

1. Disconnect stop lamp switch harness connector.

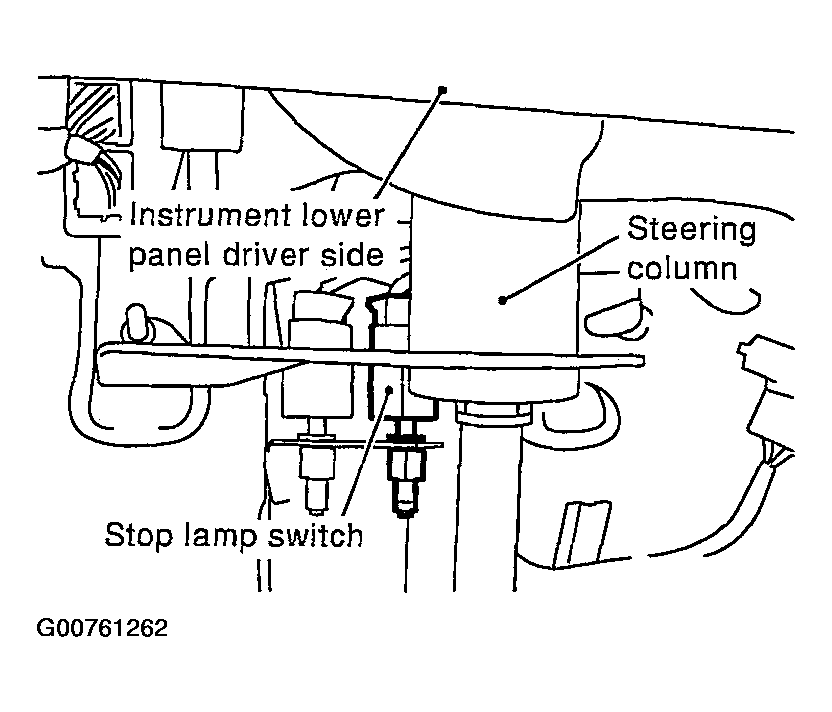

   Fig 1: Locating Stop Lamp Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
   1. Voltage: Battery voltage

Fig 2: Checking voltage between stop lamp switch terminal 1 & ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: GO TO 3.
