Repair and Diagnosis
›
Engine Performance
›
Engine Control System
›
Trouble Diagnosis
›
Circuit Diagram
Circuit Diagram
Fig 1: Circuit Diagram (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

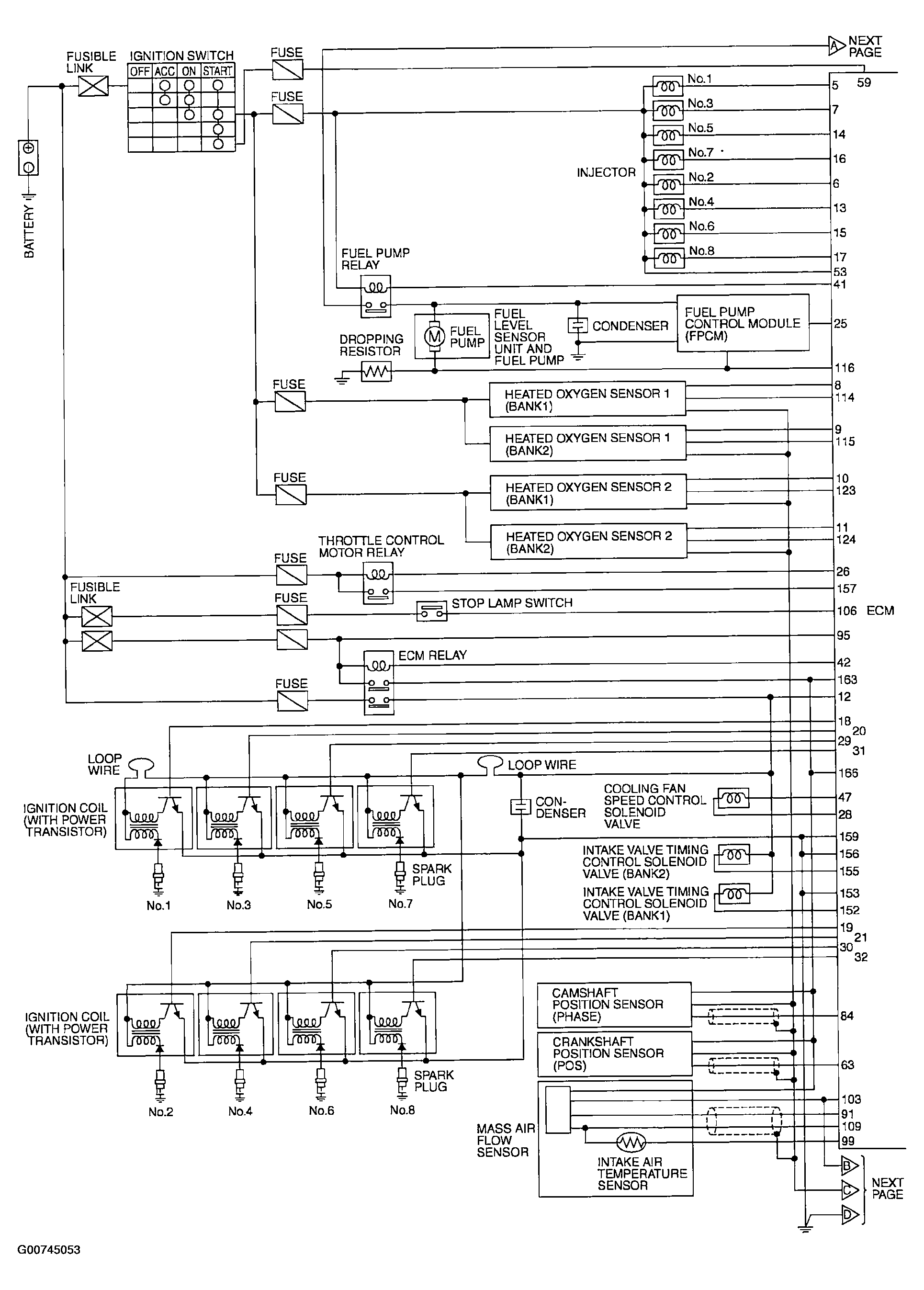

Fig 2: Circuit Diagram (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
