Data Monitor Mode

Monitored Item

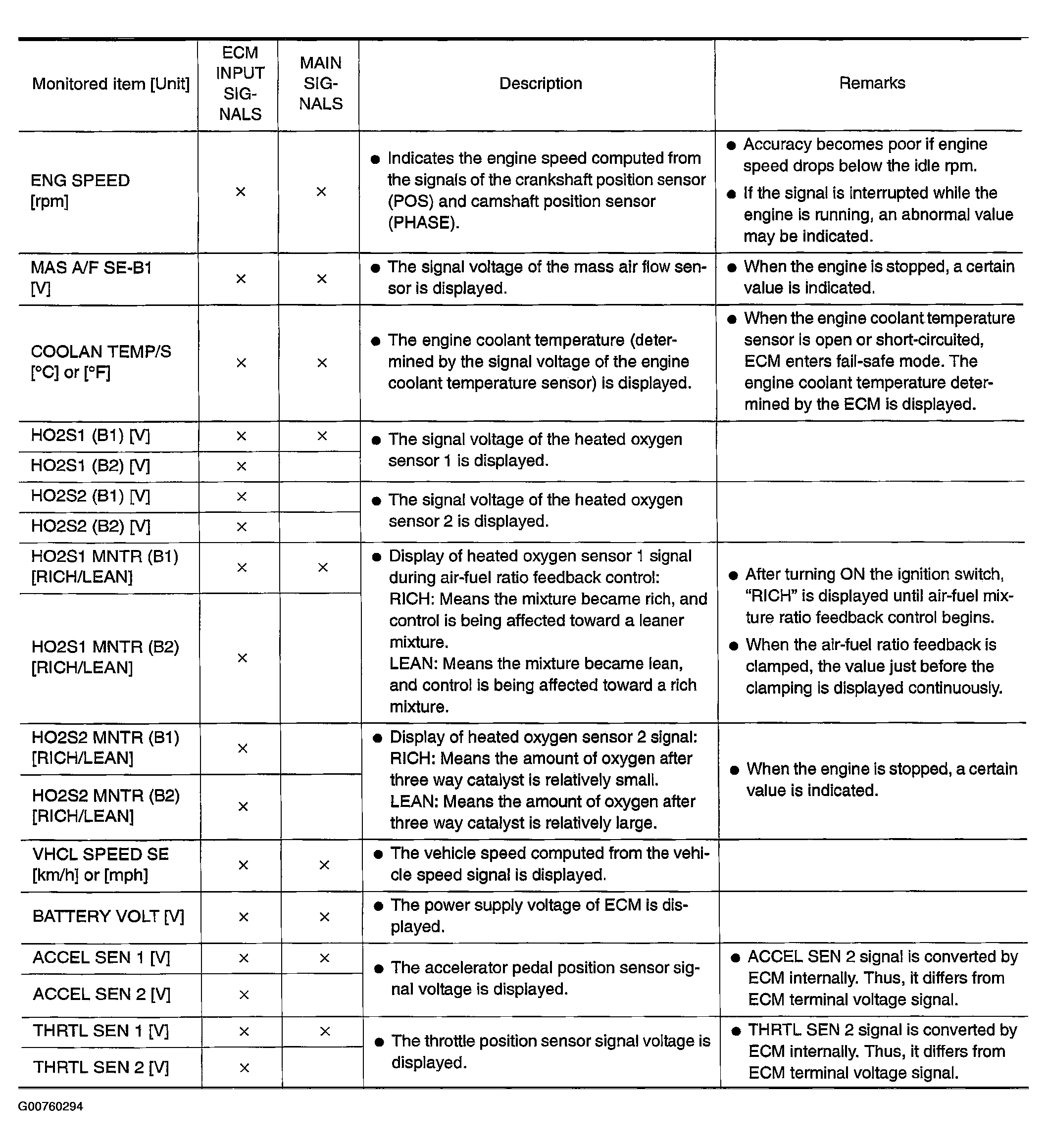

Fig 1: Monitored Items (1 Of 4)

G00760294

Courtesy of NISSAN MOTOR CO., U.S.A.

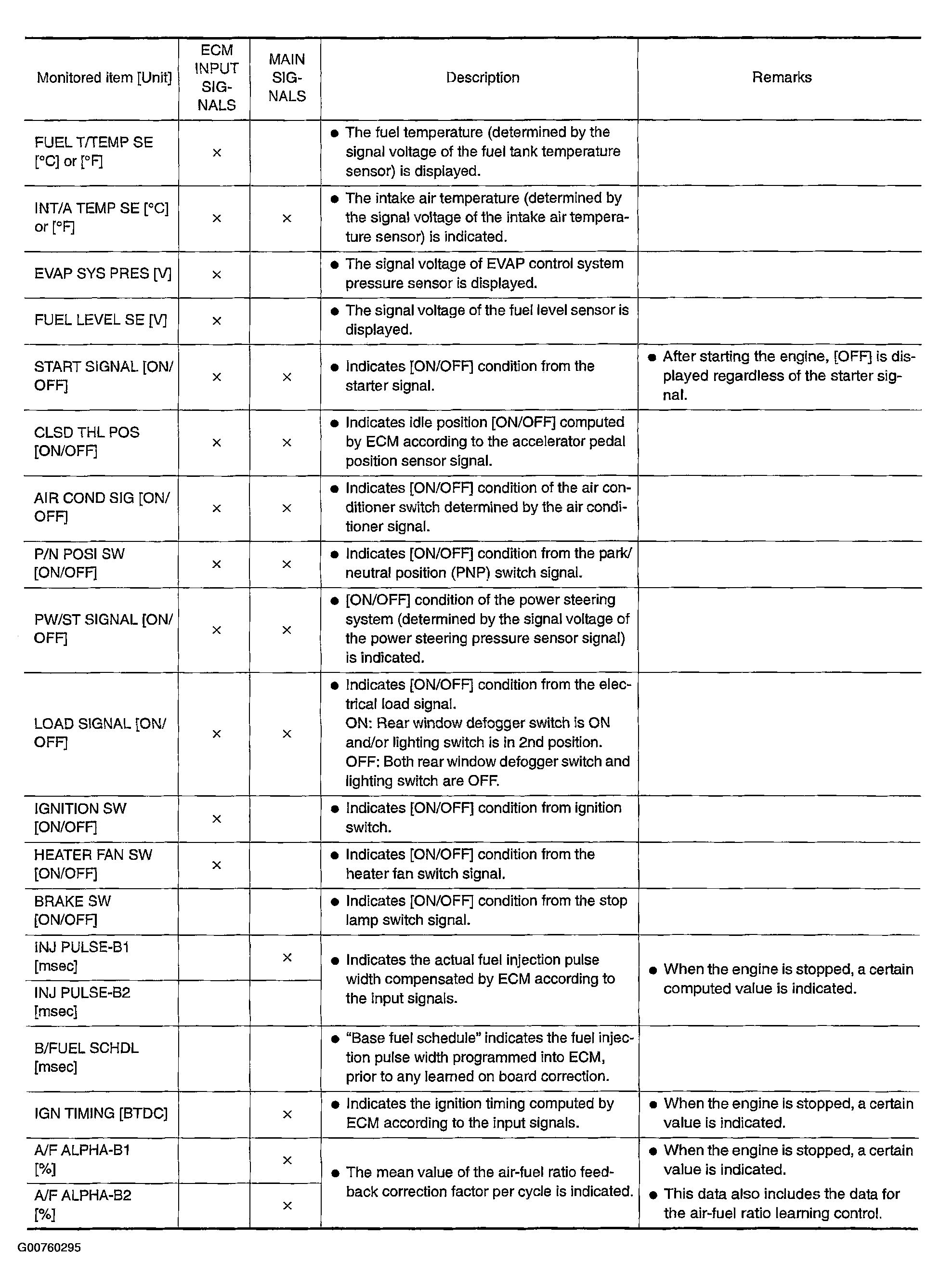

Fig 2: Monitored Items (2 Of 4)

G00760295

Courtesy of NISSAN MOTOR CO., U.S.A.

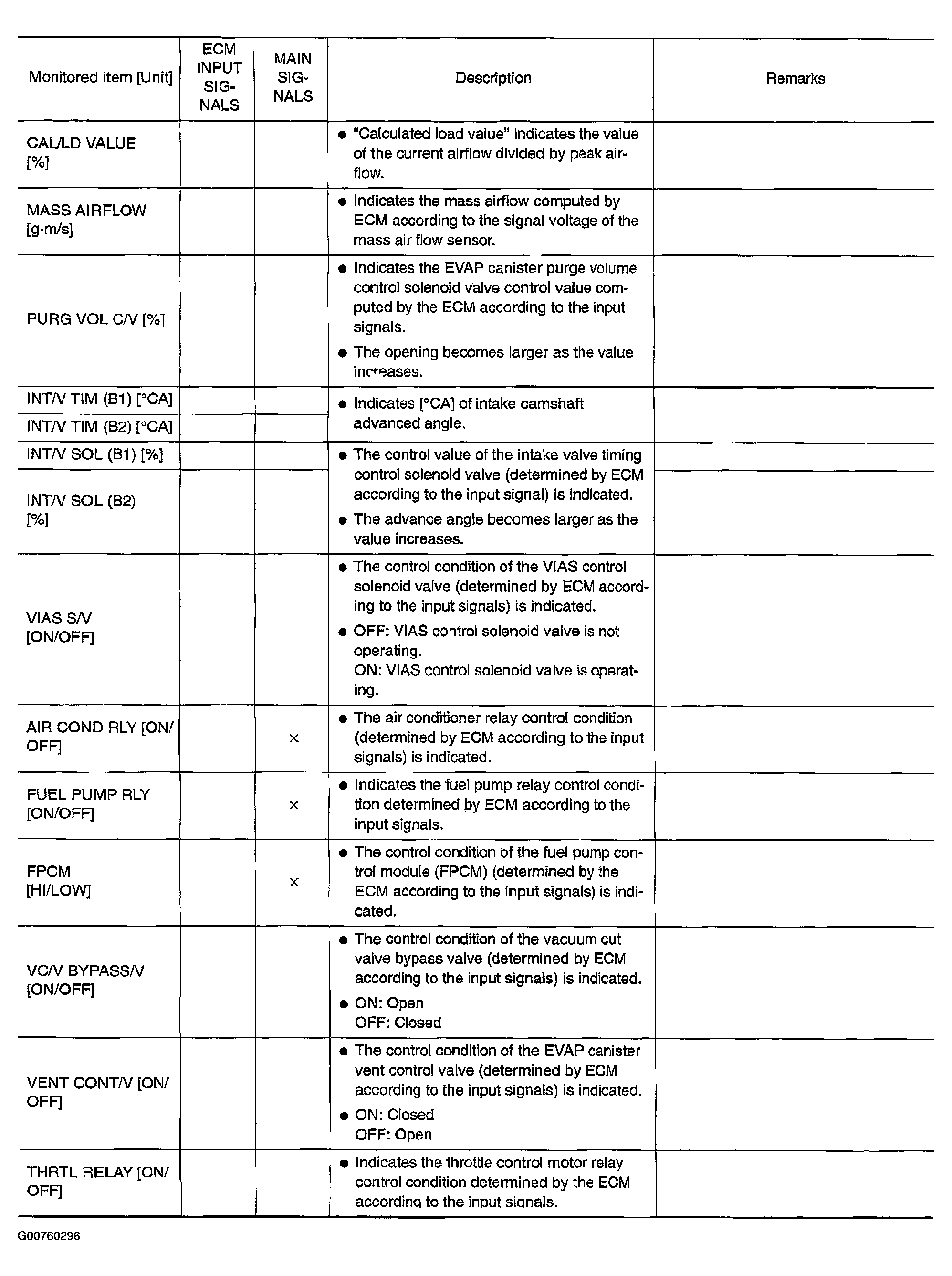

Fig 3: Monitored Items (3 Of 4)

G00760296

Courtesy of NISSAN MOTOR CO., U.S.A.

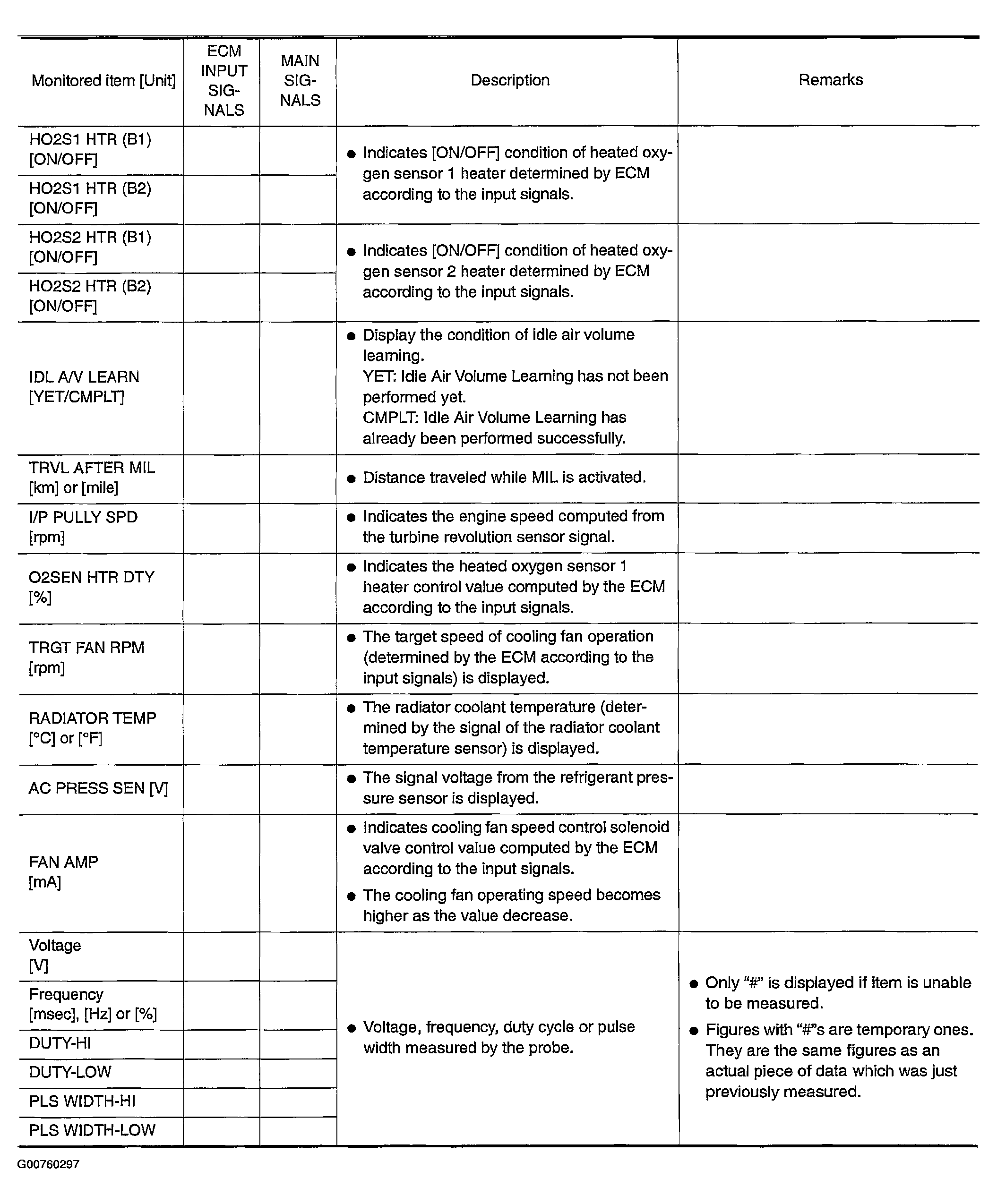

Fig 4: Monitored Items (4 Of 4)

G00760297

Courtesy of NISSAN MOTOR CO., U.S.A.
