Self-Diag Results Mode

Self Diagnostic Item

Regarding items of DTC and 1st trip DTC, refer to INDEX FOR DTC  .

Freeze Frame Data and 1st Trip Freeze Frame Data

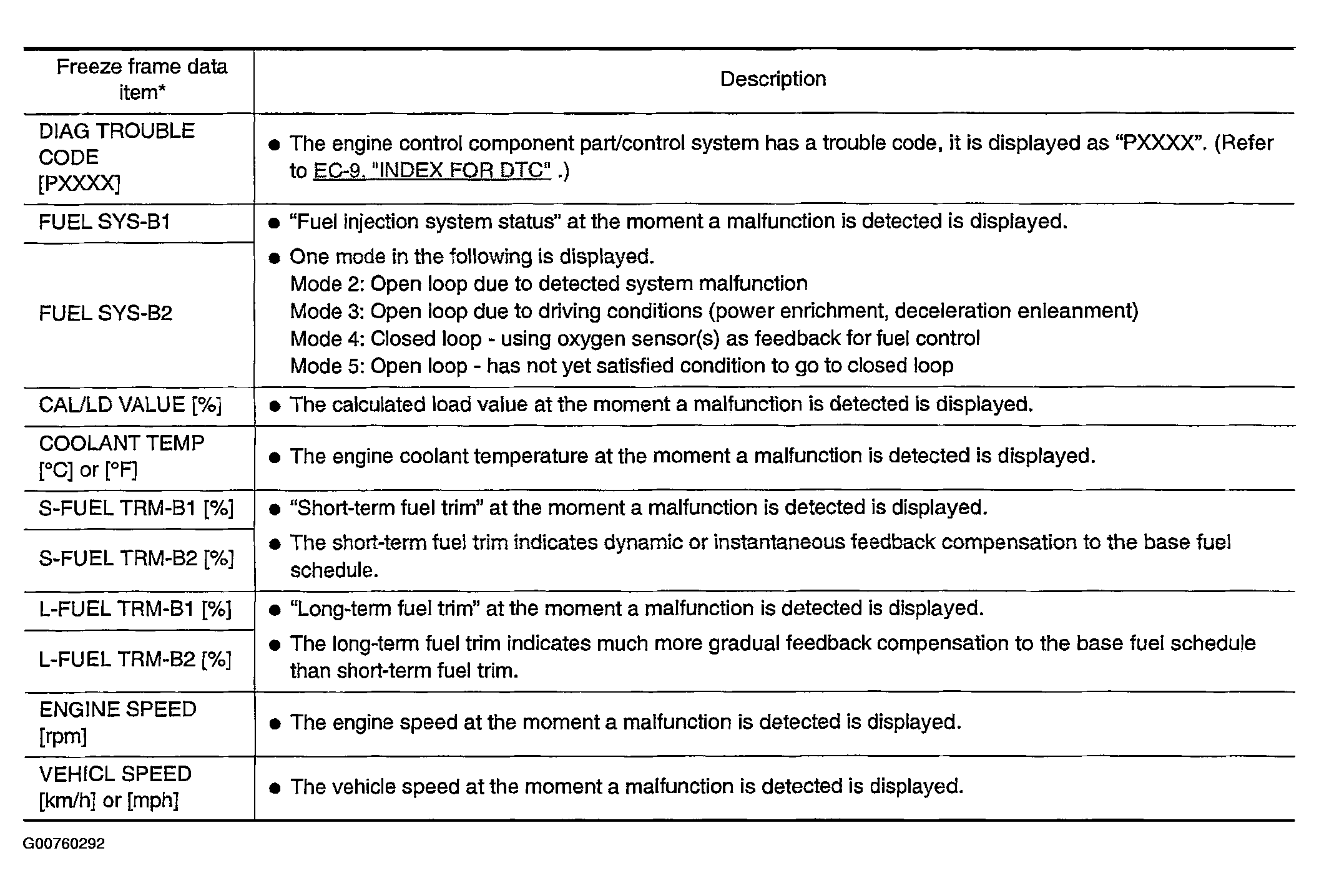

Fig 1: Freeze Frame Data & 1st Trip Freeze Frame Data (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

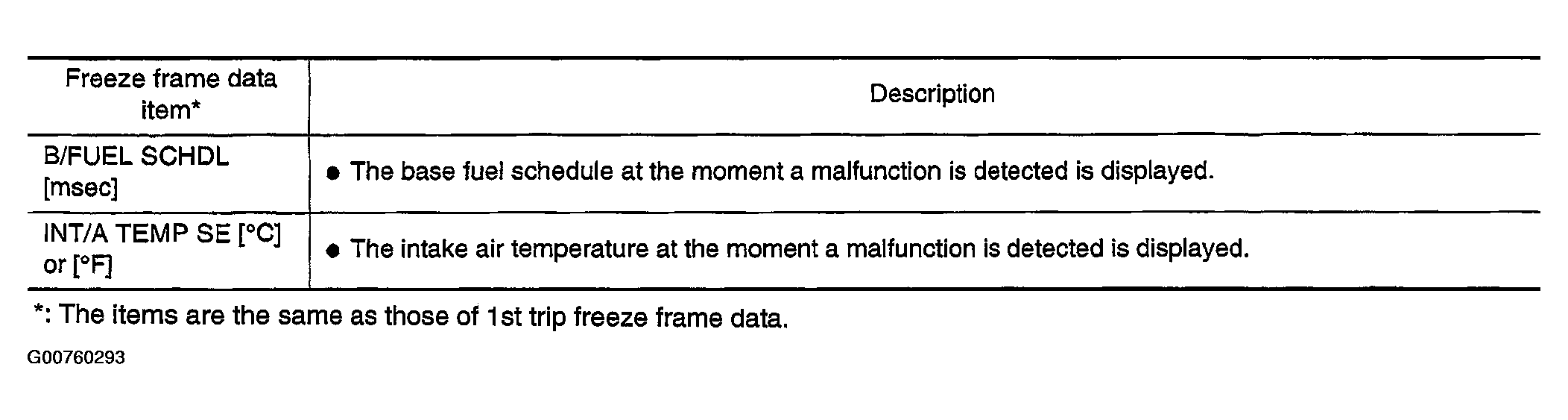

Fig 2: Freeze Frame Data & 1st Trip Freeze Frame Data (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
