Removal And Installation
›
Notes
Removal And Installation: Notes

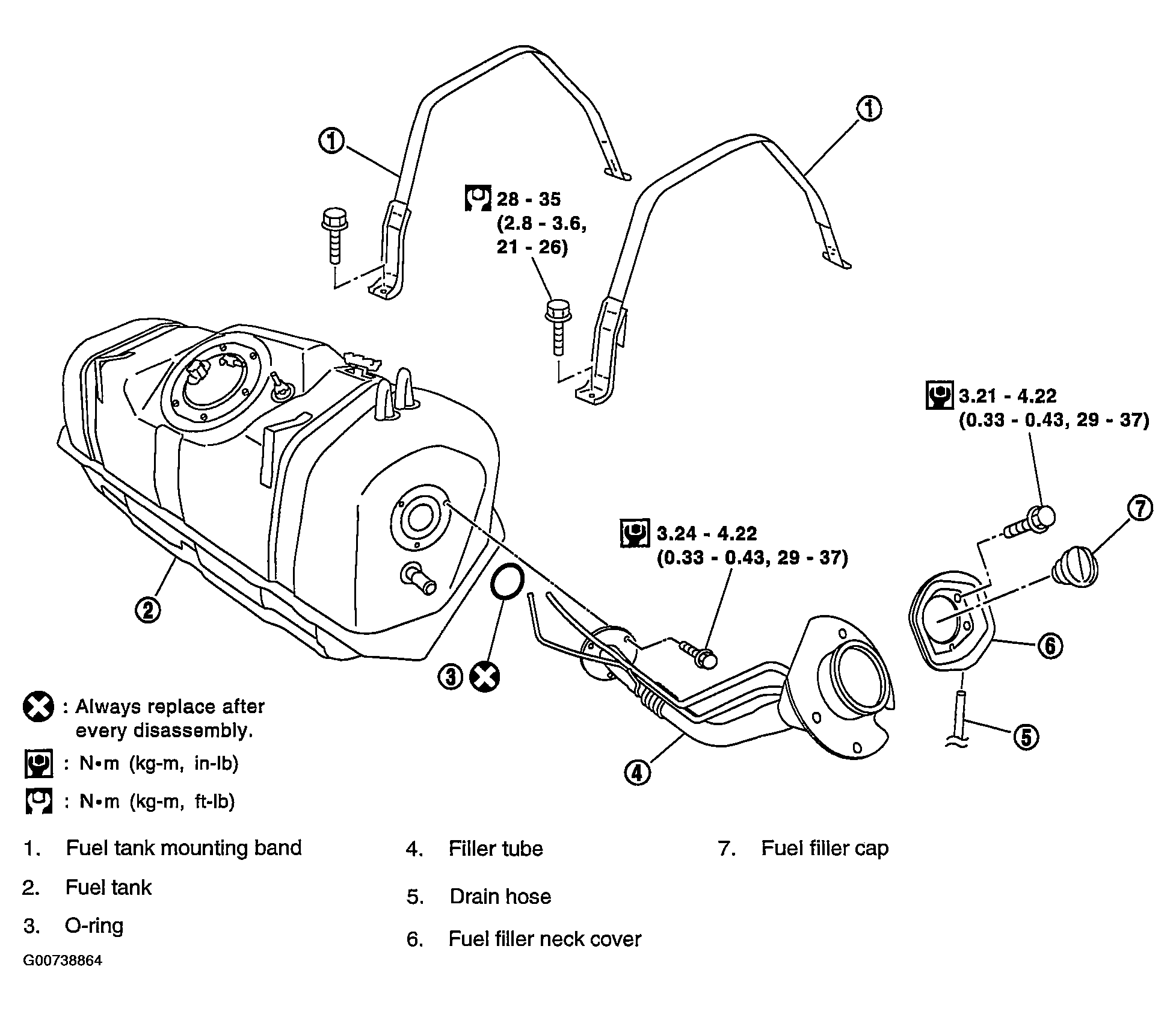

Fig 1: Displaying Fuel Tank & Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
