Hydraulic Circuit

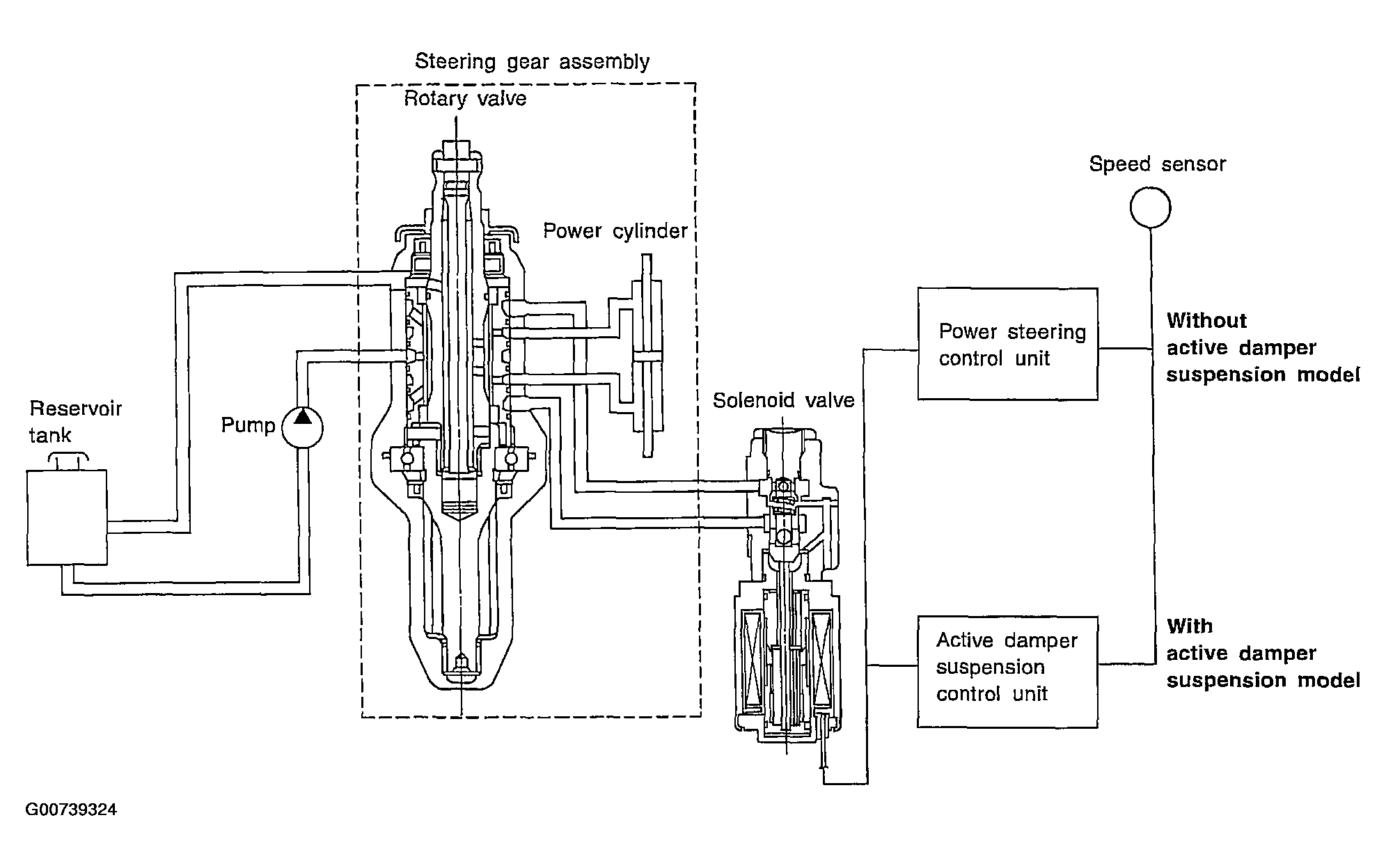

Fig 1: View Of Hydraulic Circuit

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: On models equipped with active damper suspension system, the solenoid valve is controlled by active damper suspension control unit, as shown in the above drawing. For "Wiring Diagrams" and "Trouble Diagnoses" of these models. Refer to TROUBLE DIAGNOSIS FOR ACTIVE DAMPER SUSPENSION .
