Hydraulic Line: Components

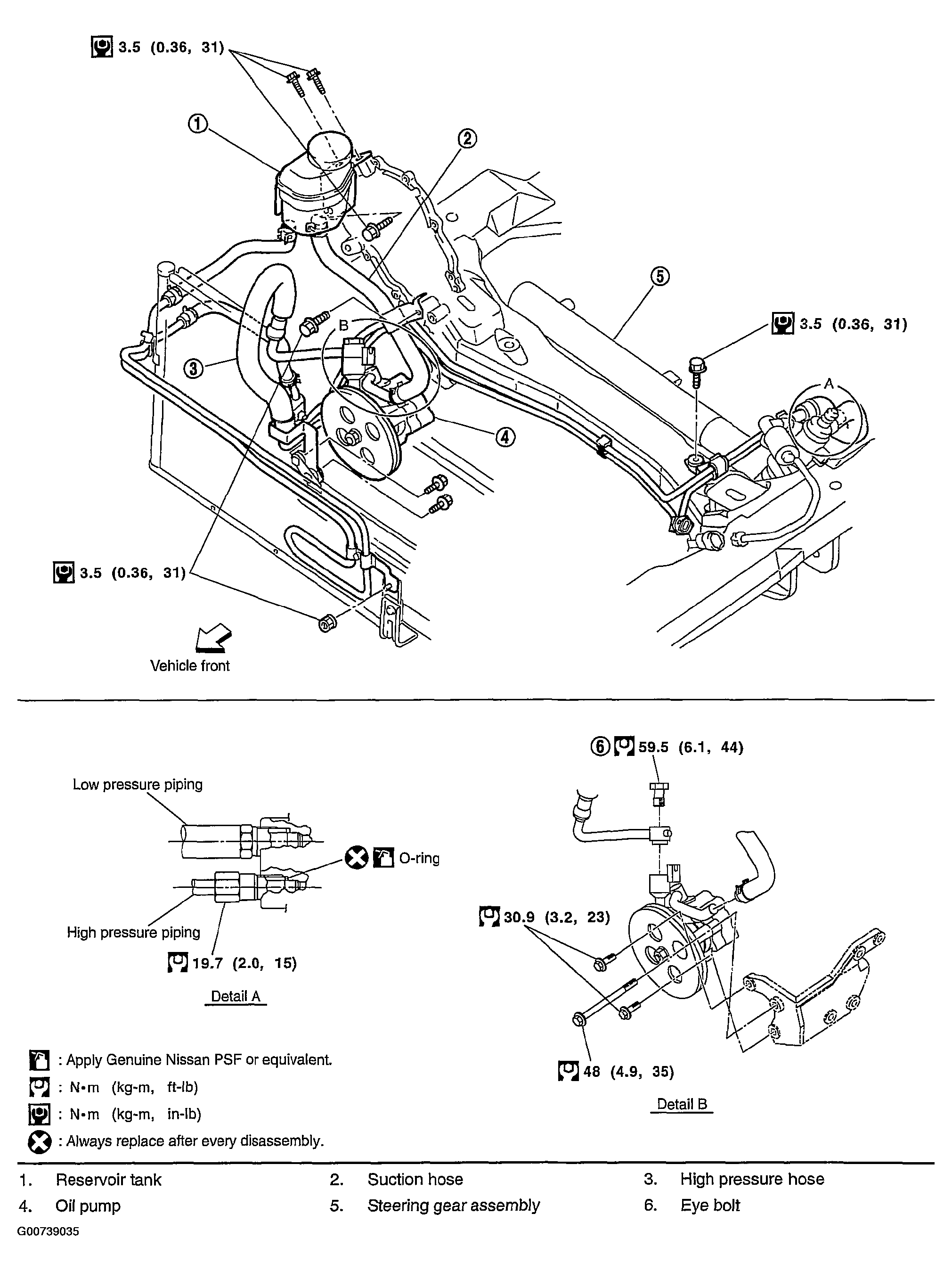

Fig 1: Displaying Hydraulic Line Components
G00739035Courtesy of NISSAN MOTOR CO., U.S.A.
