Using A CCK Gauge

Install CCK gauge attachment (SST): KV991040S0) as following procedure in wheel, then measure wheel alignment.

Remove wheel nuts (2), and install a guide bolt to hub bolt.
Screw adapter into plate body until it contacts body tightly.
Screw center plate into plate.
Insert plate on guide bolt. Put spring in, and then evenly screw both guide bolt nut. When fastening guide bolt nut, do not completely compress spring.

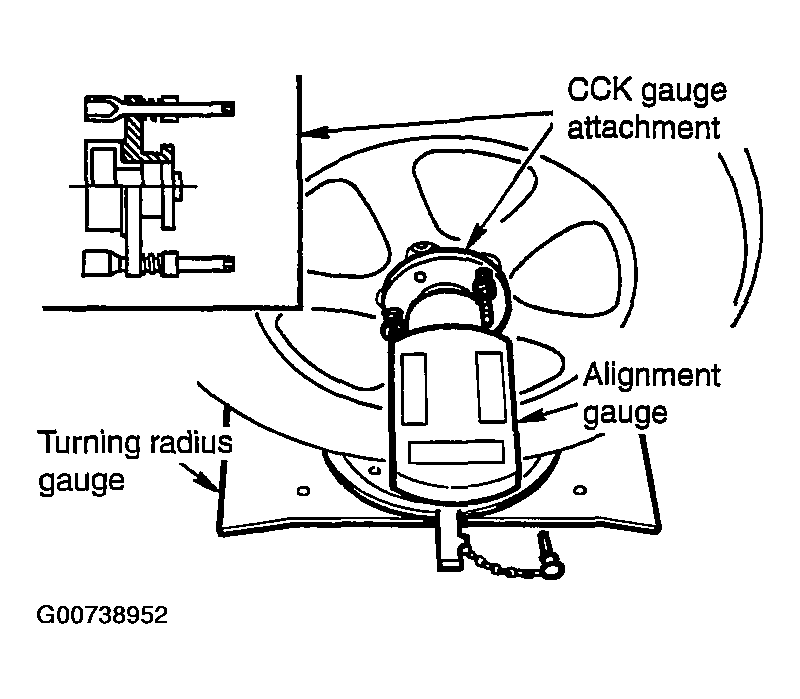

Fig 1: Identifying Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Place the dent of alignment gauge onto the projection of center plate and tightly contact them to measure.
- Camber, caster, kingpin inclination angles: Refer to SPECIFICATIONS .

  Fig 2: Identifying Alignment Gauge
  Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

If camber, caster, or kingpin inclination angle is outside the standard, check front suspension parts for wear and damage, and replace suspect parts if necessary.
King pin inclination angles is reference value, no inspection is required.
