Function Of Control Valve
Function Of Control Valve

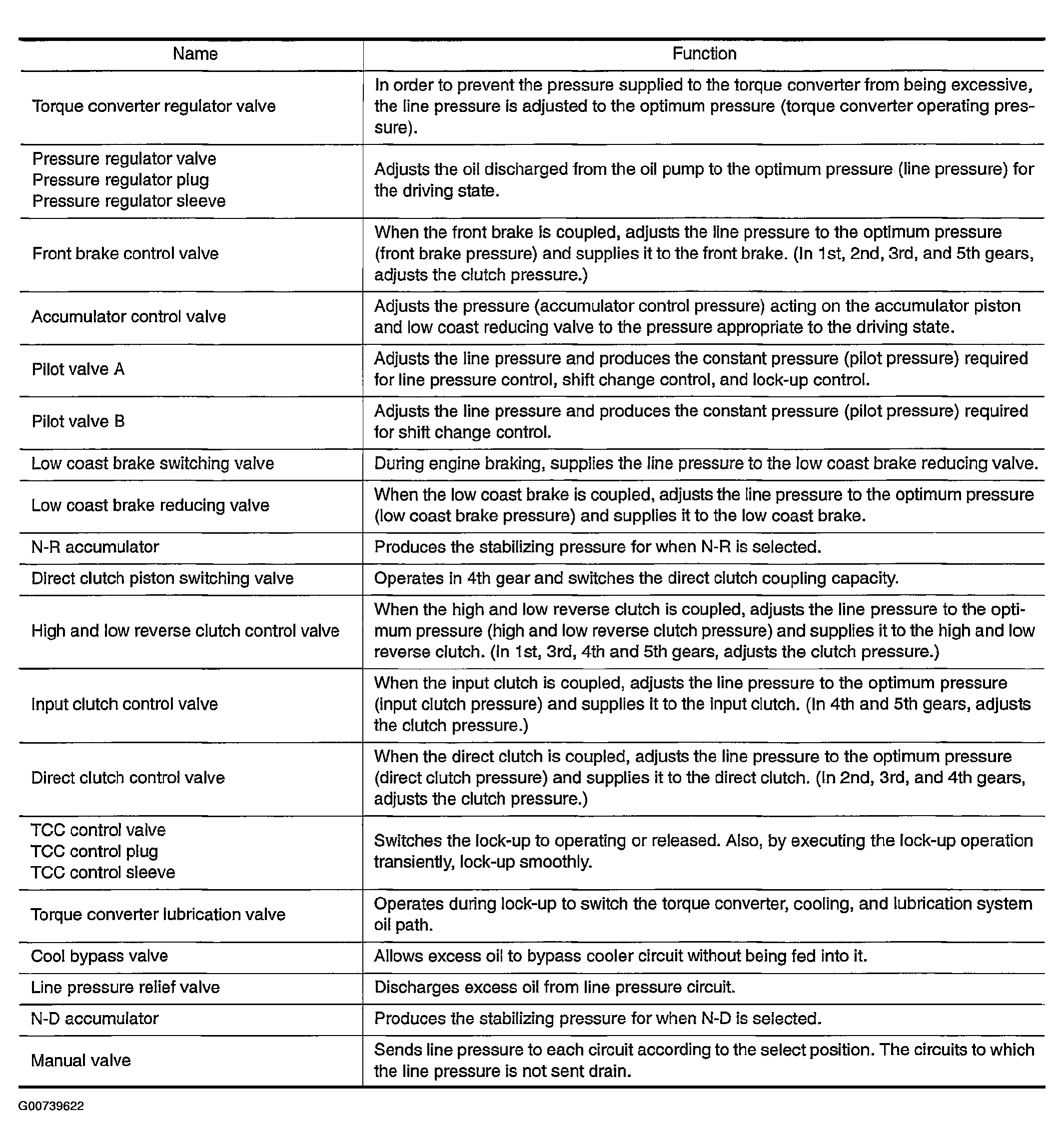

Fig 1: Function Of Control Valve
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
