Home › Infiniti › 2004 › Q45 › Repair and Diagnosis › Transmission › Automatic Trans › Diagnosis › On-Vehicle Service › Control Valve Assembly › Components

Control Valve Assembly: Components

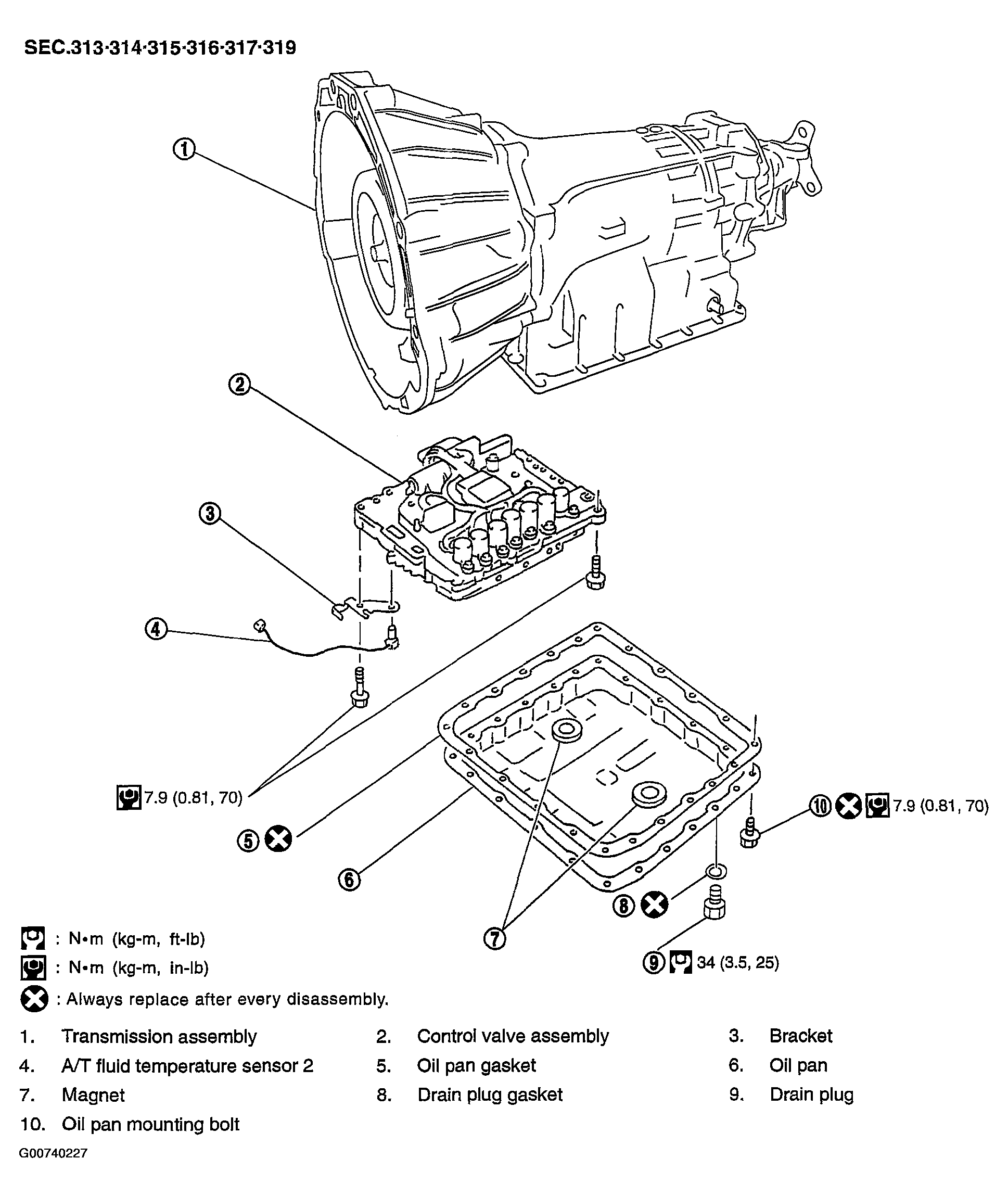

Fig 1: Component View
G00740227Courtesy of NISSAN MOTOR CO., U.S.A.
