Home › Infiniti › 2004 › Q45 › Repair and Diagnosis › Transmission › Automatic Trans › Diagnosis › On-Vehicle Service › Revolution Sensor › Components

Revolution Sensor: Components

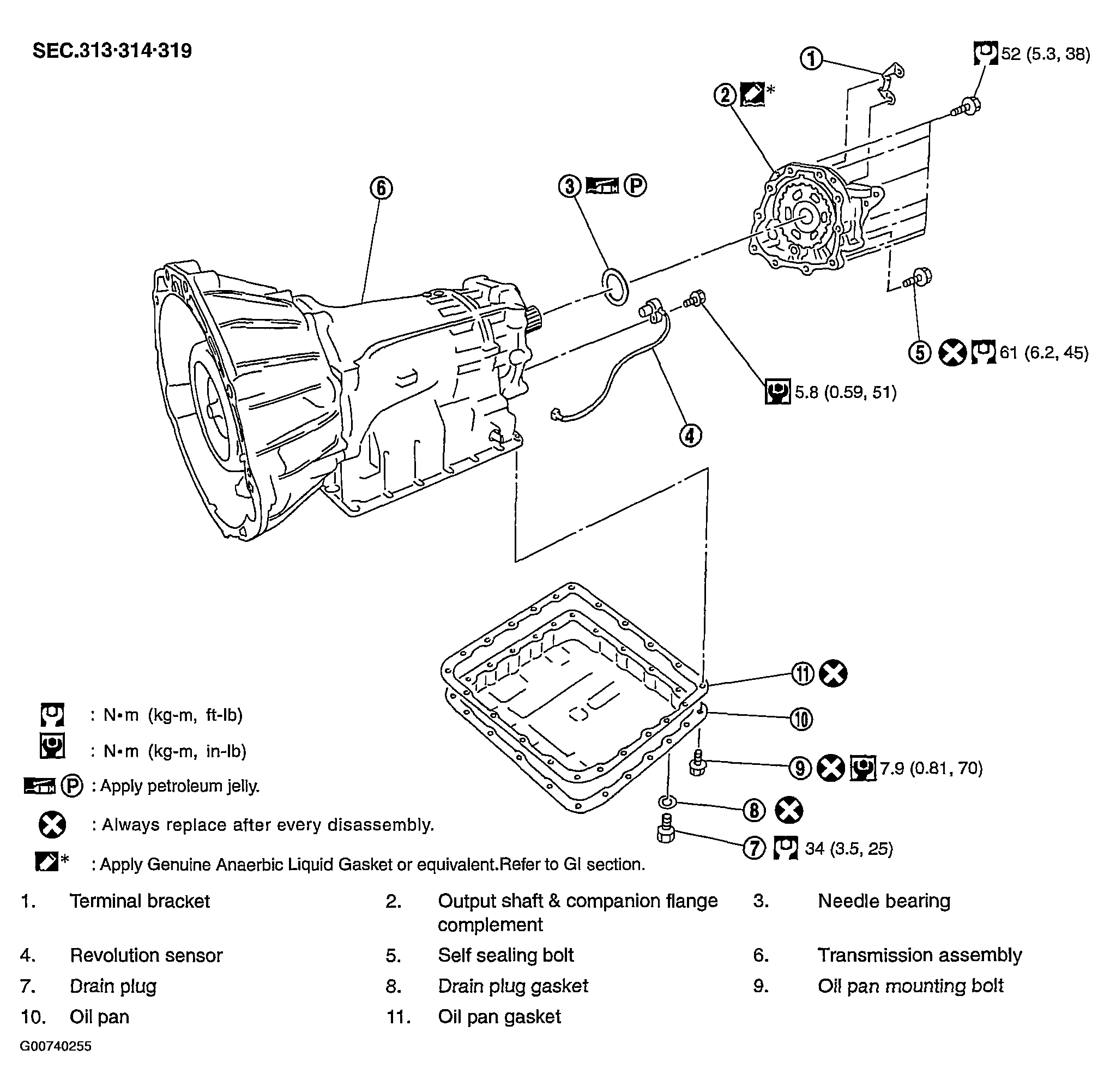

Fig 1: Component View
G00740255Courtesy of NISSAN MOTOR CO., U.S.A.
