Service Data And Specifications (SDS)
›
Solenoid Valves
Solenoid Valves

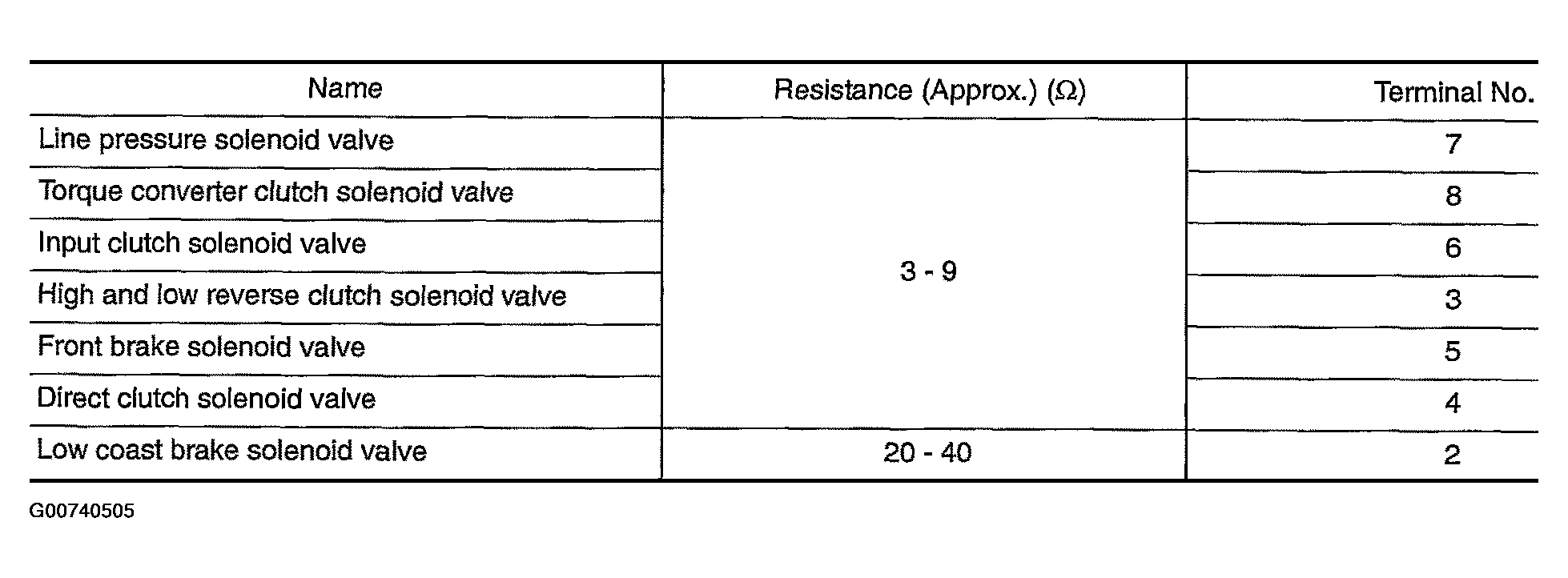

Fig 1: Solenoid Valves
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
