Write Configuration Procedure

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.
    2. Fig 1: Connecting Consult-II Converter To Data Link Connector
    G02249625Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    3. Fig 2: Identifying Consult-II (1 Of 7)
    G02249626Courtesy of NISSAN MOTOR CO., U.S.A.

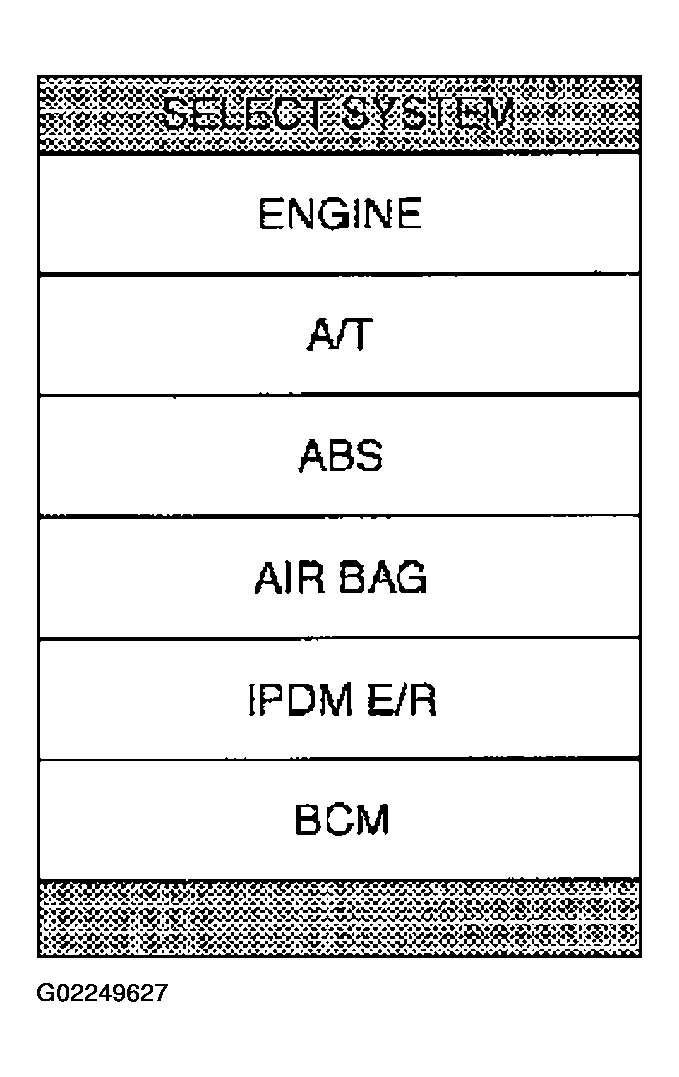

  3. Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to LAN Section to check data link connector (DLC) circuit.
    4. Fig 3: Identifying Consult-II (2 Of 7)
    G02249627Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.
    5. Fig 4: Identifying Consult-II (3 Of 7)
    G02249628Courtesy of NISSAN MOTOR CO., U.S.A.

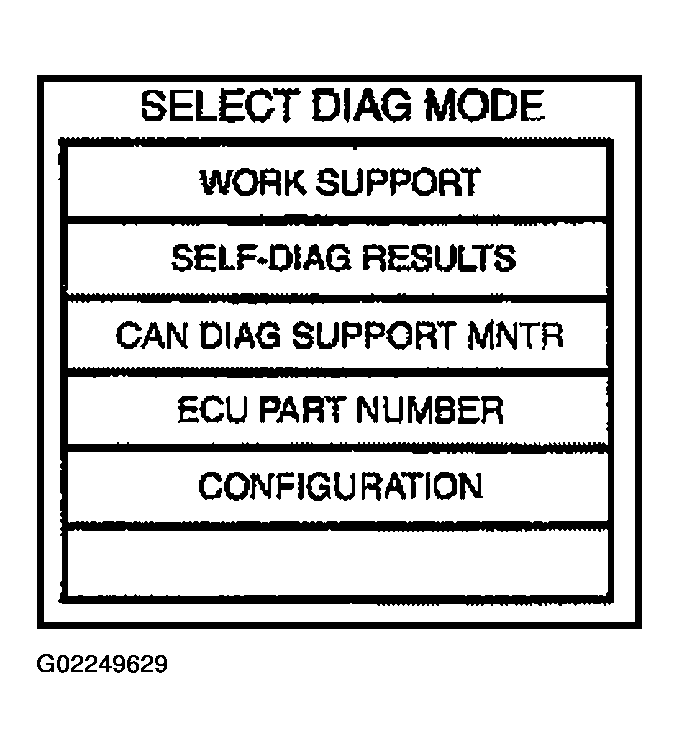

  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.
    6. Fig 5: Identifying Consult-II (4 Of 7)
    G02249629Courtesy of NISSAN MOTOR CO., U.S.A.

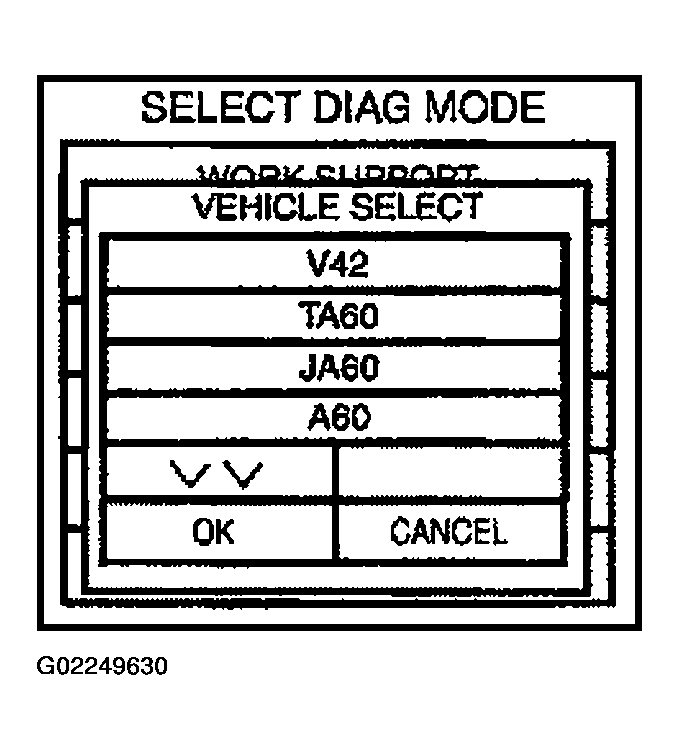

  6. Touch "OTHER" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION in GI section.
    7. Fig 6: Identifying Consult-II (5 Of 7)
    G02249630Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WRITE CONFIGURATION" on "CONFIGURATION" screen.
    8. Fig 7: Identifying Consult-II (6 Of 7)
    G02249631Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch YES".

    For canceling, touch "NO".

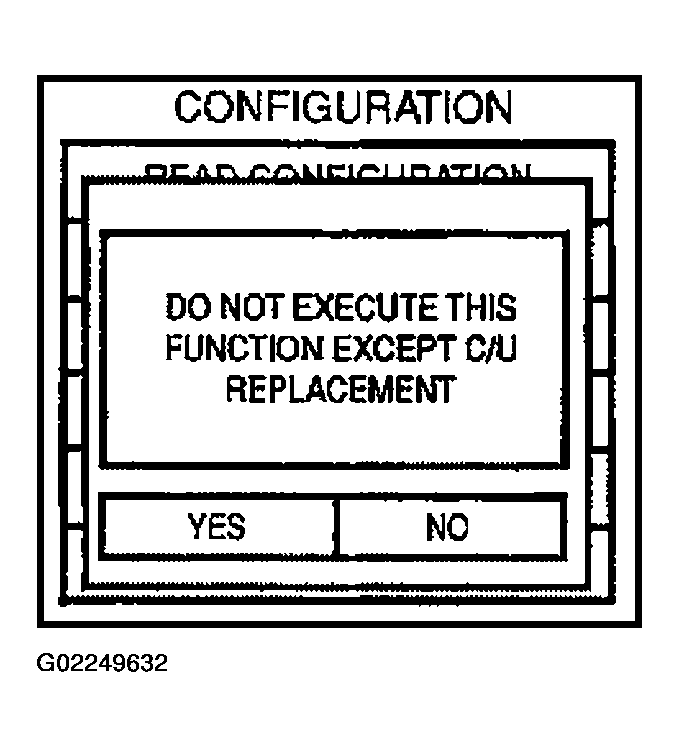

    9. Fig 8: Identifying Consult-II (7 Of 7)
    G02249632Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Using the following flow chart, identify the correct model and configuration list. Confirm and/or change setting value for each item according to the configuration list.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION in GI section.

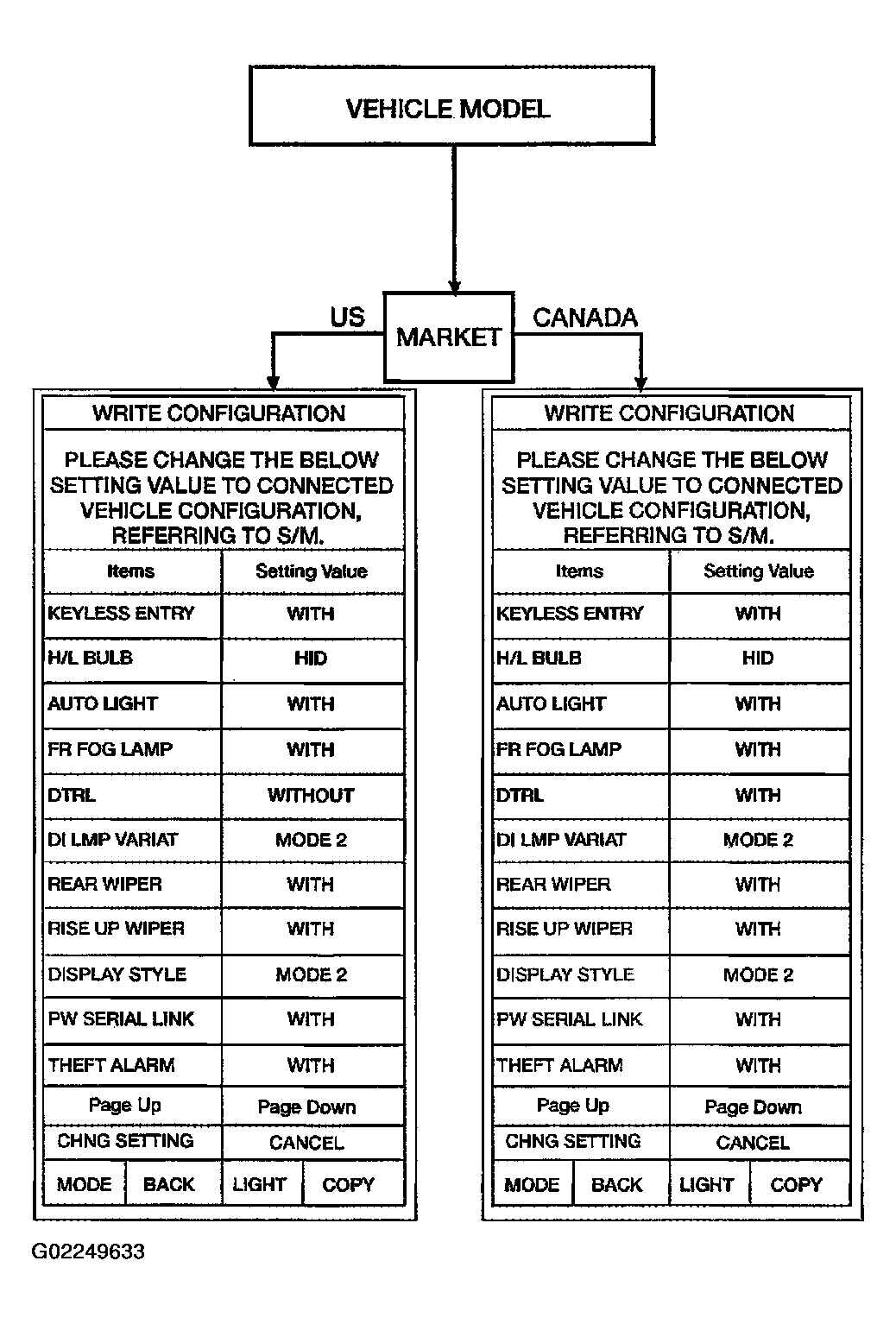

    10. Fig 9: Vehicle Model Variation Chart
    G02249633Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
    CAUTION: Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.
    If not, configuration which is set automatically by selecting vehicle model cannot be memorized.
  11. Touch "OK" on "WRITE CONFIGURATION" screen. If "CANCEL" is touched, it will return to previous screen.

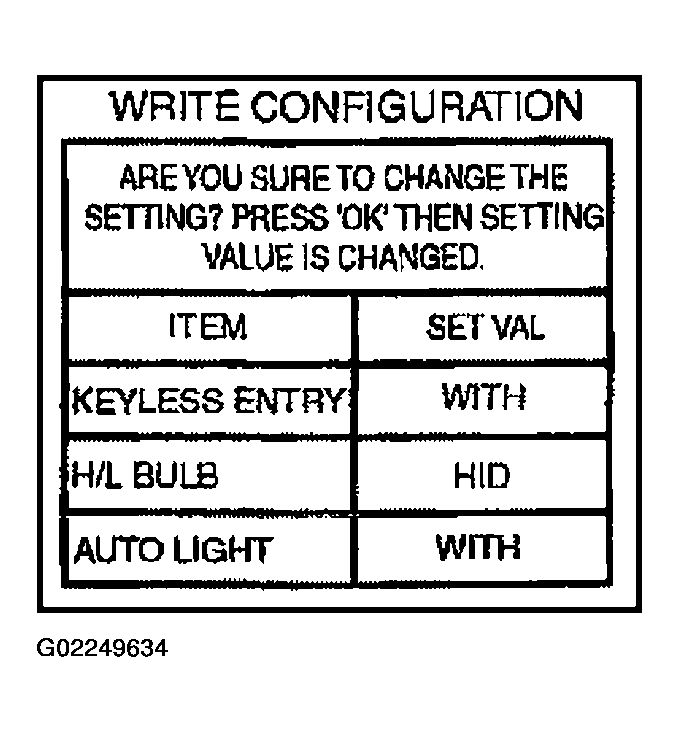

    12. Fig 10: Identifying Write Configuration (1 Of 4)
    G02249634Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Wait until the next screen during setting.
    13. Fig 11: Identifying Write Configuration (2 Of 4)
    G02249635Courtesy of NISSAN MOTOR CO., U.S.A.
  13. WRITE CONFIGURATION results are printed out automatically. Confirm "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with applicable configuration list shown in step 9.

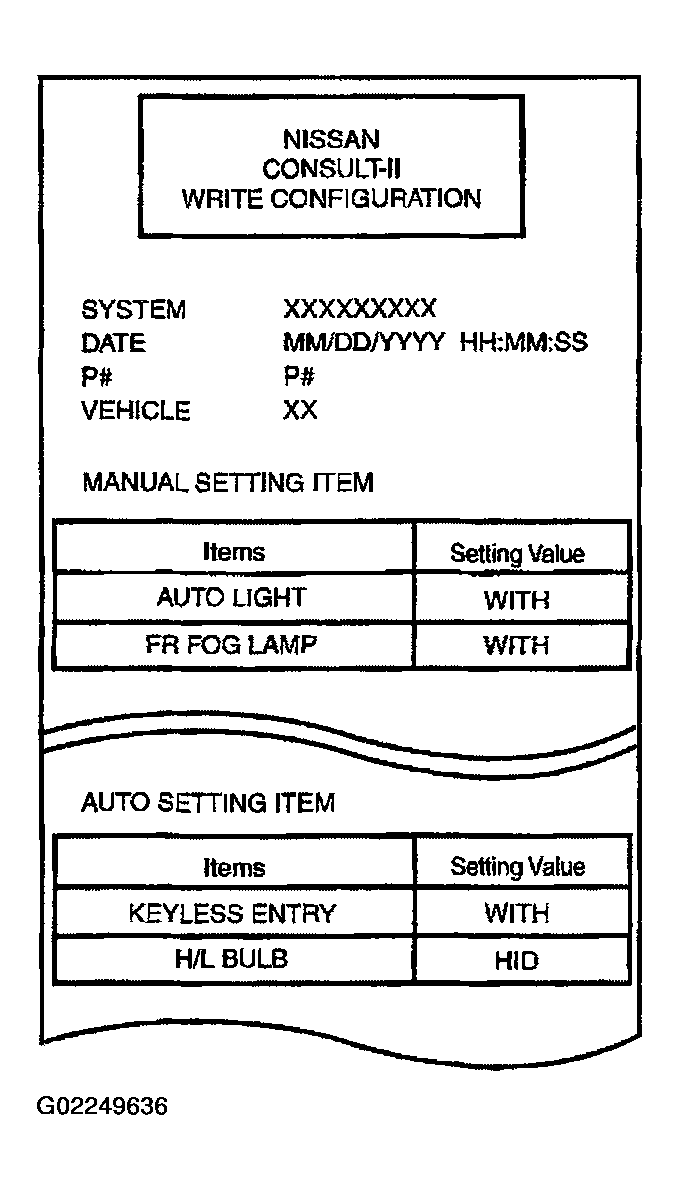

    14. Fig 12: Identifying Write Configuration (3 Of 4)
    G02249636Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.

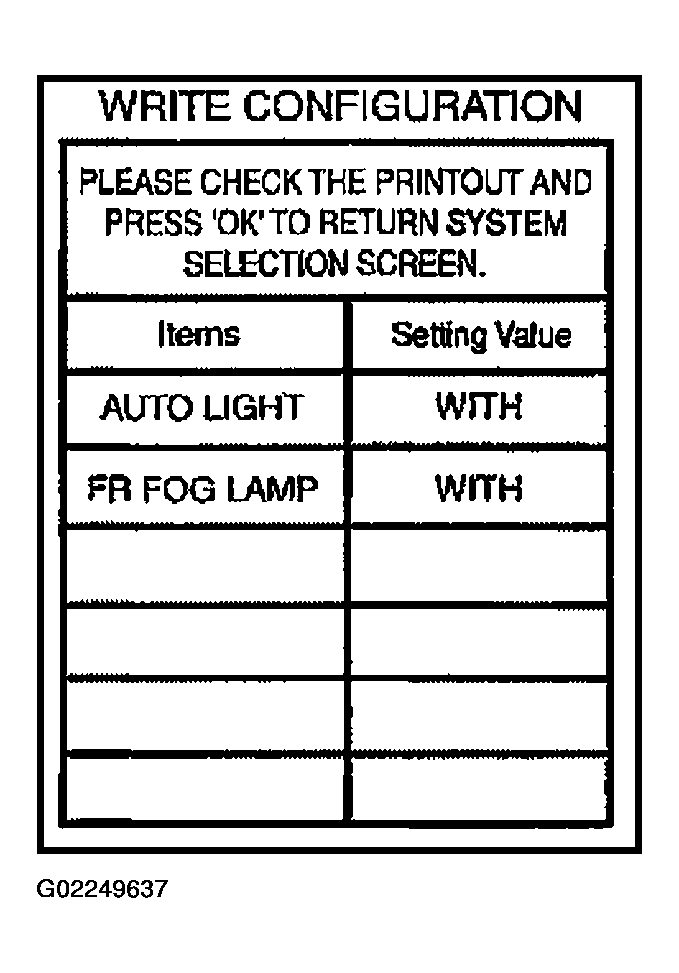

Fig 13: Identifying Write Configuration (4 Of 4)
G02249637Courtesy of NISSAN MOTOR CO., U.S.A.
