Operation Procedure

  1. Touch "BCM" on "SELECT TEST ITEM" screen.
    2. Fig 1: Select Test Item Display
    G02249610Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "WORK SUPPORT" on "SELECT DIAG MODE" screen.
  3. Touch item on "SELECT WORK ITEM" screen.
  4. Touch "START".
  5. Touch "CHANGE SET".
  6. The setting will be changed and "RESETTING COMPLETED" will be displayed.
  7. Touch "END".

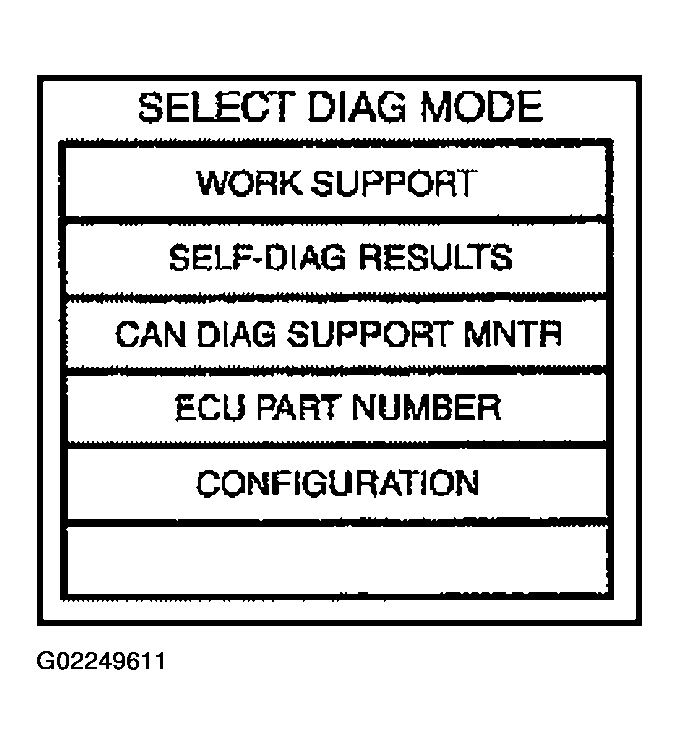

Fig 2: Select Diag Mode Display
G02249611Courtesy of NISSAN MOTOR CO., U.S.A.
