Switch Operation

The system is operated by a master ON/OFF switch and four control switches, all mounted on the steering wheel.

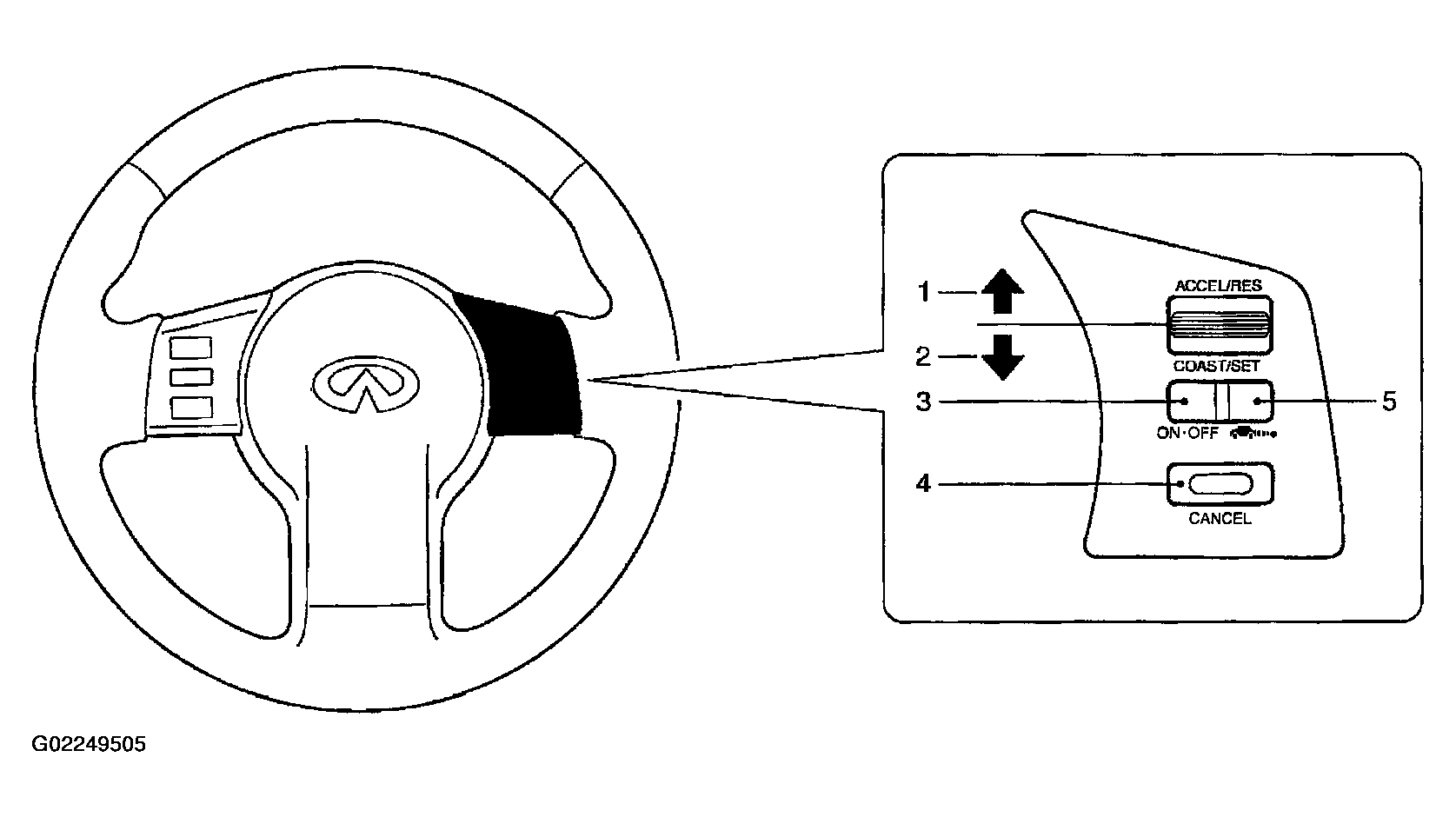

Fig 1: Switch Operation (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

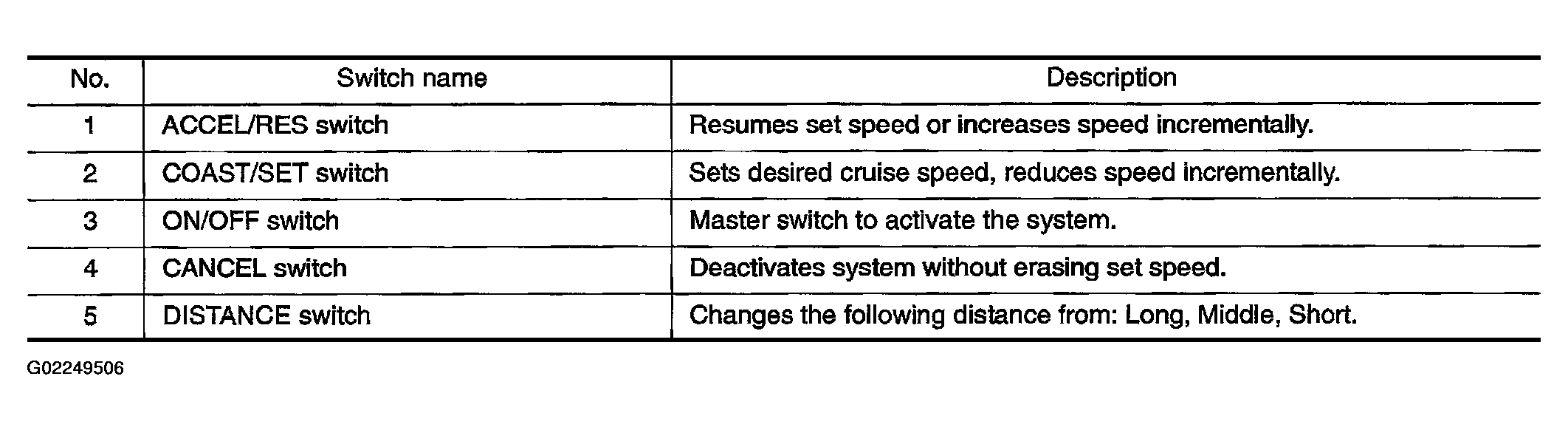

Fig 2: Switch Operation (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
